Specifications
Brand Name :
HENGFENGYOU
Model Number :
sf6
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
200-20000/piece
Payment Terms :
T/T
Supply Ability :
5000 piece/year
Delivery Time :
30 days
Packaging Details :
wooden case
Type :
Sealed
Standard :
High Voltage
Feature :
Practical and durable
Quality :
High quality
Rated bus current :
630 (A)
Rated voltage :
12 (kV)
Rated frequency :
50 (Hz)
Structure :
Fixed
Description

Ring network cabinet 10kv sf6 gas insulated one-in-two-out switchgear high-voltage switchgear inflatable cabinet

Ring network cabinet 10kv sf6 gas insulated one-in-two-out switchgear high-voltage switchgear inflatable cabinet

Structure Description:

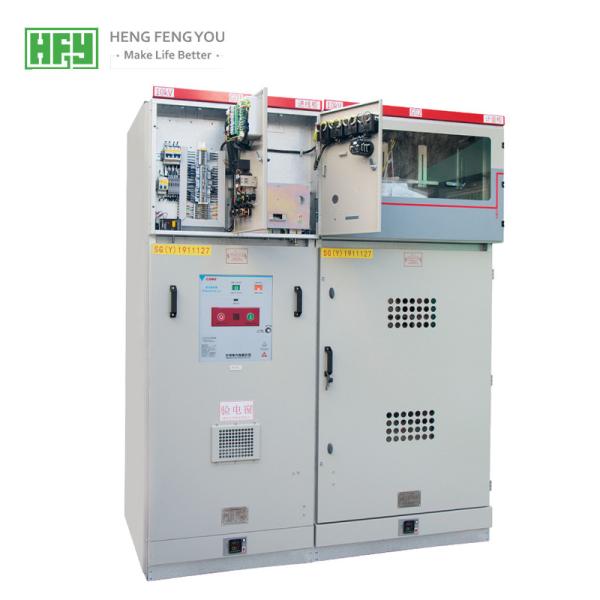

The inflatable ring network cabinet is suitable for 12kV power system, which is mainly used for power supply of ring network, automatic isolation of fault area and line segment in distribution network.Only the upper power distribution automation terminal equipment (FTU/RTU) and communication device are equipped in the ring network cabinet to communicate with the control center of the power distribution automation system, and it can measure the voltage and current of the line and monitor the working state of each switch.
The ring network cabinet seals all switch equipment in a closed stainless steel box filled with SF6, and there is no exposed live body outside. It is a fully enclosed and fully insulated switch equipment, which is not affected by the external environment and runs safely and reliably.The ring network cabinet is divided into straight through cabinet, circuit breaker cabinet, load switch cabinet, combination electrical cabinet, contact switch cabinet, metering cabinet and other standard units can be flexibly combined to achieve multiple schemes.

Switchgear Structure

1. Stainless steel metal shell, filled with SF6 gas as insulation medium, full insulation, maintenance free;
2. It has obvious visual break point;
3. Reliable chain and safe operation.

Ring network cabinet 10kv sf6 gas insulated one-in-two-out switchgear high-voltage switchgear inflatable cabinet

The Specification

ITEM UNIT XGN15-12(F)/630-20 XGN15-12(F.R)/T125-31.5
Rated voltage KV 12 12
Rated current A 630 125
Rated frequency Hz 50 50
Rated frequence withstand voltage KV 42/48 42/48
Rated impulse withstand voltage KV 75/85 75/85
Rated mainly acnive load breaking current A 630
Rated closed-loop distribution circuit current A 630
Rated short-circuit making current(peak) KA 50 80
Rated peak withstand current KA 50 50
Rated short-time withstand current KA 20 20
Rated duration of short circuit load break switch S 4 4
Rated SF6 gas pressure(20ºC gauge) MPa 0.04 0.04
Loop resistance μΩ <=200 <=400
Mechanical endurance load break switch/
earthing switch		 KA 5000/3000 5000/3000
Rated short-circuit breaking current KA 20/50 31.5/50
Rated transfer current A 1750
Degree of protection IP4X IP4X


Our Services
We have established strict working procedures and standards in the development, production, sales and after-sales of electrical products, so as to provide customers with first-class products and the best service.
1. Our electrical engineer has more than 10 years of working experience
2.Our workshop workers are all skilled industrial workers who have received three months 'pre-job training
3. Our sales team has been extensively trained by management consultants to provide professional solutions for customers
4. Our technical team can provide customers with 24-hour technical support world wide
5. Our customer service team ensures that orders are delivered on time.

Pre-sale service:
1.ISO certified excellent Manufacturer
2. Third-party authoritative certifications: SGS, CE, CB, CNAS, CQC, CCC, etc
3. Flexible payment: T/T, LC, O/A
4. Sufficient inventory, fast delivery time and long validity of the price
5. The whole process of picture tracking can be realized in production and transportation
6. Experienced professional sales team and a strong technical team
7. Sincerely invite customers to visit the company for guidance

After-sales service:
1. If there is any quality problem after receiving the goods, you can return the goods free of charge or ship new products
2. We provide our customers with a 2-year product warranty
3. Provide 24-hour, 365-day technical guidance worldwide
4. The VIP customers enjoy our promotional activity
