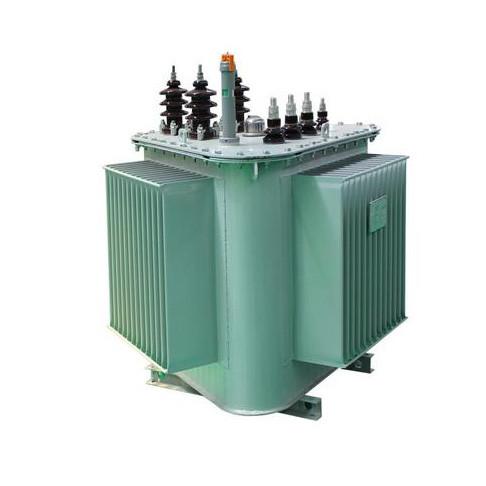

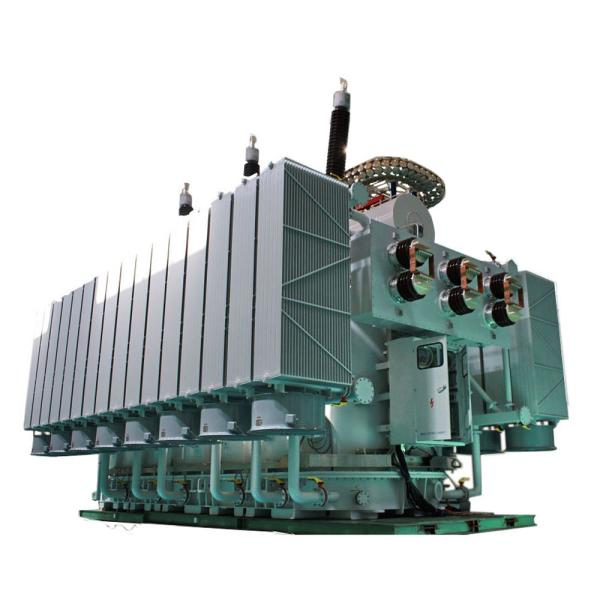

Three-Phase Oil-Immersed Medium Voltage & High Voltage Power Supply Distribution Transformer
Three-Phase Oil-Immersed Medium Voltage & High Voltage Power Supply Distribution Transformer
Three-Phase Oil-Immersed Medium Voltage & High Voltage Power Supply Distribution Transformer
Three-Phase Oil-Immersed Medium Voltage & High Voltage Power Supply Distribution Transformer
Specifications
Brand Name :
HENGFENGYOU
Model Number :
35kv
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
2000 Piece/Pieces per Month
Delivery Time :
15 DAYS
Packaging Details :
wooden case
Price :
200-200000/piece
Material :
Copper
Coil Structure :
Toroidal
Transformer type :
Oil immersed transformer
Frequency :
50Hz or 60Hz
Standard :
KPLC/REA/PEC
Description

Three-Phase Oil-Immersed Medium Voltage & High Voltage Power Supply Distribution Transformer​

Three-Phase Oil-Immersed Medium Voltage & High Voltage Power Supply Distribution Transformer

Features:

1.The iron core adopts the high- -class cold-rolled oriented silicon steel,45° three- class sloping seam, no punching,and the limb is coated with the polyurethane varnish and solidified.
2.The coil adopts OFC conductor,with reasonable structure,improving the ability to resist the sudden short circuit.
3.It is provided with effective support at winding end surface,to further improve the short citcuit resistance of winding.
4.It cancels the oil tank,the winggs of ripple oil tank take the place of oil tube as the cooling element,and can expand and contract with the oil volume of transformer the transformer oil is isolated with the air,to prevent and alleviate the oil deterioration and insulation dampness, improve the operation reliability,in addition,it is free maintenance under normal operation

KVA Voltage VECTOR GROUP LOSSES No-Load Current Weight(kg) Overall dimension (mm)
H.V(KV) L.V(KV) No-Load Loss Load Loss Oil Weight Total Weight L W H
20








6
6.3
10
10.5
11
13.2









380
400
415
433










YynO Dyn11 Yzn11		 90 530 2.3 55 230 720 440 855
30 100 600 2.1 75 305 750 500 990
50 130 870 2.0 80 405 800 480 1030
63 150 1040 1.9 95 455 830 615 1060
80 180 1250 1.9 105 510 840 580 1115
100 200 1500 1.8 120 530 890 645 1145
125 240 1800 1.7 130 670 910 600 1185
160 280 2200 1.6 140 810 910 700 1280
200 340 2600 1.5 160 890 1000 760 1240
250 400 3050 1.4 175 1020 1285 730 1290
315 480 3650 1.4 185 1170 1280 740 1385
400 570 4300 1.3 215 1410 1310 750 1432
500 680 5100 1.2 260 1645 1365 765 1510
630 810 6200 1.1 310 2070 1485 815 1615
800 980 7500 1.0 370 2445 1640 930 1590
1000 1150 10300 1.0 425 2800 1860 1120 1630
1250 1360 12000 0.9 480 3320 1860 1120 1830
1600 1640 14500 0.8 550 4175 1975 1175 1900

Three-Phase Oil-Immersed Medium Voltage & High Voltage Power Supply Distribution Transformer

Typical test values and performances are performed in the painting lab on steel plates during the whole painting process in order to confirm the following:
• Minimum paint thickness film (ISO 2808): 70µm
• Specular gloss factor at 60 Deg (ISO 2813): 90 +/- 5%
• Falling weight test (ISO 6272): 1Kg/050cm
• Erichsen cupping test (ISO 1520): 08mm
• Scratch test (Adhesion ISO 2409): 0
• Bend Test (cylindrical mandrel ISO 1519): 3,0mm
• Salt spray (Fog) test (ISO 7253): Over 1000 Hours

Three-Phase Oil-Immersed Medium Voltage & High Voltage Power Supply Distribution Transformer
