Low Voltage Switchgear Cabinet / High-Tension Switch Cabinet / Generator Integrated Protection Panel Switchgear
Low Voltage Switchgear Cabinet / High-Tension Switch Cabinet / Generator Integrated Protection Panel Switchgear
Low Voltage Switchgear Cabinet / High-Tension Switch Cabinet / Generator Integrated Protection Panel Switchgear
Low Voltage Switchgear Cabinet / High-Tension Switch Cabinet / Generator Integrated Protection Panel Switchgear
Specifications
Brand Name :
HENGFENGYOU
Model Number :
GGD. GCS
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
200-20000/piece
Payment Terms :
LC T/T
Supply Ability :
5000 piece/year
Delivery Time :
30 days
Packaging Details :
wooden case
Type :
metal clad
Rated frequency :
AC 50Hz (60Hz)
Rated current(A) :
630, 1250, 1600, 2500, 3510, 4000
Customized :
OEM/ODM order acceptable
Application :
Power transmission or distribution
Product Name :
Electrical kyn28 12 switchgear 11kv
Rated Voltage :
3KV, 7.2KV, 12KV optional
Comply standards :
DL/T404, IEC298,GB3906
Description

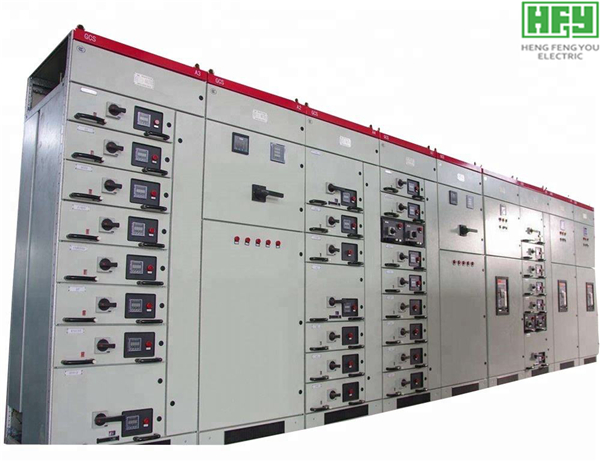

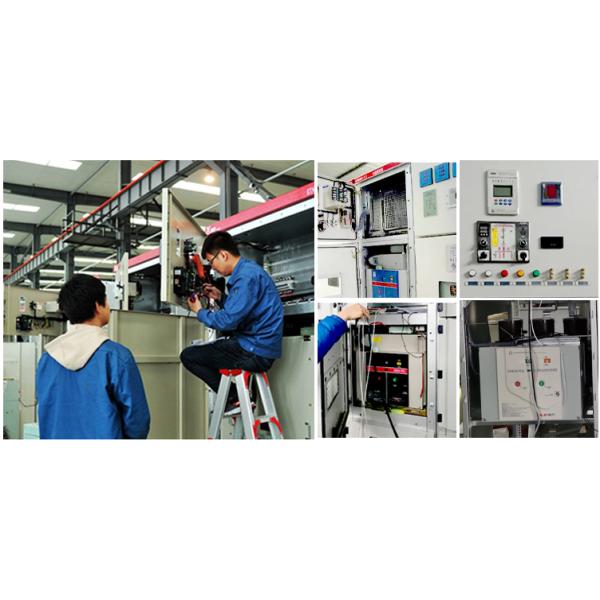

Low Voltage Switchgear Cabinet / High-Tension Switch Cabinet / Generator Integrated Protection Panel Switchgear

Low Voltage Switchgear Cabinet / High-Tension Switch Cabinet / Generator Integrated Protection Panel Switchgear

1.GCS type LV low voltage distribution cabinet is suitable for three-phase AC 50HZ, max voltage 380V, rated current to 3150Apower distribution system , it is widely used in power plants, substations, industrial and mining enterprises etc energy consumer and using for power, lighting and distribution equipment for electrical energy conversion, distribution and control purposes.

2.Protection grade is IP30. IP20-IP40 could be optional acc to the requirements of service condition.

3.Good appearance. easy assembly and disassembly.

The device is suitable for power conversion, distribution and control of power, power distribution and motor control centers, capacitor compensation, etc. of power plants, substations, petrochemical departments, factories and mines, high-rise buildings and other low-voltage power distribution systems.

When used in low-voltage control centers and motor control centers in large-scale power plants, large-scale petrochemical industries, etc., it can meet the special needs of computer interfaces. The device is developed according to the requirements of the supervisors of the Ministry of Electric Power, the majority of power users and the design department, in order to meet the needs of the evolving power market capacity expansion, computer interface, centralized power control, convenient installation and maintenance, and shortening the processing time of accidents. The device has the characteristics of good dynamic thermal stability, flexible electrical scheme, convenient combination, strong seriality, novel structure and high protection level.
The device complies with IEC439-1, GB7251, ZBK36001 and other standards.

Environmental conditions

When working normally,the detailed climate environment should be referenced to provisions of IEC60439-1,EN60439,Part 500 in VDE0660.And the ambient humidity is 50% in 40℃.


The conditions of the indoor installation of the switchgear shall meet the requirements of the corresponding standards. In the case of condensation, ventilation or heating lamp will be used to prevent condensation.


If the switchgear is installed in the areas whose altitude is above 2000 meters, the equipment should be operated with reduced capacity accordingly.

Item parameter
Rated insulation voltage
Rated working voltage Primary loop AC 660 (1000) V
AC 380 (660) V
Auxiliary circuit AC 380, 220, 24 V
DC 220, 110 V
Rated frequency 50 (60) Hz
Rated current of horizontal bus < 4000 A
Rated current of vertical bus 1000 A
Rated peak tolerant current 105 (176) KA
Rated short-term tolerant current (1s) 50 (80) KA
Power frequency testing voltage Main loop to the ground 2500 V/min
Auxiliary circuit to the ground 2000 V/s
Protection grade IP3x

Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
