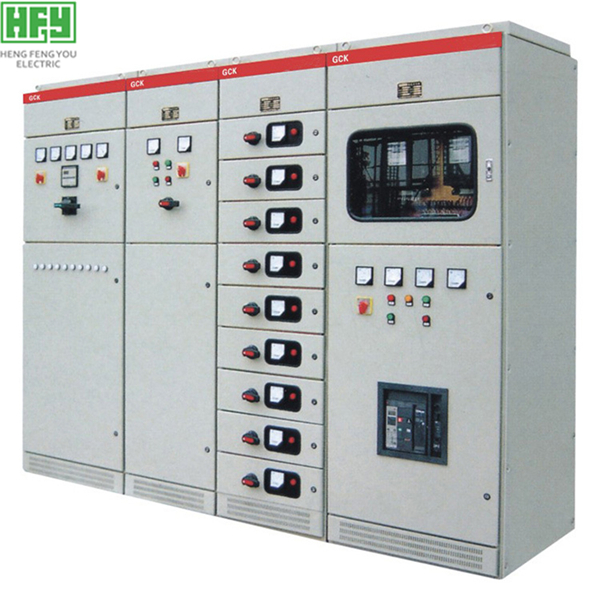

China Manufacturers Supply Low Voltage Switchgear Electrical Knock Down Cabinet / Distribution Box / Switchgear

Products Description

Houndreds types product as like GCK low-voltage withdrawable switchgear (PC) by the power distribution center tank and motor control center (MCC) of two parts, is suitable for power plant and substation industrial and mining enterprises and other power users as ac 50 hz, maximum voltage to 660 v, the maximum working current - 3150 - a power distribution system, as power distribution, motor control and lighting power distribution equipment such as electric energy conversion distribution control.

Houndreds types product as like GCK low-voltage withdrawable switchgear with high breaking capacity, good thermal stability, advanced structure, reasonable, electrical scheme of practical series, strong commonality, various solutions unit in any combination, a cabinet put oneself in another's position to accommodate the circuit is more, save area, beautiful appearance, high protection grade, safe and reliable, and convenient maintenance.

This product conforms to IEC439 standard, also conforms to gb7251.1-2005 (national standard of low-voltage switchgear assembly) and zbk36001-89 "professional standard of low-voltage draw-out switchgear assembly".

Conditions of use

1.The elevation shall not exceed 2000m;

2.The ambient air temperature is not higher than +40℃, and the average temperature within 24 hours is not higher than +35℃, the ambient air temperature is not lower than -5℃;

3.Atmospheric conditions the air is clean, the relative humidity does not exceed 50% when the temperature is +40℃, and the relatively high relative humidity is allowed when the temperature is relatively low.

For example, at +20℃, it is 90%;

4.No fire, explosion risk, serious pollution, chemical corrosion and violent vibration of the place;

5.The inclination with the vertical plane shall not exceed 5 degrees;

6.This product is suitable for the following temperature transportation and storage: -25℃~55℃, in a short time (no more than 24h) no more than +70℃.
