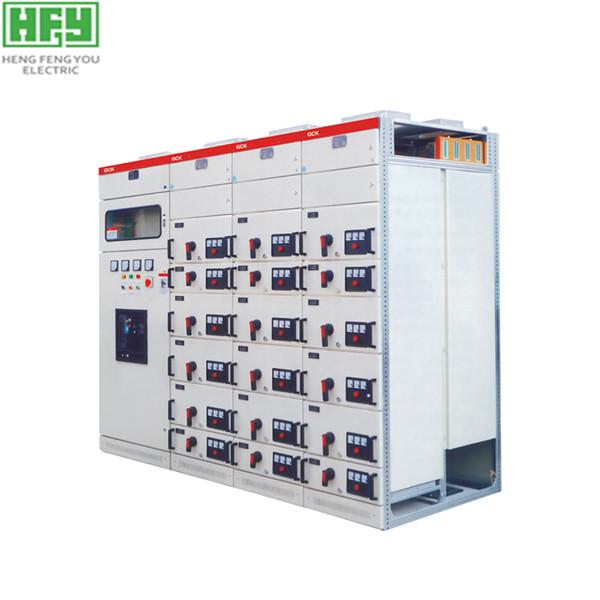

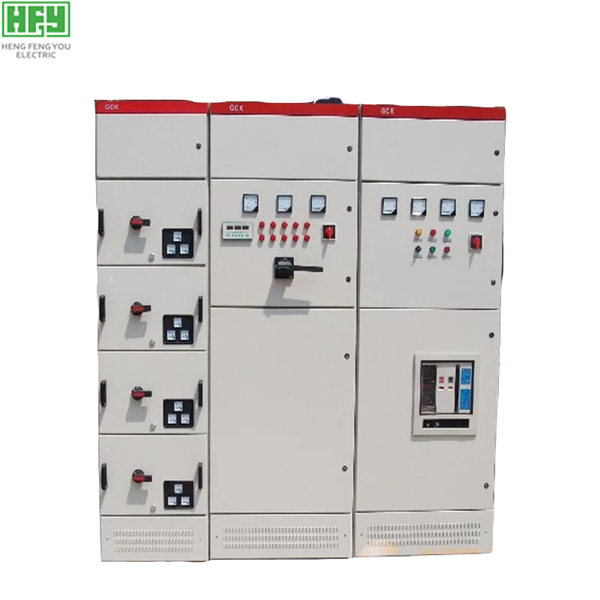

Indoor Installation Cubicle Switchboard Metal Enclosed Switchgear Low Voltage Distribution Cabinet Switchgear
Indoor Installation Cubicle Switchboard Metal Enclosed Switchgear Low Voltage Distribution Cabinet Switchgear
Indoor Installation Cubicle Switchboard Metal Enclosed Switchgear Low Voltage Distribution Cabinet Switchgear
Indoor Installation Cubicle Switchboard Metal Enclosed Switchgear Low Voltage Distribution Cabinet Switchgear
Specifications
Brand Name :
HENGFENGYOU
Model Number :
GGD
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
200-20000/piece
Payment Terms :
LC T/T
Supply Ability :
5000 piece/year
Delivery Time :
30 days
Packaging Details :
wooden case
Type :
metal clad
Rated frequency :
AC 50Hz (60Hz)
Rated current(A) :
630, 1250, 1600, 2500, 3510, 4000
Customized :
OEM/ODM order acceptable
Application :
Power transmission or distribution
Product Name :
Electrical kyn28 12 switchgear 11kv
Rated Voltage :
3KV, 7.2KV, 12KV optional
Comply standards :
DL/T404, IEC298,GB3906
Description

Low voltage switchgear switch cabinet generator low voltage distribution power panel with low price

Indoor Installation Cubicle Switchboard Metal Enclosed Switchgear Low Voltage Distribution Cabinet Switchgear


Products Description
1. This low-voltage withdrawable switchgear device is the latest patented technology products in our company, suitable for the power supply system with three-phase AC 50-60HZ, rated working voltage(0- 660V) for the use of power generating, transmitting, distributing, power conversing and power consumption equipment control.

2. Our series of prefabricated substation is the combination of the HV electrical apparatus, transformer, and low voltage transformer equipments and therefore is used in the high-rise buildings, residential districts, urban and rural construction, hi-tech development zone, small and medium size enterprise, mine and oil fields and the temporary construction sites to receive and distribute the power.

Series of prefabricated substation is complete set, small sized, compacted structure, running safely, easy maintenance, and mobile. And it only takes the 1/10-1/5 of the space of the same capacity of civil construction distribution, and therefore greatly reduces the construction cost. It can be used in the ring net distribution system, double power distribution system or radiator terminal distribution system. It is the new complete set equipment used for rural and urban substation construction and reformation.

Series of prefabricated substation is fully in accordance with the standard of SD320-1992 (the technology of Boxes substation) and the standard of IEC,GB/T 17467-1998 (HV/LV prefabricated substation).

Rated isolation voltage To 1000V
Rated operational voltage To 600V
Rated frequency 50 /60 Hz
Rated impact withstand voltage 8 kV
Rated voltage of auxiliary circuit AC380, 220V,DC 220V
Over voltage degree III
Pollution degree 3
Rated current 4000A
Horizontal busbar rated current 4000A
Vertival busbar rated current

2000, 1000A

Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.

Indoor Installation Cubicle Switchboard Metal Enclosed Switchgear Low Voltage Distribution Cabinet Switchgear

Working Environment

1. Indoor altitude above sea level: Maximum installation altitude: 2000m

2. Ambient air temperature: -5℃~+40℃ and the average temperature should not

exceed +35℃ in 24h

3. Relative humidity should not exceed 50% at max temperature +40℃. Higher

relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of

the temperature change, it is possible that moderate dews will produce casually.

4. No fire, explosion danger, serious pollution, chemical corrosion and severe vibration

5. Installation gradient not exceed 5°

6. This product is suitable for the following temperature transportation storage: -25℃ ~+55℃ 24h, in a short period of time (no more than 24hours) not more than+70℃.

Characteristics

This series of products with high breaking capacity, good dynamic stability, advanced and reasonable structure, electrical program of practical, series, strong versatility, various schemes of unit combination, a cabinet contained many circuits, save the area , beautiful appearance, high level protection, safe and reliable, convenient maintenance etc.

It accords with the standards IEC439 NEMA ICS2-322 as well as the GB7251-87 “Low voltage complete switch device ” national standards and ZBK36001-89 "low voltage withdraw type complete switch device” professional standards"

Indoor Installation Cubicle Switchboard Metal Enclosed Switchgear Low Voltage Distribution Cabinet Switchgear
