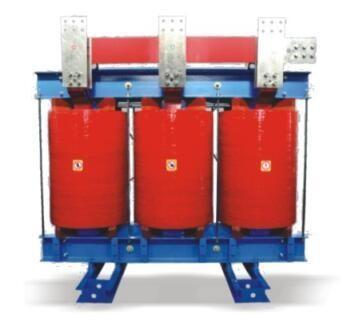

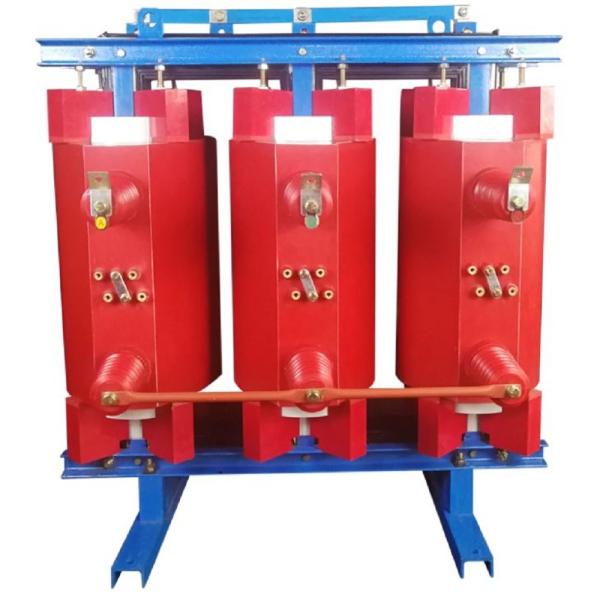

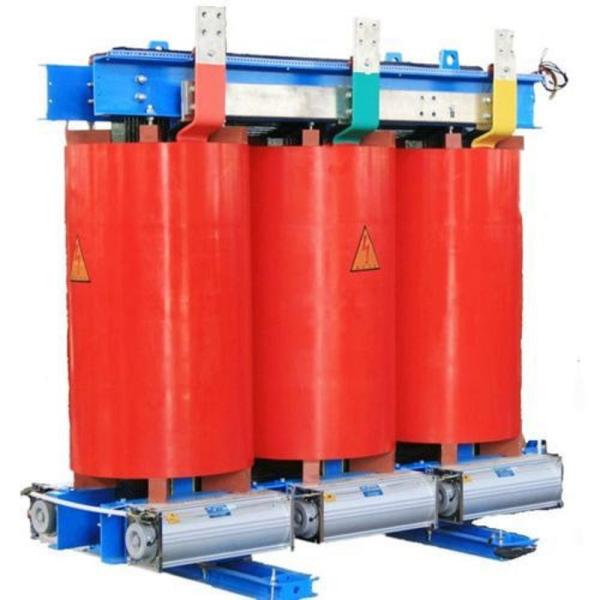

11kv 1250kVA Epoxy Resin Cast Dry-Type Transformer/Distribution Transformer
11kv 1250kVA Epoxy Resin Cast Dry-Type Transformer/Distribution Transformer
11kv 1250kVA Epoxy Resin Cast Dry-Type Transformer/Distribution Transformer
11kv 1250kVA Epoxy Resin Cast Dry-Type Transformer/Distribution Transformer
11kv 1250kVA Epoxy Resin Cast Dry-Type Transformer/Distribution Transformer
11kv 1250kVA Epoxy Resin Cast Dry-Type Transformer/Distribution Transformer
11kv 1250kVA Epoxy Resin Cast Dry-Type Transformer/Distribution Transformer
11kv 1250kVA Epoxy Resin Cast Dry-Type Transformer/Distribution Transformer
Specifications
Brand Name :
HENGFENGYOU
Model Number :
SCB10
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
200-200000/piece
Payment Terms :
LC T/T
Supply Ability :
5000 pieces/year
Delivery Time :
15 DAYS
Packaging Details :
wooden case
Rated L. V :
0.4kv or Customized
Capacity :
50~2500kVA or Customized
Product Type :
Dry Type
Winding :
Cooper Winding
Enclosure :
IP20/IP23
Reference Standards :
IEC60076
Rated H. V. :
35kv or Customized
Core Material :
Silicon Lamination/Amorphous Alloys
Description

11kv 1250kVA Epoxy Resin Cast Dry-Type Transformer/Distribution Transformer

10KV 10~2500KVA Cast resin Dry Type distribution transformer
11kv 1250kVA Epoxy Resin Cast Dry-Type Transformer/Distribution Transformer

S11-M series hermetically sealed oil immersed power transformer has the advantage of low loss, low noise and high efficiency, which can obtain good energy saving effect and reduce pollution.Compared with ordinary oil immersed transformer, hermetically sealed transformers don 't need oil coservator, oil volume is automatically regulated and compensated by elastic corrugated sheet of corrugated tank.Transformer oil is kept out of air, which can effectively prevet deterioration and insulation aging of oil, ad enhance operation reliability.
Advantage
1. Low loss, low noise, low partial discharge.
2. Strong anti-short circuit capability and high anti-lightning impact level.
3. Excellent moisture resistance for operation at 100% relative humidity.
4. Strong overload capability for long-term operation at 150% loading.

Transformer normal service conditions

The height above the sea level is below 1000m;
Highest air temperature +40ºC;
Highest daily average air temperature+30ºC;
Highest annual average air temperature +20ºC;
Lowest outdoor air temperature -25ºC.

Chracteristics
1. Thin resin structure that never cracks
2. Epoxy resin vacuum pressure casting process
3. Iron core model simulation analysis


11kv 1250kVA Epoxy Resin Cast Dry-Type Transformer/Distribution Transformer

TECHNICAL INDEX

RATED CAPACITY VOLTAGE COMBINATION CONNECTION GROUP LOSS (KW) NO-LOAD CURRENT SHORT-CIRCUIT IMPEDANCE WEIGHT(KG)
(KVA) HV(KV) HIGH-VOLTAGE TAPPING RANGE LV (KV) SYMBOL NO-LOAD ON-LOAD (%) (%) OIL WEIGHT GROSS WEIGHT
30 6
6.3
10
10.5
11		 5% 0.4 Dyn11
Yzn11
Yyn0		 0.13 0.63/0.60 2.3 4 75 295
50 0.17 0.91/0.87 2 88 395
63 0.2 1.09/1.04 1.9 95 420
80 0.25 1.31/1.25 1.9 103 480
100 0.29 1.58/1.50 1.8 115 540
125 0.34 1.89/1.80 1.7 130 645
160 0.4 2.31/2.20 1.6 145 740
200 0.48 2.73/2.60 1.5 175 885
250 0.56 3.20/3.05 1.4 195 1010
315 0.67 3.83/3.65 1.4 230 1205
400 0.8 4.52/4.30 1.3 255 1375
500 0.96 5.41/5.15 1.2 285 1620
630 Dyn11
Yyn0		 1.2 6.2 1.1 4.5 350 1960
800 1.4 7.5 1 405 2310
1000 1.7 10.3 1 490 2690
1250 1.95 12 0.9 550 3315
1600 2.4 14.5 0.8 625 3985

Our workshop:

11kv 1250kVA Epoxy Resin Cast Dry-Type Transformer/Distribution Transformer

OUR SERVICE:

1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
