Amorphous Metal Transformer with Oil Type and Dry Type
Amorphous Metal Transformer with Oil Type and Dry Type
Amorphous Metal Transformer with Oil Type and Dry Type
Amorphous Metal Transformer with Oil Type and Dry Type
Amorphous Metal Transformer with Oil Type and Dry Type
Amorphous Metal Transformer with Oil Type and Dry Type
Amorphous Metal Transformer with Oil Type and Dry Type
Amorphous Metal Transformer with Oil Type and Dry Type
Specifications
Brand Name :
HENGFENGYOU
Model Number :
SCB10
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
200-200000/piece
Payment Terms :
LC T/T
Supply Ability :
5000 pieces/year
Delivery Time :
15 DAYS
Packaging Details :
wooden case
Rated L. V :
0.4kv or Customized
Capacity :
50~2500kVA or Customized
Product Type :
Dry Type
Winding :
Cooper Winding
Enclosure :
IP20/IP23
Reference Standards :
IEC60076
Rated H. V. :
35kv or Customized
Core Material :
Silicon Lamination/Amorphous Alloys
Description

Amorphous Metal Transformer with Oil Type and Dry Type

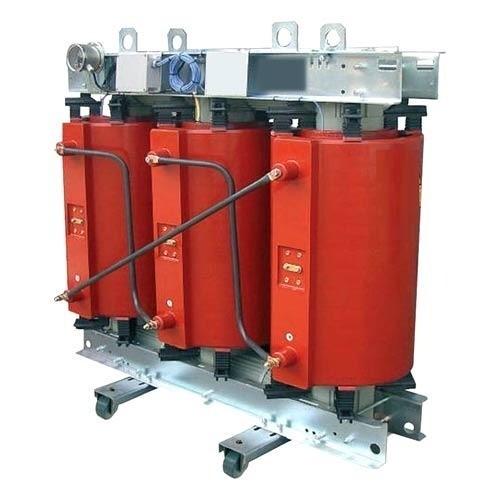

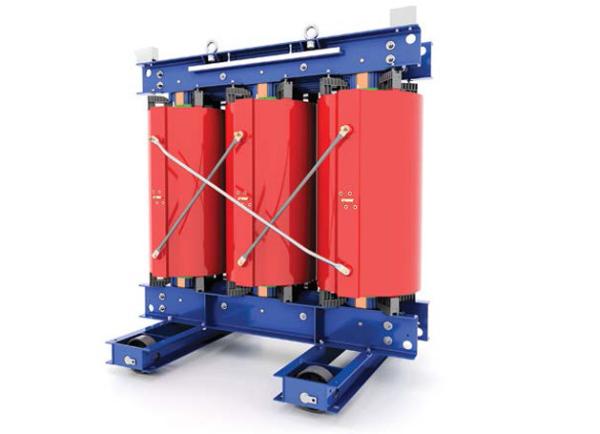

10KV 10~2500KVA Cast resin Dry Type distribution transformer
Amorphous Metal Transformer with Oil Type and Dry Type


SC(B)10 series three phase resin-cast dry-type distribution transformer are in conformity with standard of IEC76,with features of low loss, compact and light weight, low noise level,clamp-proof,anti-fouling,high mechanical strength, flame resisting, strong overload ability and low partial discharge quality,they are application to power transmission and distribution system,hotel,restaurant,commercial building,stadiums,chemical plants,stations,aiports,offshore drilling platforms,especially to heavy load centers and places with special fire protection requirements

Advantage
1. Low loss, low noise, low partial discharge.
2. Strong anti-short circuit capability and high anti-lightning impact level.
3. Excellent moisture resistance for operation at 100% relative humidity.
4. Strong overload capability for long-term operation at 150% loading.

OUR SERVICE:
1,Quick response in before sales period help you got order
2,Excellent service in production time let you know each step we made
3,Reliable quality solve you aftersale headache
4,Long period quality waranty ensure you can buy without hesitate



Chracteristics
1. Thin resin structure that never cracks
2. Epoxy resin vacuum pressure casting process
3. Iron core model simulation analysis


Amorphous Metal Transformer with Oil Type and Dry Type

TECHNICAL INDEX

RATED CAPACITY VOLTAGE COMBINATION CONNECTION GROUP LOSS (KW) NO-LOAD CURRENT SHORT-CIRCUIT IMPEDANCE WEIGHT(KG)
(KVA) HV(KV) HIGH-VOLTAGE TAPPING RANGE LV (KV) SYMBOL NO-LOAD ON-LOAD (%) (%) OIL WEIGHT GROSS WEIGHT
30 6
6.3
10
10.5
11		 5% 0.4 Dyn11
Yzn11
Yyn0		 0.13 0.63/0.60 2.3 4 75 295
50 0.17 0.91/0.87 2 88 395
63 0.2 1.09/1.04 1.9 95 420
80 0.25 1.31/1.25 1.9 103 480
100 0.29 1.58/1.50 1.8 115 540
125 0.34 1.89/1.80 1.7 130 645
160 0.4 2.31/2.20 1.6 145 740
200 0.48 2.73/2.60 1.5 175 885
250 0.56 3.20/3.05 1.4 195 1010
315 0.67 3.83/3.65 1.4 230 1205
400 0.8 4.52/4.30 1.3 255 1375
500 0.96 5.41/5.15 1.2 285 1620
630 Dyn11
Yyn0		 1.2 6.2 1.1 4.5 350 1960
800 1.4 7.5 1 405 2310
1000 1.7 10.3 1 490 2690
1250 1.95 12 0.9 550 3315
1600 2.4 14.5 0.8 625 3985

Our workshop:

Amorphous Metal Transformer with Oil Type and Dry Type

OUR SERVICE:

1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
