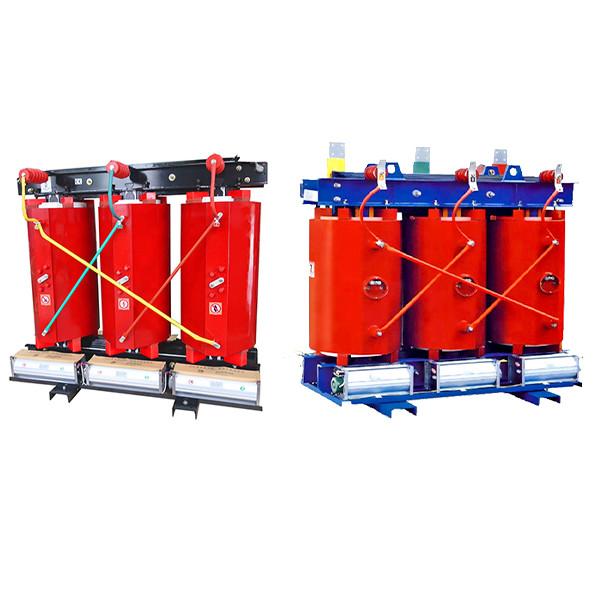

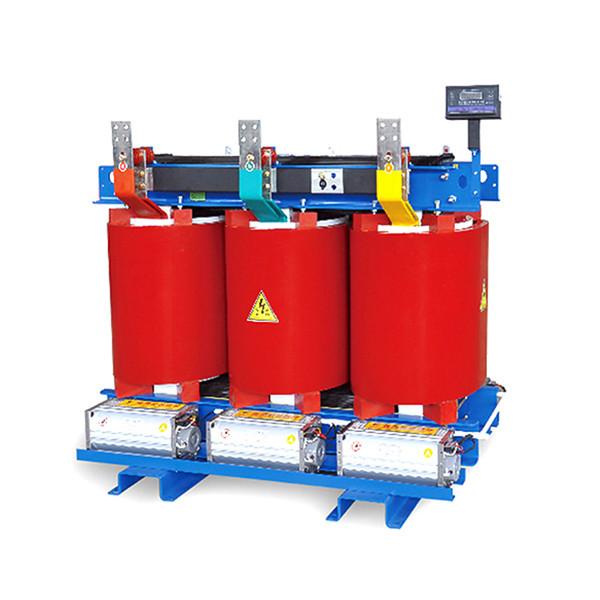

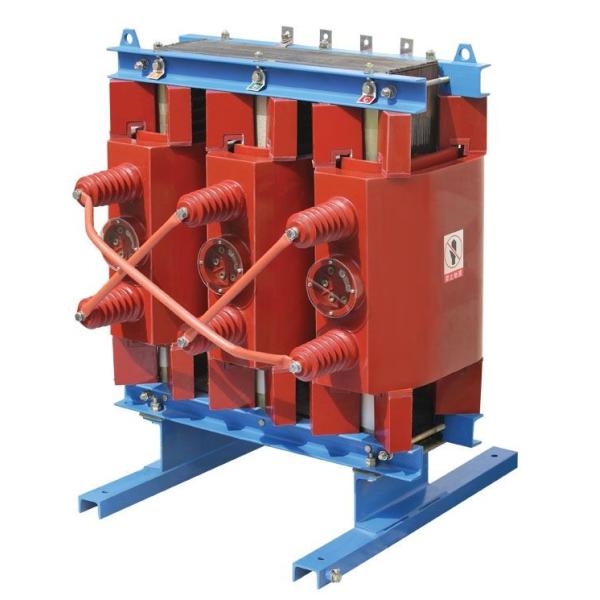

(SC(B)-35) 35kv Dry-Type Transformer
(SC(B)-35) 35kv Dry-Type Transformer
(SC(B)-35) 35kv Dry-Type Transformer
(SC(B)-35) 35kv Dry-Type Transformer
(SC(B)-35) 35kv Dry-Type Transformer
(SC(B)-35) 35kv Dry-Type Transformer
(SC(B)-35) 35kv Dry-Type Transformer
(SC(B)-35) 35kv Dry-Type Transformer
Specifications
Brand Name :
HENGFENGYOU
Model Number :
SCB series
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
200-200000/piece
Payment Terms :
LC T/T
Supply Ability :
5000 pieces/year
Delivery Time :
15 DAYS
Packaging Details :
wooden case package
Name :
Power Distribution Transformer
Feature :
Superior performance, product safety, reliability, environmental protection
Brand :
Power Distribution Transformer
Standard :
CE,ISO,UL,SABS,3C， IEC60076-11 ISO9001 ISO14001 KEMA CE
Model Number: :
Dry Type Transformer
Description

(SC(B)-35) 35kv Dry-Type Transformer


1.Product Description

Our SC(B) series epoxy resin cast dry transformer is cast under vacuum with thin inssulating bands automatically. The core is made of high-permeable grain-orientated silicon sheet and cast with imported epoxy resin. Thanks to advanced technology, quality raw materials, scientific management, and perfect inspection means, our products have the following features: The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble and has low local discharge, high reliability, and long service life. The high and low-voltage systems are cast under vacuum, thus the coil will not absorb moisture, the clamps of core are subjected to corrosion-resistant treatment and it may run under high temperature or orther serious environments. Flame retardancy, explosion-proof and no environmental contamination. The insulating materials in the coil such as glass fiber are self-extinguishing and they will not generate toxic or harmful gas under high

The standard procedure for making wooden case is as follows:

♦ Receipt of information required for the type of goods to be wood barrel customers.

♦ Measure and create original designs for customers.

♦ Select the type of wood suitable for the requirements of the goods.

♦ Determine the delivery time.

♦ Check the wood barrel technique.

♦ Handover confirmation.

Rated power (kVA) High voltage
(kV)		 H.V.Tap
(kVA)		 Low
Voltage
(kV)		 Vector group
Short circuit impedance		 No-load loss
(W)		 On-load loss
(W)		 No-load
Current
(%)		 Insulation
class		 Noise
(dB)
SC(B)9 SC(B)10 SC(B)9 SC(B)10
30 6
6.3
10
10.5
11		 ±5%

+2×2.5%		 0.4 Yyn0
Dyn11		 4 220 1901 750 710 2.3 F 40
50 310 270 1060 1000 2.2 40
80 420 370 1460 1380 1.7 40
100 450 400 1670 1570 1.7 40
125 530 470 1960 1850 1.5 41
160 610 540 2250 2130 1.3 42
200 700 620 2680 2530 1.3 42
250 810 720 2920 2760 1.1 44
315 990 880 3670 3470 1.1 46
400 1100 980 4220 3990 1.1 46
500 1310 1160 5170 4880 0.9 47
630 1510 1340 6220 5880 0.9 47
630 6 1460 1300 6310 5960 0.9 47
800 1710 1520 7360 6960 0.9 48
1000 1990 1770 8610 8130 0.9 48
1250 2350 2090 10260 9690 0.9 49
1600 2760 2450 12400 11730 0.9 50
2000 3400 3050 15300 14450 0.7 52
2500 4000 3600 18180 17170 0.7 55

(SC(B)-35) 35kv Dry-Type Transformer

(SC(B)-35) 35kv Dry-Type Transformer(SC(B)-35) 35kv Dry-Type Transformer
