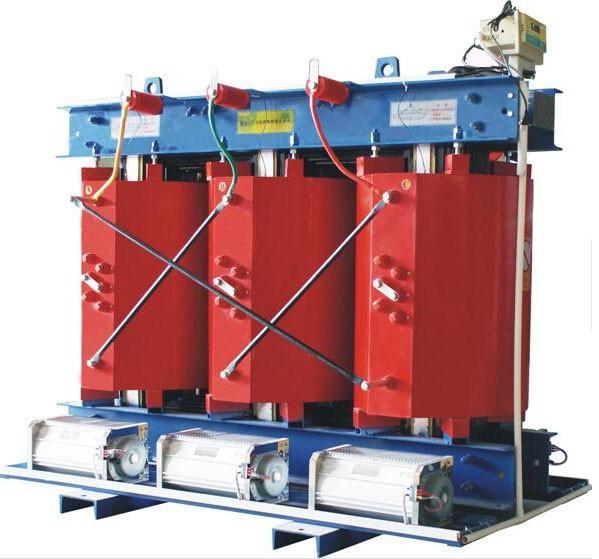

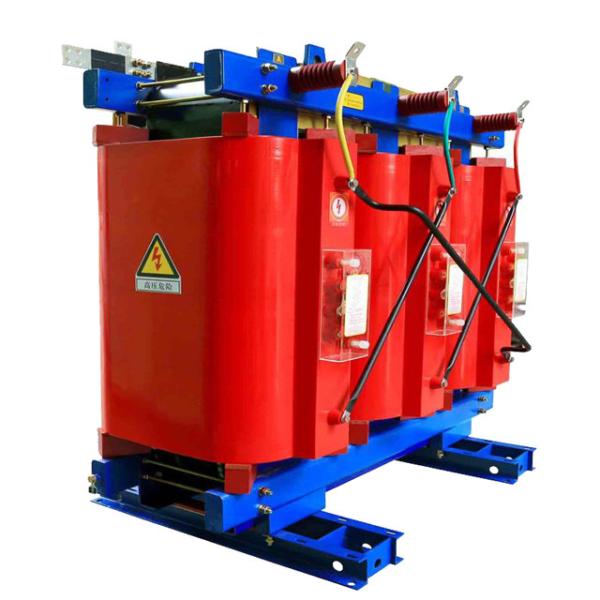

11kV Open Ventilated Dry Type Transformer
11kV Open Ventilated Dry Type Transformer
11kV Open Ventilated Dry Type Transformer
11kV Open Ventilated Dry Type Transformer
11kV Open Ventilated Dry Type Transformer
11kV Open Ventilated Dry Type Transformer
11kV Open Ventilated Dry Type Transformer
11kV Open Ventilated Dry Type Transformer
Specifications
Brand Name :
HENGFENGYOU
Model Number :
SCB series
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
200-200000/piece
Payment Terms :
LC T/T
Supply Ability :
5000 pieces/year
Delivery Time :
15 DAYS
Packaging Details :
wooden case package
Name :
Power Distribution Transformer
Feature :
Superior performance, product safety, reliability, environmental protection
Brand :
Power Distribution Transformer
Standard :
CE,ISO,UL,SABS,3C， IEC60076-11 ISO9001 ISO14001 KEMA CE
Model Number: :
Dry Type Transformer
Description

11kV VPI Open Ventilated Dry Type Transformer

The three-phase dry-type phase-shifting frequency conversion rectifier transformer is currently the dry-type transformer with the highest insulation level, and its main insulation adopts Nomex insulation system.

Executive Standard

GB 1094 Electrical Transformer IEC 60076 Electrical Transformer GB/T10228 Specification and Technical Requirements for Dry-type Power Transformers JB/T10008 6kV~500kV Power Transformer Sound Level GB/T7354 Partial Discharge Measurements
Type Meaning
S Three Phase C Solidification Forming (Epoxy Resin Cast) (Z) Load Voltage Regulation (B) Low-Voltage Foil Coil
Characteristic Code
Rated Capacity (kVA) Rated High Voltage (kV)
Normal Operating Condition Max.Temperature:+40℃ Max.Average Daily Temperature:+30℃ Max.Average Annual Temperature:+20℃ Min.Temperature:-30℃ Altitude:≤1000m
Installation:indoor,non-corrosive facturs Waveform of power voltage is close to sine wave
Insulation material operating temperature grade: H grade

11kV Open Ventilated Dry Type Transformer
