Stainless Steel Electrical Substation Box Toroidal Coil Structure IEC60076 Standard
Stainless Steel Electrical Substation Box Toroidal Coil Structure IEC60076 Standard
Stainless Steel Electrical Substation Box Toroidal Coil Structure IEC60076 Standard
Stainless Steel Electrical Substation Box Toroidal Coil Structure IEC60076 Standard
Specifications
Brand Name :
HENGFENGYOU
Model Number :
FZB-35/0.6-2000
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
LC T/T
Supply Ability :
5000 pieces/year
Delivery Time :
30 days
Packaging Details :
wooden case
Material :
stainless steel
Standard :
IEC60076
Coil Structure :
Toroidal
Usage :
POWER
Name :
American prefabricated substation
Phase :
Three
color :
customized or gray
Price :
2000-200000/piece
Description

Box Substation Zgs Solar Photovoltaic Wind Power Substation Box Substation

Substation, Prefabricated Substation, Combine

Product advantage

● Low loss, noise and temperature rise; super nameplate capacity and high load bearing; high
resistance of sudden short-circuit capacity
● Full enclosed and insulated structure, stable and reliable operation
● Flexible wiring with easy conversion, which could be both connected to the terminal
system and looped network system; more chance of power supply.
● Easy operation and maintenance; short-term production phase; low construction costs

Item Unit Parameter
HV LV Transformer
RatedVoltage KV 12 0.4 12/0.4
RatedCurrent A 125 2000
RatedFrequency Hz 50/60
RatedCapacity KVA s1250
RatedShort-timePowerFrequencyWithstandVoltage KV 42 2.5 35
RatedLightninglmpulseWithstandVoltage KV 75 8 75
RatedShortCircuitDrop-outCurrent KA 31.5
RatedShortCircuitClosingCurrent KA 80
RatedPeakWithstandCurrent(Groundloop) KA 31.5
28RatedShort-timeWithstandCurrent(Groundloop) KA 12.5
ProtectionDegree IP54

Stainless Steel Electrical Substation Box Toroidal Coil Structure IEC60076 Standard

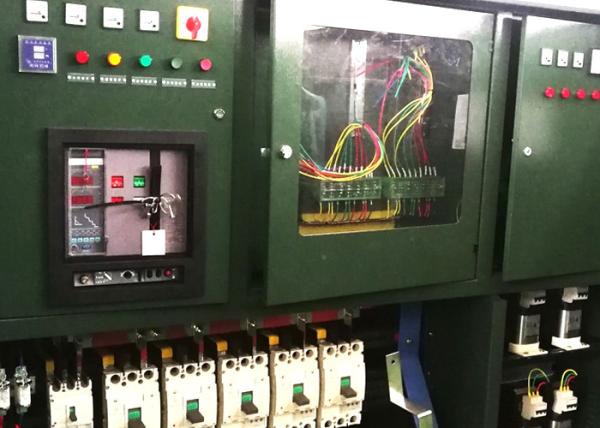

Prdduct structure


ZGS series combined transformers also called American transformers and are series of products

as required by the construction development and transformation of rural and urban grid. It is a kind

of transformer combined by auxiliary equipment including the body of transformer, switchgear,

fuse, disassembling switches, low-voltage power distribution unit, which can meet the requirement

of configurations such as electric power measurement, reactive compensation and low-voltage shunt.

The ZGS combined transformer, in AC 50HZ, 6-10KV network, whose nominal capacity is 63-1600KVA,

is an independent set of transformation and distribution device, which can be both applied to outdoor

and indoor, generally used in industrial zone, urban residential district, commercial center, high-rise

buildings and temporary construction sites.

Stainless Steel Electrical Substation Box Toroidal Coil Structure IEC60076 Standard




Contact us

1. quick response in before sales period help you got order.
2. excellent service in production time let you know each step we made.
3. reliable quality solve you after sale headache.
4. long period quality warranty ensure you can buy without hesitate.
