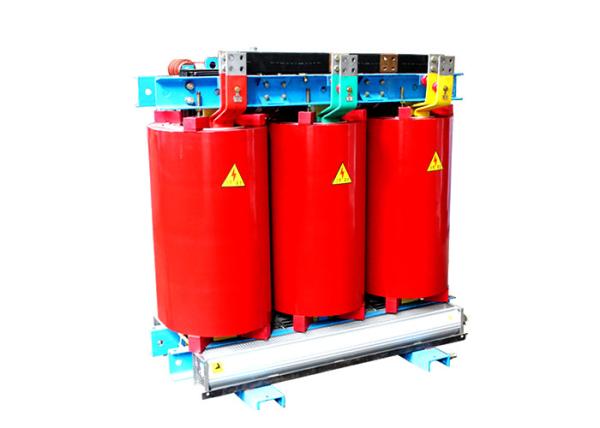

SC B 10 series 10KV resin insulated three phase dry type

transformer, power transformer

Product description:

1. Coil surface without any treatment, smooth and beautiful, green environmental

protection. Strong heat dissipation capacity, forced air cooling conditions can carry

150% rated load operation. Small partial discharge, low noise, no coil cracking,

long-term stable and safe operation. Safe, flame-proof and explosion-proof,

self-extinguishing, no pollution. Strong resistance to short circuit. . . Safe,

non-flammable, fire-proof can be installed directly in the Load Center;

2. Maintenance-free, easy installation, low operation cost;

3. Good moistureproof, can run normally under 100% humidity, and can be put

into operation without pre-drying after shutdown.

4. Low loss, low noise, small partial discharge, loss is usually 5% ~ 10% lower

than the corresponding national standards;

5. Good heat dissipation, strong overload capacity, air cooling condition, can overload 50% ;

6. Reliable operation, with perfect temperature protection control system, can

ensure the safe operation of the transformer.

7, small size, light weight, stable structure, Strong anti-sudden Short Circuit Ability;

STRUCTURE CHARACTERISTICS:

●lron core : core applies excellent cold rolling oriental silicon sheet and 45° wholly sloped joint

no punching hole structure ; surface of the core iscoated with special resin to protect against

rusting , elastic materials are cushioned between the clamping parts and core, between the

clamping parts and core, between coils and between the core and the base seat to reduce

operation noise.

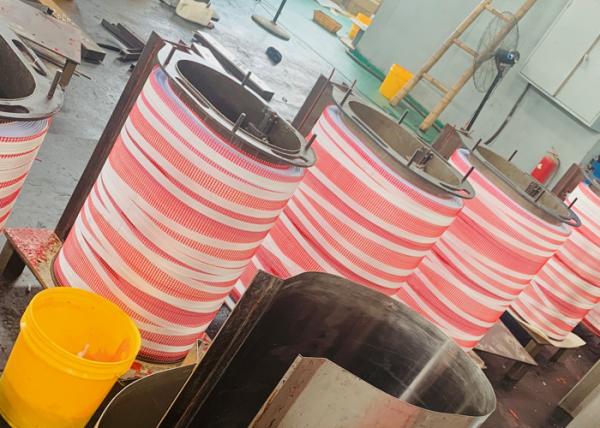

●Coils: low voltage winding applies double cylinder type or fossil type, high voltage winding

applies sectional connection type structure; which is wounded by F class insulated polyester

double fibre glass copper conductor and reinforced by fbre glass, epoxy resin proportion is poured and

moulded under vacuum state. It has good electric performance and mechanical strength.

●Temperature control: apply automatic temperature control protection system; realize

temperature display, patrol inspection, start and stop air fan, over temperature alarm,tip and

communication interface of computer etc functions on demand of users.
