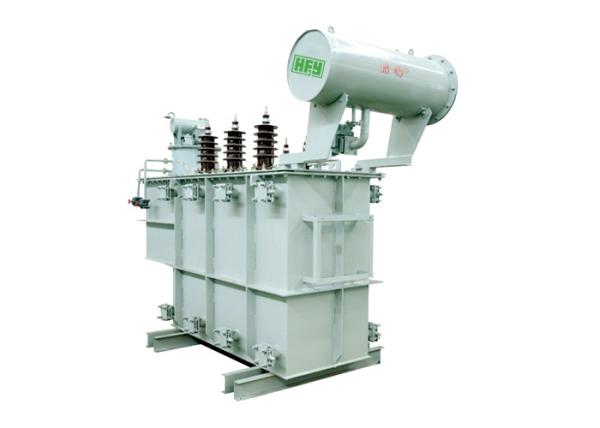

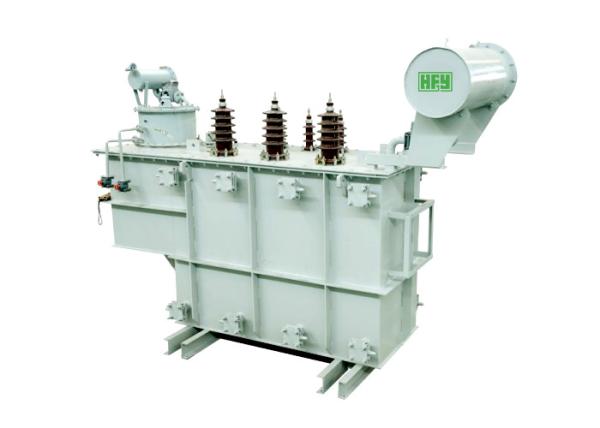

Copper Winding Electrical Power Transformer Oil Filled 35kv Amorphous Alloy
Copper Winding Electrical Power Transformer Oil Filled 35kv Amorphous Alloy
Copper Winding Electrical Power Transformer Oil Filled 35kv Amorphous Alloy
Copper Winding Electrical Power Transformer Oil Filled 35kv Amorphous Alloy
Copper Winding Electrical Power Transformer Oil Filled 35kv Amorphous Alloy
Copper Winding Electrical Power Transformer Oil Filled 35kv Amorphous Alloy
Copper Winding Electrical Power Transformer Oil Filled 35kv Amorphous Alloy
Copper Winding Electrical Power Transformer Oil Filled 35kv Amorphous Alloy
Copper Winding Electrical Power Transformer Oil Filled 35kv Amorphous Alloy
Copper Winding Electrical Power Transformer Oil Filled 35kv Amorphous Alloy
Specifications
Brand Name :
HENGFENGYOU
Model Number :
35kv
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
LC T/T
Supply Ability :
5000 pieces/year
Delivery Time :
15 DAYS
Packaging Details :
wooden case
Phase :
Three
Standard: :
CQC,SGS,ISO,GB/T,
Output Voltage :
220V 380V 400V 415V
Frequency :
50/60Hz
Material: :
Copper Winding
Coil Number :
2 winding
Primary voltage :
35~38.5kv
Price :
500-30000
Description

HengFengYou Oil-Filled Transformer ZTELEC S11 0.4KV-35KV

Oil Immersed Power Transformer

Product description


The iron core of amorphous alloy transformers are made of amorphous alloy. Amorphous alloy

materials have a disordered amorphous state of the metal atoms and a lower loss than the silicon

steel core, achieving the high energy efficiency. The area enclosed by the hysteresis loop of the

amorphous alloy is much smaller than that of the cold rolled steel sheet, so the hysteresis loss of

the amorphous alloy is much smaller than that of the cold rolled silicon steel sheet and the core loss

is very low if compared with the conventional silicon steel sheet iron. The no-load loss of the core

transformer is about 70% lower, which is an ideal low-loss energy-saving transformer. Due to low

loss, amorphous alloy transformers generate less heat, have lower temperature rise, and have very

stable performance.

rated
capacity(KVA)		 voltagegroup connection
method		 loss(KW) no-load
current
(%)		 Impedance
voltage(%)		 outine
dimension(mm)		 weight
(Kg)		 gauge
High-
oltage
(KV)		 LOW-
voltage
(KV)		 no-
]oad		 load75C (LxBxH) vertical/
horizontal
(mm)
630 35- 3.15 Yd11 0.83 7.87 1.1 6.5 2300x1100*2000 2610 -820/820
|800 38.5 6.3 0.98 9.41 2390x1130x2070 3310
1000 10.5 1.15 11.54 2420x1200x2110 3580
1250 1.41 13.94 0.9 2500x1270x2130 3990
1600 1.7 16.67 0.8 2510x1290x2340 4740
2000 2.18 18.38 2420x2070*2390 5120
2500 2.56 19.67 0.6 2520x2210x2470 5880 1070/1070
3150 35- 3.15 3.04 23.09 0.56 7 2630x2280*2510 7770
4000 38.5 6.3 3.26 27.36 0.56 2720x2430*2570 8750
|5000 10.5 4.32 31.38 0.48 2870x2470x2750 9930
6300 5.25 35.06 0.48 7.5 3100x2580x2950 12760 1475/1475|
8000 35- 3.15 YNd11 7.2 38.48 0.42 3250x2680x3150 14500
10000 38.5 3.3 8.7 45.32 0.42 3320x2720*3230 16900
12500 6.3 10.08 53.87 0.4 8 3410x2950x3410 19980
16000 6.6 12.16 65.84 0.4 3600*3220*3630 24200
20000 10.5 14.4 79.52 0.4 3810x3640x4040 31200
25000 17.02 9405 0.32 4180x4170*4260 36100 2040/2040
31500 20.22 112.8 0.32 4820x4630x4440 42600

Copper Winding Electrical Power Transformer Oil Filled 35kv Amorphous Alloy
Special Features:

1. The no-load loss is 20-35% lower than S9, and the energy saving effect is remarkable;
2. The no-load current is 70-85% lower than S9, which improves the power supply quality

of the grid and reduces the line loss;
3. the noise level is reduced, 30-45DB, effectively eliminating noise pollution;
4. S11-M series 10KV low loss fully sealed power transformer has super overload capability;
5. Because the iron core structure is reasonable, the loss is small, and the current is small,

so the temperature rise of the transformer is very low.

6.-High reliability, advances level of performances, reasonable economical indicators.

7.-The core joints are of stepped shape with 3 steps, and the surface of the core is coated

with cured paint to lower losses and noise.

8.-The winding has novel structure and its oil passage is reasonable designed. Its newly

designed insulation structure helps enhance its mechanical strength and the short circuit

withstanding ability.

9.-The oil tank is in various types, all have good outlook.

Copper Winding Electrical Power Transformer Oil Filled 35kv Amorphous Alloy


Our Service

Our Service:
1. OEM is available.
2. Your inquiry related to our product & price will be replied within 24 hours
3. Well-trained & experienced staff are to answer all your inquiries in English
4. Working time: 8:00am ~17:45pm, Monday to Saturday. (UTC+8)
5. Customized solution & perfect after-sale service
6. Payment: we can accept T/T, L/C, Western Union.
7. For large order, engineer can be sent to your country for on-site mainternace instructions.

Copper Winding Electrical Power Transformer Oil Filled 35kv Amorphous Alloy
