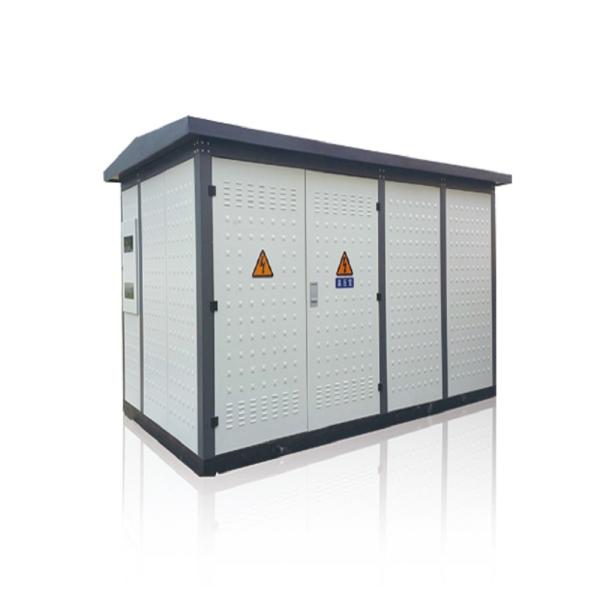

33 KV Compact Transformer Substation , Europe Type Prefabricated Substation
33 KV Compact Transformer Substation , Europe Type Prefabricated Substation
Specifications
Brand Name :
HENGFENGYOU
Model Number :
YB
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
2000-200000/piece
Payment Terms :
LC T/T
Supply Ability :
5000 pieces/year
Delivery Time :
30 days
Packaging Details :
wooden case
Product name :
European Type Box Transformer Substation
frequency :
50/60Hz
Usage :
Box Transformer
Model :
YBM-12
Rated Voltage :
12kV
Material :
Cold plate spray molding,ceramic tile
Color :
white
Certificate :
ISO9001,CCC
Rated current :
1000KVA
Description

Europe type compact transformer 33kv substation /Combined Transformer European Pretabricated Substation

European Type Box Transformer Substation With Top China Supplier

The prefabricated substation combines the high voltage electric apparatus, transformer,

low voltage electric apparatus in to a compact whole set power distribution device, which

is suitable for the urban high-rise buildings, resident communities, industry parks, mines

and oil fields, and operation and construction fields. It is used to receive and distribute

electrical energy in the distribution system.The product has the advantages of high perfor

mance, compact structure, safe and reliable operation, easy maintenance, and mobility.

Compared with ordinary transformer substation of the same capacity, it only occupies

1/10-1/5 space, which greatly reduces the work and cost of designing and construction.

It is one of the selective whole-set equipment used in the construction and reconstruction

of urban and rural areas.

33 KV Compact Transformer Substation , Europe Type Prefabricated Substation
YBM-12 Series 12KV European Type Box Type Transformer Substation
configuration
original name specifications unit 1
Three position load switch 600A,15 1PCS 2
Plug - in fusion electric 25A 3PCS 3
Insert fuse holder 15KV 3PCS 4
Single-pass casing 630A,15KV 3PCS 5
Insulation cap 200A 3PCS 6
Transformer body ZGS13-630/10-0.4 1PCS 7
ammeter 6l2-A 19PCS 8
voltmeter 6L2-V 0-450V 1PCS 9
Voltage switch LW5-16D YH3/3 1PCS 10
Reactive power compensator LJKW 1PCS 11
Surge protector HL 1-B-100KA-40 2PCS 12
