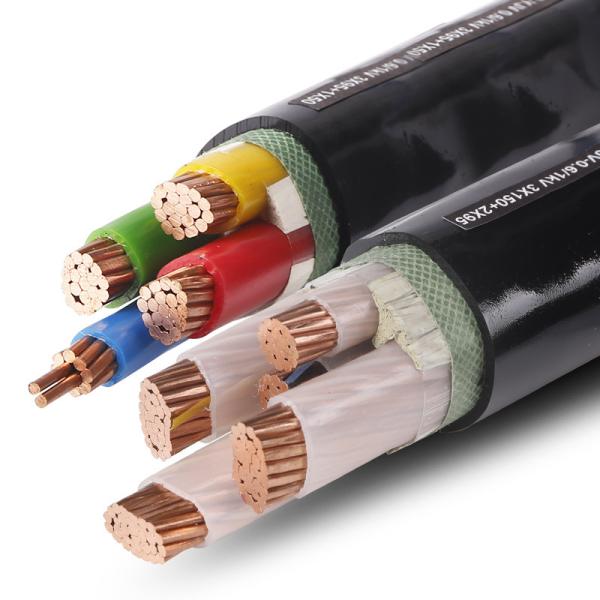

16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
Specifications
Place of Origin :
Hebei, China
Brand Name :
Zhufeng
Model Number :
ZR-YJV-0.6/1KV
Insulation Material :
XLRE
Type :
LOW VOLTAGE
Application :
Underground, low voltage electric power transmission
Conductor Material :
Copper/Aluminum
Jacket :
PVC
Product name :
electric power low voltage cable
Model :
ZR-YJV-0.6/1KV
Conductor :
copper/aluminum
Insulation :
XLPE
Specification :
1.5-400mm²
Core number :
1/2/3/3+1/4/3+2/4/4+1/5
Rated voltage :
0.6/1KV
Standard :
GB/T 12706.1-2020
Packaging Details :
Packed in wooden case on pallet or as requirement
Port :
Tianjin port, Qingdao port, Shanghai port, Guangzhou port
Supply Ability :
10000 Kilometer/Kilometers per Month
MOQ :
100 meters
Price :
$5.38 - $25.62/meters
Description
Product Description
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
Type
Name
Main Application
Cu Core
Al Core
YJV
YJY
YJLV
YJLY
XLPE insulated, PVC or PE Sheathed Power Cable
For laying indoor and outdoor, unable to bear extenal mechanical force but the tractive force during laying.Laying single core cable in magnetic duct is not permissible.
YJV22
YJV23
YJLV22
YJLV23
XLPE Insulated, Steel Tape Armored, PVC or PE Sheathed Power Cable
For laying underground, able to bear external mechanical force, but unable to bear large pulling force.
YJV32
YJV33
YJLV32
YJLV33
XLPE Insulated, Steel Wire Armored, PVC or PE Sheathed Power Cable
For laying underground along route with different level, able to bear external mechanical force and moderate pulling force.
YJV42
YJV43
YJLV42
YJLV43
XLPE Insulated, Thick Steel Wire Armored, PVC or PE Sheathed Power Cable
Specification
Product name
Copper conductor XLPE insulated PVC sheathed power cable
Insulation
XLPE
Model
YJV
Temperature
90°C
Rated voltage
0.6/1kv
Standard
GB/T12706.2-2008/IEC60502-2:2005
Specification
1.5-500mm²
Sheath
PVC
Core number
3/4/5
Application
For laying indoor and outdoor, unable to bear extemal mechanical force but the tractive force during laying. Laying single core cable in magnetic duct is not permissble.
Conductor
Copper
Armour
STA (optional)
16mm2 25mm2 35mm2 95mm2 Single Muti Core Armoured PVC XLPE Insulation Electric Power Cable
