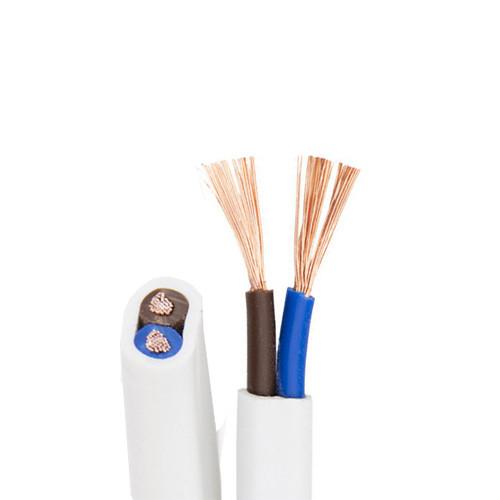

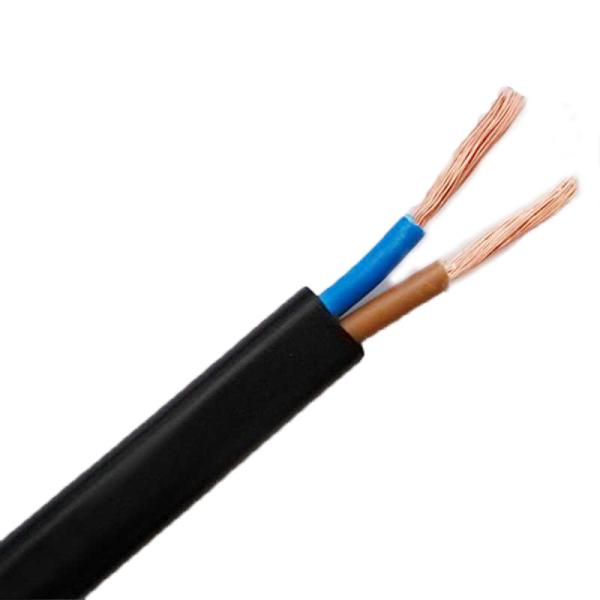

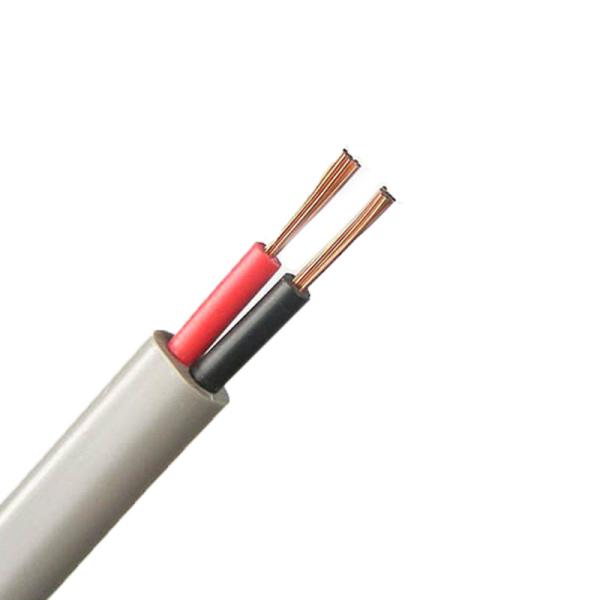

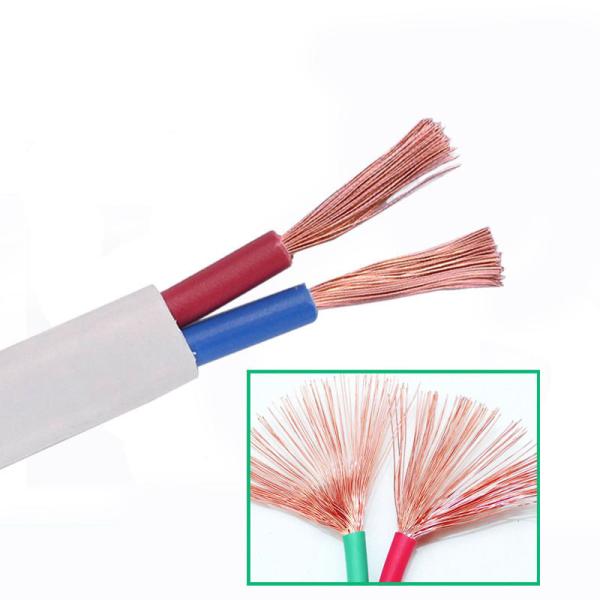

2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
Specifications
Place of Origin :
Hebei, China
Brand Name :
Zhufeng
Model Number :
RVVB
Insulation Material :
PVC
Type :
LOW VOLTAGE
Application :
Construction, Industrial, Telecommunication, Computer, Car
Conductor Material :
Copper
Jacket :
PVC
Rated voltage :
450/750V
Specification :
0.5-4mm2
Number of Cores :
2
Standard :
JB/T8734.2012
Certification :
ISO, CCC, CE, RoHS
Transport Package :
Wooden Drum
MOQ :
1000 meters
Price :
$0.98/meters 1000-4999 meters
Description
Product Description
2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
2 Cores 4mm2 Flat Cables Copper Conductor Flexible Wires for LOW VOLTAGE Applications
RVVB wire characteristics

RVVB copper core PVC insulated sheath flat power cord, suitable for household appliances, lighting, security monitoring connection line.
1. Rated voltage: 450/750V and below.
2. Working temperature: with -90 suffix type of wire long-term allowable working temperature should not exceed 90℃, other types of wire long-term allowable working temperature should not exceed 70℃. When the cable is used in an environment that prevents thermoplastic flow and allows reduction of insulation resistance, the PVC mixture can be continuously used at 90℃ and its operating temperature can be increased to 105℃ while shortening the total working time.
3. Conductor: single bare copper wire or multi-stranded copper wire 4. RVVB wire use: this product is suitable for ac rated voltage 450/750V and below power, daily electrical appliances, instruments and telecommunications equipment and other lines.

RVVB is mainly applied to power transmission lines and control, lighting and communication lines of mobile electrical appliances such as lifting equipment, cable track, trolley, transmission machinery, elevator, crane, tower crane and telescopic mechanical equipment in special places. It can also be used for connection and installation of closed indoor mechanical parts. RVVB is mainly used for mobile laying, the number of bending is generally greater than BV line, so the service life is longer.
Specification
Product name
Copper conductor PVC insulated PVC sheathed flexible cable
Insulation
PVC
Model
RVVB
Temperature
70°C
Rated voltage
300/500V
Standard
JB/T8734.3-2016
Specification
0.5-6mm²
Sheath
PVC
Core number
2-5 Core
Application
It is suitable for fixed wiring of power devices and electrical equipment with AC rated voltage 450/750V and below.
Conductor
Copper
Armour
\
