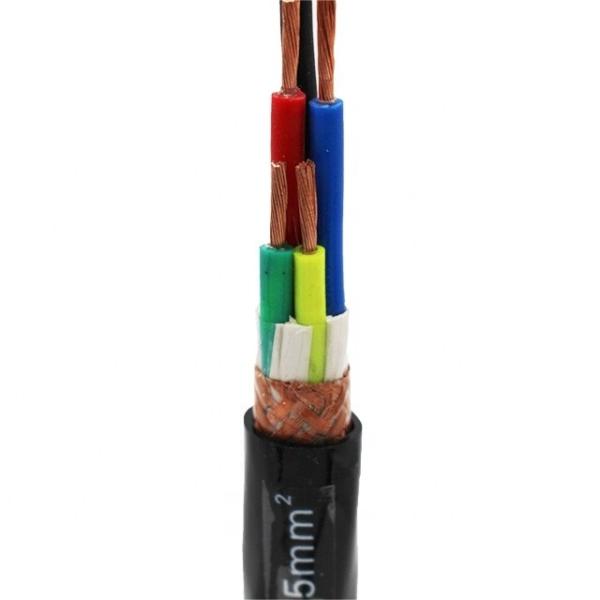

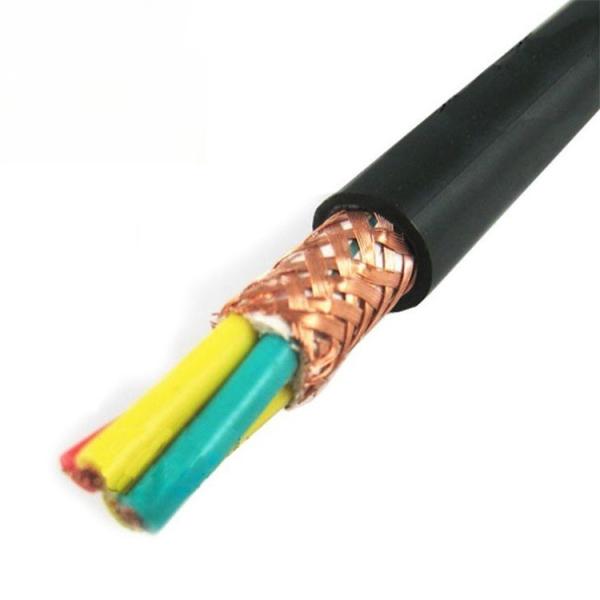

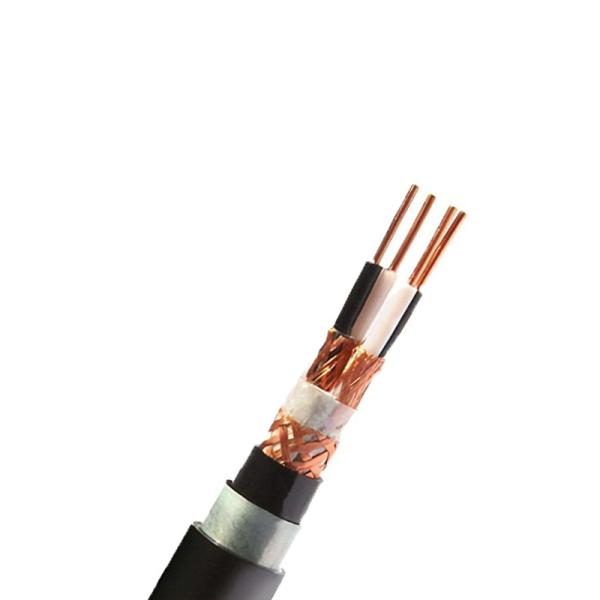

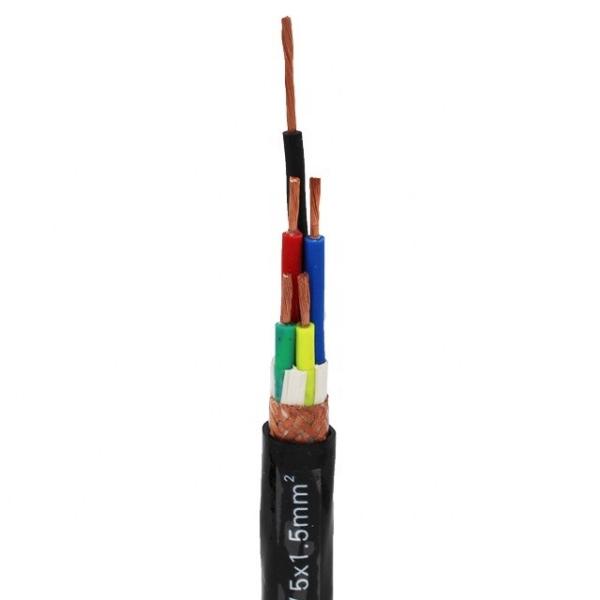

PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
Specifications
Place of Origin :
Hebei, China
Brand Name :
ZHUFENG
Model Number :
KVV KVVP KVVP22
Conductor Material :
Copper
Insulation Material :
PVC
Jacket :
PVC
Number of Conductors :
multiple core
Application :
industrial cable , house wire
Name :
Control cable
Certification :
ISO,CCC,CE,RoHS
Rated Voltage :
450/750V
Sample :
Provided
MOQ :
1000 Meters
Packaging Details :
Packed in wooden case on pallet or according to your requirements for power cable
Supply Ability :
30000 Kilometer/Kilometers per Month
MOQ :
1000 meters
Price :
$0.18 - $4.83/meters
Description
Product Description
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
Type
Designation
Main Application
KVV
Copper conductor PVC Insulated and sheathed control cable.
For laying indoors, in trenches and in duals, for fixed installation.
KVVP2
Copper conductor PVC Insulated and sheathed control cable with copper tape shield.
For laying indoors, in trenches and in duals, for fixed installation.
KVV22
Copper conductor PVC Insulated and sheathed control cable with steel tape armoured.
For laying indoors, in trenches and in duals, and in groud, able to withstandheavier mechanics lorce, and for fixed installation.
KVVRP
KVVR
Copper conductor PVC Insulated flexible control cable.
For laying indoors, movable and flexible.
ZR-KVV
Copper conductor PVC Insulated and sheathed flame retardant control cable.
For laying indoors, in trenches and in duals, for fixed installation. The cable should be flame retardants.
ZR-KVVP2
Copper conductor PVC Insulated and sheathed flame retardant control cable with steel tags shield.
For laying indoors, in trenches and in duals, for fixed installation. The cable should be flame retardants.
ZR-KVV22
Copper conductor PVC Insulated and sheathed flame retardant control cable with steel tape armoured.
For laying indoors, in trenches and in duals and underground, the cable should be flame retardants and able to bear beavier extermal mechanical lorce,and for fixed installation.
ZR-KVVRP
ZR-KVVR
Copper conductor PVC Insulated and sheathed flame retardant flexible control cable.
For laying indoors, and the cable should be flame retardant flexible and movable.
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
Specification
product name
Copper conductor PVC insulated and sheathed flame retardant control cable
model number
ZR-KVVP
specification
0.75mm²-1.5mm²/2.5mm²/4mm²-6mm²/10mm²
core number
7-61/4-61/4-14/4-10
standard
GB/T9330-2008
application
Suitable for control, monitoring loop and protection line, etc
conductor material
Copper
color
black or custom
insulation
PVC
jacket
PVC
rated voltage
450/750V
armour
/
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
PVC Insulated 1.5mm/2.5mm/4mm/6mm Multi Core 450/750V Shielded Industrial Control Cable
