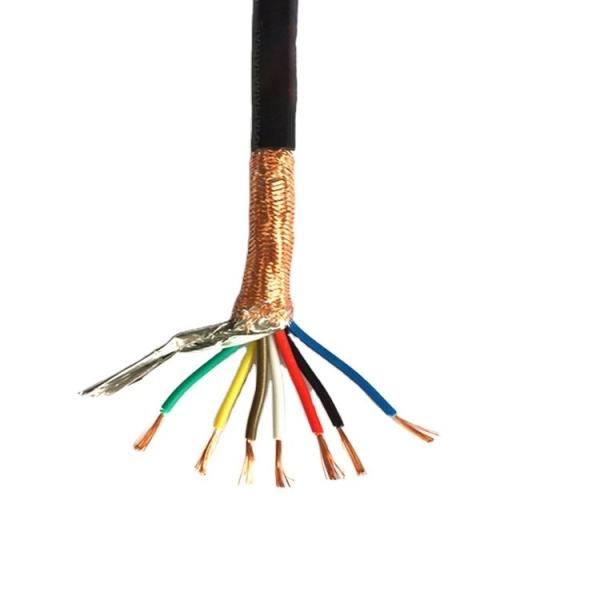

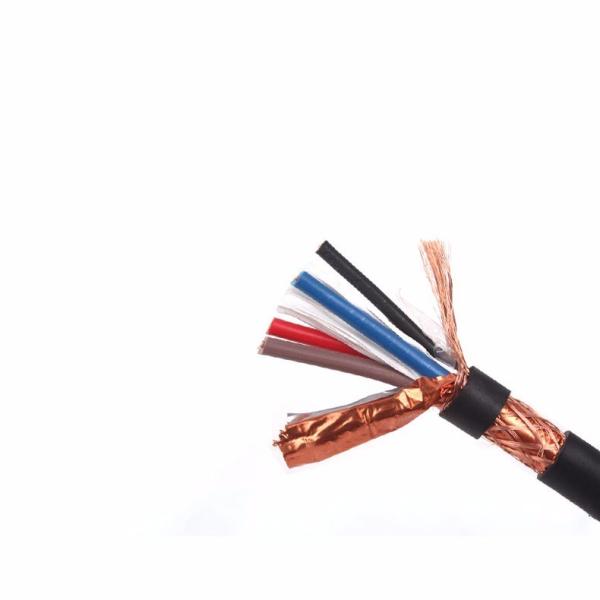

PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
Specifications
Place of Origin :
Hebei, China
Brand Name :
Zhufeng
Model Number :
ZR-KVVP
Application :
Overhead, Underground, Industrial
Conductor Material :
Copper
Jacket :
PVC
Insulation Material :
PVC
Material Shape :
Round Wire
Rated voltage :
450/750V
Specification :
0.75mm²-1.5mm²/2.5mm²/4mm²-6mm²/10mm²
Core number :
7-61/4-61/4-14/4-10
Standard :
GB/T9330-2008
Certification :
ISO9001, CE, CCC, RoHS
MOQ :
500 meters
Price :
$0.11 - $0.39/meters
Description
Product Description
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
RVVP cable wire characteristics

RVVP cable is also called electrical connection anti-interference soft cable, is a kind of soft conductor PVC insulated line plus a shielding layer and PVC sheath cable, rated voltage is 300/300V generally.
Its texture is very soft, can be bent at will, but not easy to break, in daily life is relatively common, a wide range of applications.Good compatibility and can be used in harsh environments.
It is suitable for communication, audio, broadcasting, sound system, anti-theft alarm system, intelligent automation system, automatic meter reading system, fire protection system, etc., which need anti-interference line connection, efficient and safe data transmission cable.
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable

RVVP CABLE Technical Parameters


1. RVVP implementation standard JB/T8734.5-2012
2. PVC insulation
3. PVC sheath
4. The conductor is multi-core annealed bare copper stranded
5. Stranded composite cable with more than two cores
6. It can be shielded by aluminum foil after cable formation
7. Bare copper wire or tinned copper wire braided shielding net
8. The rated voltage is 300/300V
9. Normal working temperature does not exceed 70 ºC
10. Product CCC CE certification
Specification
Product name
Electrical connection anti-interference soft cable
Insulation
PVC
Model
RVVP
Temperature
70°C
Rated voltage
300/300V
Standard
JB/T 8734.3-2016
Specification
0.3/0.5/0.75/1/1.5/2.5/4/6/10/16mm²
Sheath
PVC
Application
Fire automatic fire alarm system detector lines, household appliances, small power tools, instruments and instruments and power
lighting lines, connecting power amplifier and sound equipment, broadcast system transmission amplifier amplification processingof
audio signals，etc.
Conductor
high quality Oxygen-free copper
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
PVC Insulation Round Wire 4-61core 2.5mm2 Multi Core Shielded Flexible Control Cable
