JUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High Performacne
JUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High Performacne
JUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High Performacne
JUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High Performacne
JUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High Performacne
JUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High Performacne
JUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High Performacne
JUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High Performacne
JUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High Performacne
JUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High Performacne
Specifications
Brand Name :
WONKEDQ
Model Number :
JUISLKG 16
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Trademark :
WONKEDQ, other brands can be made
Model No. :
JUISLKG 16
Mounting type :
DIN Rail NS 35
Material :
Anti-framing Nylon PA66, Nickel plated brass conductor
Color :
Yelloe/Green, others can be designed
Description

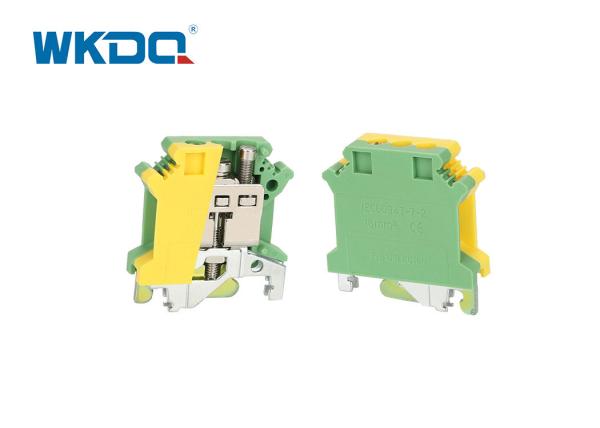

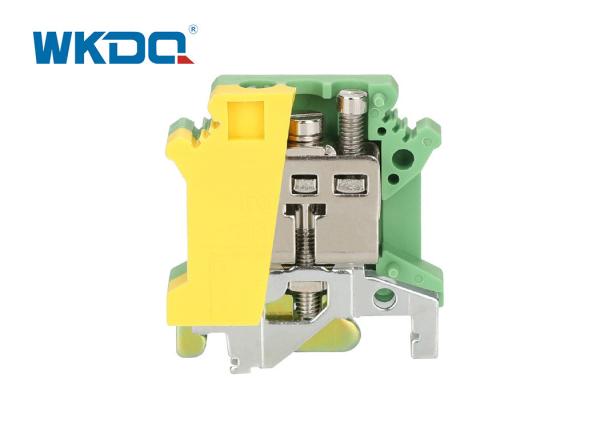

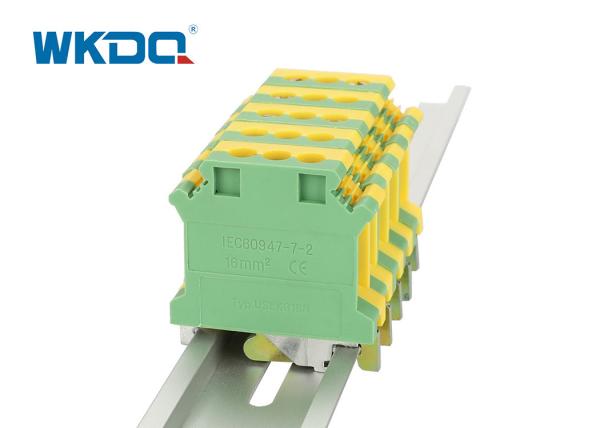

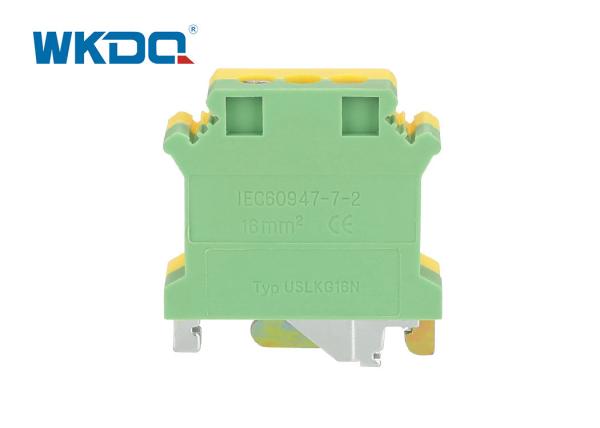

JUISLKG 16 Ground Terminal Blocks

JUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High Performacne

1. DESCRIPTION

Our screw connection terminal blocks are suitable for all types of different cross-sections of cables, not matter rigid or flexible cables. Pre-assembled and divisible cross-connection system and easy removable unwanted cross-connection.The Ground Terminal Blocks offer protective insulation , it makes you confidence that your product is safe and secure.The screw-mounted connection ensures that they are firmly clamped into position, so you don't have to worry about loose wires.

Combination foot for NS 35mm mounting rails.

Terminal insulation body made from polyamide 6.6 .

Easy to tighten the cable by screwdriver.

Corrosion-proof contact point.

Strong contact force and excellent connection.

Ease of handling and a reliable electrical connection.

Safe and stable performance.

Made from safe and high quality material.

Cable entry is closed after tighten to prevent wire splitting.

Can easy distribute connections in many conductors by the bridges

Offering ground terminal blocks, suitable for all ranges cross sections of cables.

Full range of accessories: End plates, End clamps, Partition plates,Separating plates, marking strip, etc.

2.TECHNICAL PARAMETERS

Model No. JUISLKG 16N Ground Modular Terminal Block
Color Yellow/Green, other color can be customized
Length/Height/Wide (mm) 42.5/46.2/12.2
Connection method Screw connection
Material Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current 800V/101A
Cross section, solid/soft Cable 2.5-25 mm² /4-16 mm²
Conductor Size 12-3 AWG
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 35.42g/pc, 50PCS/BOX, 600PCS/CTN
Certification CE/RoHS/CQC/ISO 9001

JUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High PerformacneJUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High PerformacneJUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High PerformacneJUISLKG 16 Durable Feed Through Terminal Block Grounding Long Lifespan High Performacne
