JMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh Certificate
JMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh Certificate
JMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh Certificate
JMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh Certificate
JMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh Certificate
JMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh Certificate
JMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh Certificate
JMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh Certificate
JMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh Certificate
JMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh Certificate
Specifications
Brand Name :
WONKEDQ
Model Number :
JMBKKB 2.5
Certification :
CE, RoHs, CQC,etc
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Type No. :
JMBKKB 2.5, Multi Levels Terminal Blocks
Conductor Data :
24-12 AWG
Product Material :
Flame resistant Nylon PA66, Nickel plated brass conductor
Product Color :
Grey, Blue, other color can be customized
Logotype :
WonkeDQ, LOGO can be customized
Connection Mode :
Screw Connection
Description

JMBKKB 2.5 Double Layer Terminal Block

JMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh Certificate

1. DESCRIPTION

For these multi levels terminal blocks, fixed bridge and test sockets can be used on both levels. Space saving thanks to compact design; Clear arrangement thanks to marking all of terminal points.

Easy to operate.

Double screw terminal blocks.

Space-saving and cost-saving design.

Stable and low contact resistances.

All types of materials are guaranteed in quality.

Made from Inflaming retarding PA 66 with brass conductor and pressure house.

Can marking identification tags possible at both levels.

Suitable for broad range of cross-section and types of wires.

With universal foot which can be installed on Din Rail NS 35.

All types of accessories: End cover, End Bracket, Partition plate, Marking holder, fixed bridge, insertion bridge, Separating plate, etc.

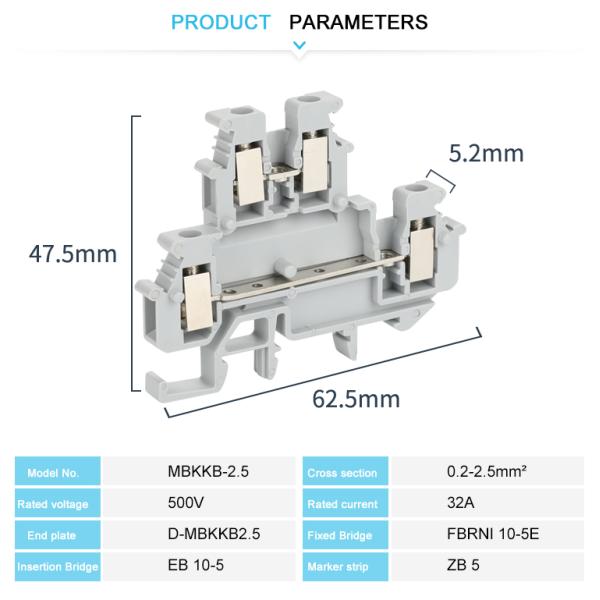

2.TECHNICAL PARAMETERS

Model No. JMBKKB 2.5, Multi Levels Terminal Blocks
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) 62.5/47.5/5.2
Connection method Connection by screw tighten
Material Nylon PA66
Rated Voltage/Current 500V/32A
Cross section, solid/soft Cable 0.2-4 mm² / 0.2-2.5 mm²
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 10.79g/pc, 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
3.RELATED PRODUCT

  • Feed Through Terminal Block

  • DIN Rail Fuse Terminal Block

  • DIN Rail Ground Terminal Block

  • Partition Plate for

JMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh CertificateJMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh CertificateJMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh CertificateJMBKKB 2.5 Screw Clamp Terminal Block Replacement Rosh Certificate
