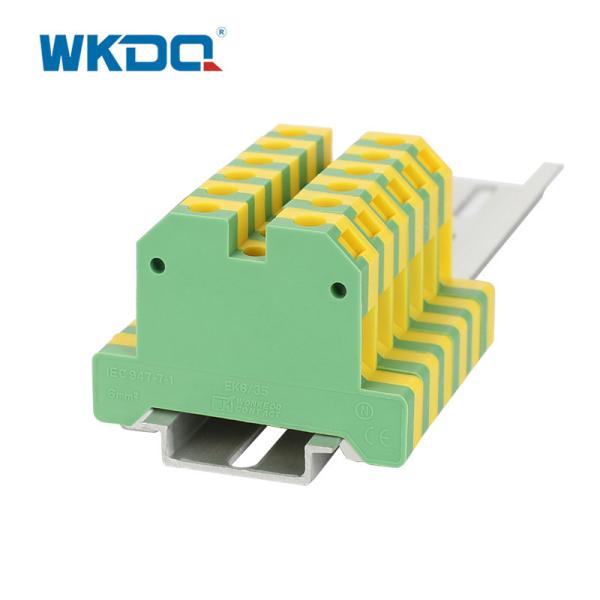

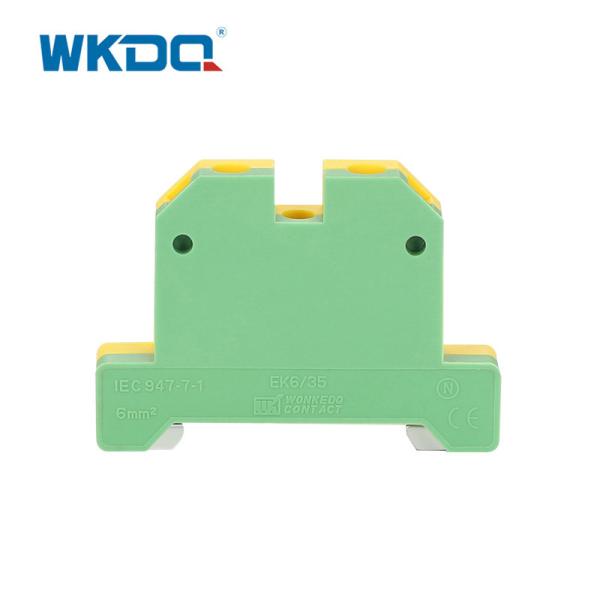

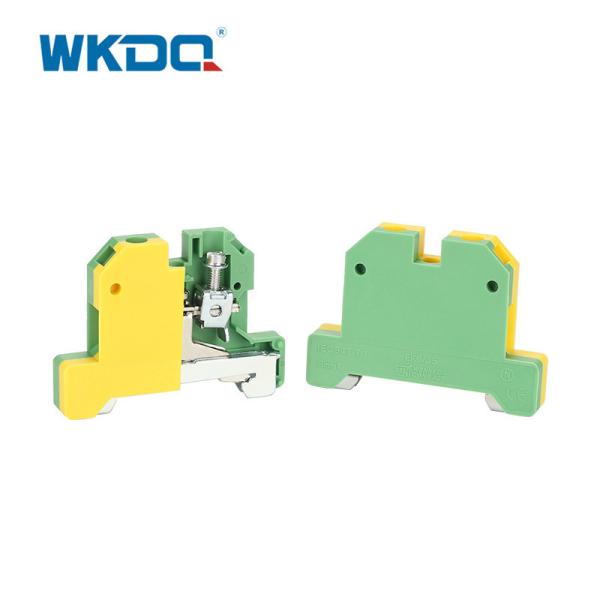

JEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side Entry
JEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side Entry
JEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side Entry
JEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side Entry
JEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side Entry
JEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side Entry
JEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side Entry
JEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side Entry
JEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side Entry
JEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side Entry
Specifications
Brand Name :
WONKEDQ，WKDQ
Model Number :
JEK 6/35
Certification :
CE, RoHs, CQC,etc
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Model number :
JEK 6/35
Length :
57.5
Height :
41
Wide :
8
Rated Cross section :
6 mm²
Packing Detail :
24.86g/pc, 40PCS/BOX, 720PCS/CTN
Description

JEK 6/35 Din Mount Terminal Blocks

JEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side Entry

1. DESCRIPTION

The grounding terminal blocks are used to mechanically and electrically connect wires to the DIN rail by means of a conducting clamping foot. Then, the DIN rail can function as a ground bus bar.

Easy to operate.

Steady structure.

Vibration proof.

Safe and stable performance.

Shock resistance & Corrosion resistance.

Made from safe and high quality materials.

Simple and convenient installation.

Perfectly suitable for electrical machine control systems.

An excellent vibration proof protection against loosening.

Maintenance-free conductor connection and long-term reliable using.

The Ground Terminal Blocks offer protective insulation , it makes you confidence that your product is safe and secure.

Made from engineering antiflaming nylon PA66 with brass screw metal.

They are molded in green and yellow follow international standards.

Don’t need to use an end stop when a ground block is positioned at the end of a terminal block assembly.

With universal foot which can be snapped on Terminal Din Rails.

2.TECHNICAL PARAMETERS

Model Number JEK 6/35
Color Yellow/Green, other color can be customized
Length/Height/Wide (mm) 57.5/41/8
Connection method Screw connection
Material Nylon PA66
Rated Voltage/Current 800V/41A
Rated Cross section 6 mm²
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 24.86g/pc, 40PCS/BOX, 720PCS/CTN
Certification CE/RoHS/CQC/ISO 9001

3.RELATED PRODUCTS

  • Spring Cage Terminal Blocks

  • Spring Cage Twin Terminal Blocks

  • DIN Rail Terminals

  • Terminal Connector

  • Screw Terminal Block 2.5MM

  • 2.5MM Earth Terminal Blocks

JEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side EntryJEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side EntryJEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side EntryJEK 6/35 Screw Connection Terminal Block 6 Mm² Rated Cross Section Side Entry
