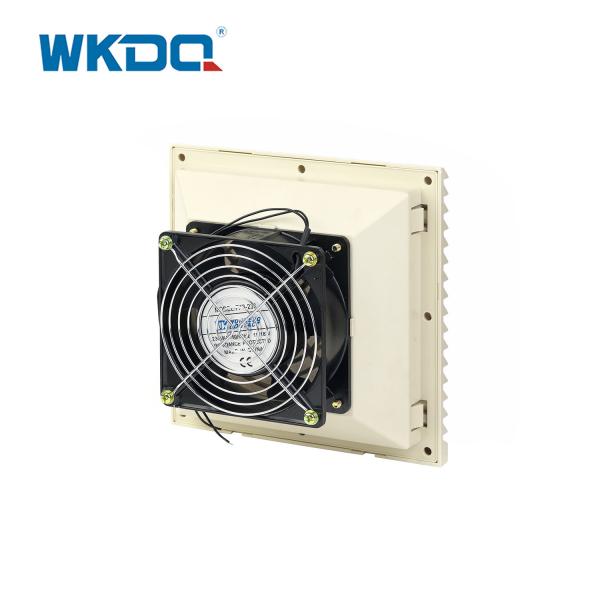

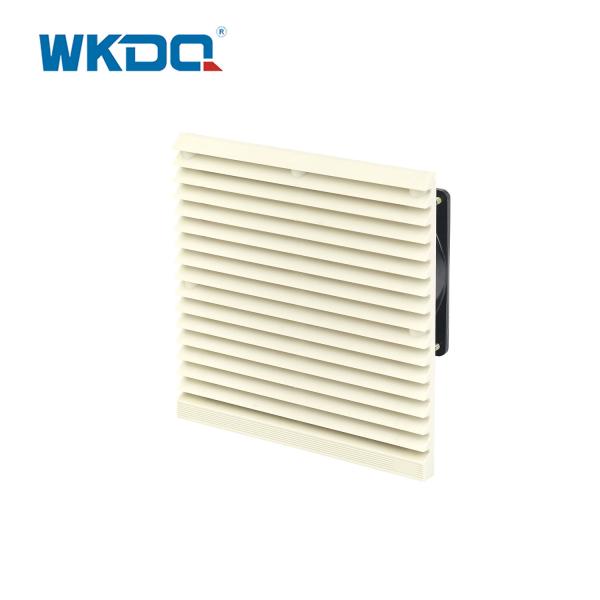

3323-230 White Electrical Enclosure Cooling Fans Waterproof For Distribution Panel
3323-230 White Electrical Enclosure Cooling Fans Waterproof For Distribution Panel
3323-230 White Electrical Enclosure Cooling Fans Waterproof For Distribution Panel
3323-230 White Electrical Enclosure Cooling Fans Waterproof For Distribution Panel
Specifications
Brand Name :
WONKEDQ，WKDQ
Model Number :
3323-230
Certification :
CE, RoHS, CQC
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Part No. :
3323-230
Installation way :
Clip into
Air circulation :
105m³/h
Surface area(mm²) :
204x204
Packing unit :
0.635kgs/pc
Description

3323-230 Cabinet Dust Panel Filters

3323-230 White Cooling Waterproof dust Electrical Cabinet Air Filter on Distribution Panel

1.DESCRIPTION

Electrical and electronic equipment mounted inside a cabinet generate heat that raises the temperature inside the enclosure. To assure operational reliability and a long service life for enclosed electrical/electronic systems, it is necessary to dissipate the heat building up inside the enclosure.

Frame material is made from heat resistance and anti-flame ABS.

OEM service is supported.

Reliable and safe function.

Other dimension can be customized.

It can prevent dust particles more than 10 microns.

All fan filters’ dimensions comply with the market standards.

The protection level of sealed box can reach IP54.

The waterproof hood can make the protection level up to IP55.

It is easy to change the filter pad by using the groove handle on shutter.

The design adapt to current market requirement:Super flat,Fast installation,High power.

The rainproof function of ventilation cascade can prevent mechanical damage and damp entering.

Filter pad is made from non-woven fiber, replacing the filters can be made during operation without any risk of touching the rotating parts.

Can clip into the cabinet easily into enclosure wall.

2.TECHNICAL PARAMETERS

Filter unit Model No. 3323-300
Fan with filter unit Model No. 3323-230
Unimpeded air flow 105m³/h
Noise level 46dB
Surface dimension (mm) 204x204
Installation hole size (mm) 177x177
Voltage/Current 230V/120mA
Input Power Rating 19W
Temperature range -10℃~+55℃
Packing detail: 3323-300 (Filter unit) 0.207kgs/pc
Packing detail: 3323-230 (Fitler with Fan) 0.635kgs/pc
Certificate CE, RoHS, CQC
