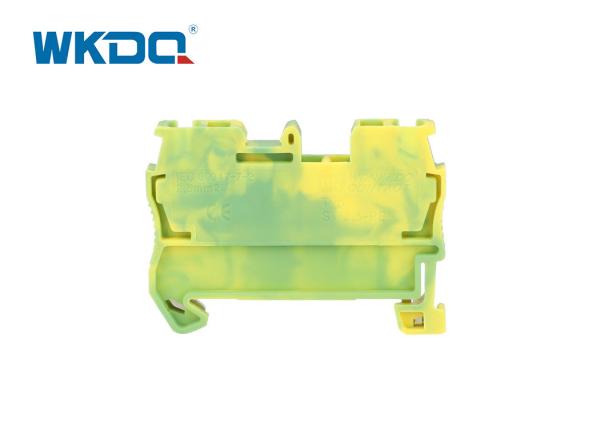

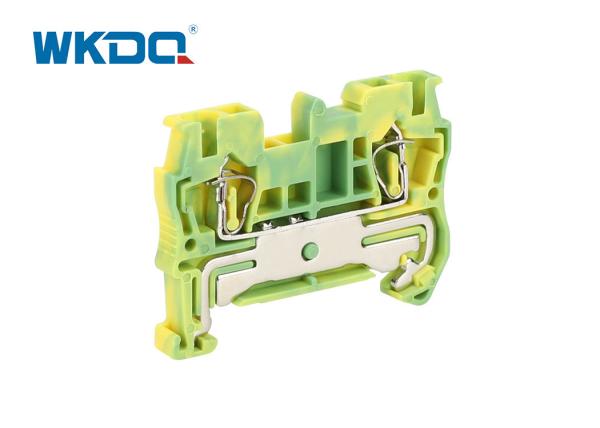

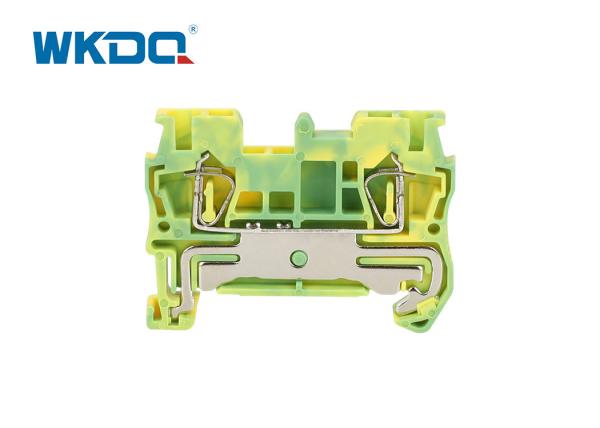

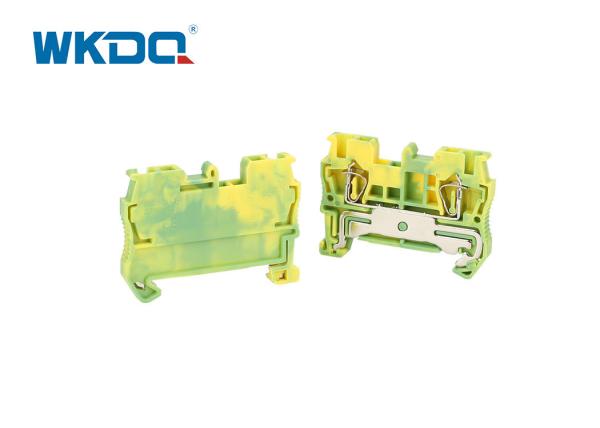

JSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding Nylon
JSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding Nylon
JSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding Nylon
JSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding Nylon
JSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding Nylon
JSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding Nylon
JSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding Nylon
JSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding Nylon
JSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding Nylon
JSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding Nylon
Specifications
Brand Name :
WONKEDQ
Model Number :
JSTTB 2.5-PE
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Part No. :
JSTTB 2.5-PE
Insulating material :
Anti-framing Nylon PA66
Materials of conductor :
Tin plated brass conductor
Cross section,solid cable :
0.2-4mm²
Cross section,soft cable :
0.2-2.5 mm²
Product color :
Yellow/Green, other colors are achievable
Description

JSTTB 2.5-PE Double Layer Grounding Terminal Blocks

JSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding Nylon

1. DESCRIPTION:

The Spring clamp ground terminal blocks offer a reliable ,constant connection when subjected to strong vibrations.The connect is vibration proof and corrosion-proof.

  • Made from flaming resistant Nylon PA 66 with tin plated brass bar.
  • Easy to operate.
  • Long durable time.
  • Corrosion-proof contact point.
  • Stable and low contact resistances.
  • Made from Anti-flaming Plastic.
  • The spring-loaded terminals are joined to a power contact.
  • Multiple identification bits.
  • Saving time and labor.
  • As well as saving space, the compact design and front connection enable user-friendly wiring in a small amount of space.
  • Suitable for 35mm DIN Rail.

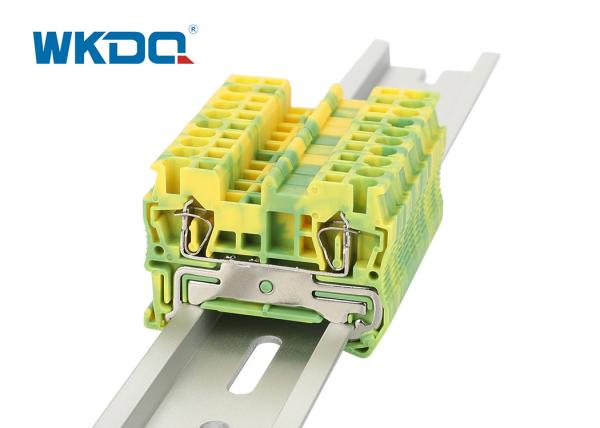

  • The ground terminal blocks can simply snap onto the Din Rail to build PE connecting.

2.TECHNICAL PARAMETERS

Model Number JSTTB 2.5-PE
Color Yellow/Green, other color can be customized
Length/Wide/Height (mm) 68/46/6.2
Connection method Spring clamp connection
Material Nylon PA66
Rated Voltage/Current 500V/24A
Cross section, solid/soft Cable 0.2-4mm² / 0.2-2.5 mm²
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 13.73g/pc, 50PCS/BOX, 1500PCS/CTN
Certification CE/RoHS/CQC/ISO 9001

JSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding NylonJSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding NylonJSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding NylonJSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding Nylon
