JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
Specifications
Brand Name :
WONKEDQ
Model Number :
JUKH 95
Certification :
CE, RoHs, CQC,etc
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Trademark :
WonkeDQ, other logos are available
Color :
Grey, Blue, other color can be customized
Production material :
Housing by Flame resistant Nylon PA66, Nickel plated brass conductor
Rated voltage/current :
1000V/232A
Connection means :
Screw Connection
Part No. :
JUKH 95
Description

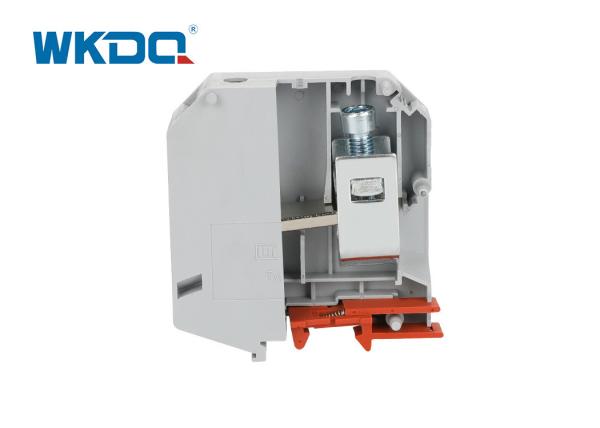

JUKH 95 DIN Rail High Current Terminal Block

JUKH 95 Best Din Rail And High Voltage Installation Electric Screw Terminal Block

1. DESCRIPTION

The JUKH High current terminal blocks offer a safety and reliable connection via the superior construction which includes three-point centering of the wire in the prism-shaped sleeve base, a fluted contact surface for low contact resistance, and screws secured with spring-loaded elements.

The elastic structure is used to realize screw self-locking.

Made from industrial flame retardants nylon PA66.

Enclosed insulating case.

Long durable time.

Perfectly suitable for electrical machine control systems.

Comprehensive range of accessories: Plug-in bridges, marking strips, marking holder.

It is a serie of economy terminal blocks that create convenient wiring connection and termination locales.

The JUK screw terminal block series has the typical features which are decisive for practical applications.

The terminal blocks have an enclosed housing made from Flame resistant Nylon, with copper conductive elements.

Green-yellow ground terminal blocks are also available.

With universal foot which can be installed on Din Mounting 35mm.

It can connect two conductors easily, even large conductor cross sections are not a problem.

2.TECHNICAL PARAMETERS

Model Number JUKH 95
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) 83/90.5/25
Connection method Screw connection
Material Nylon PA66
Rated Voltage/Current 1000V/232A
Cross section, solid/soft Cable 25-95 mm² / 35-95 mm²
Conductor Size 4-000 AWG
Mounting Type NS 35 DIN rail
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 194.23g/pc, 120PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
