Specifications
Brand Name :
WONKEDQ
Model Number :
JUKH 150
Certification :
CE, RoHs, CQC,etc
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Material :
Anti-framing Nylon PA66, brass conductor covered Nickel
Color :
Grey, Blue, other colors are avaliable
Model No. :
JUKH 150
Length/Height/Wide (mm) :
101/112/31
Conductor size :
2-300 AWG
Mounting type :
DIN Rail NS 35
Description

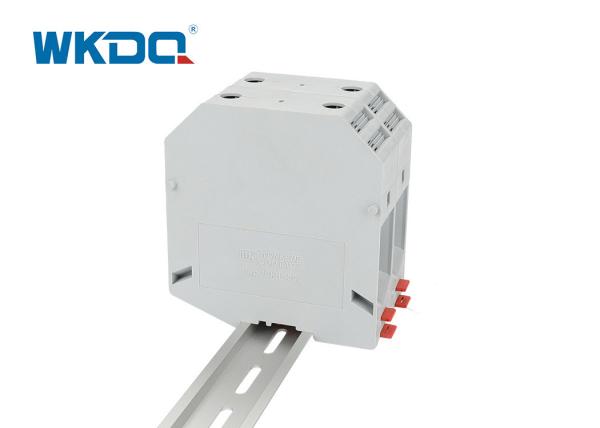

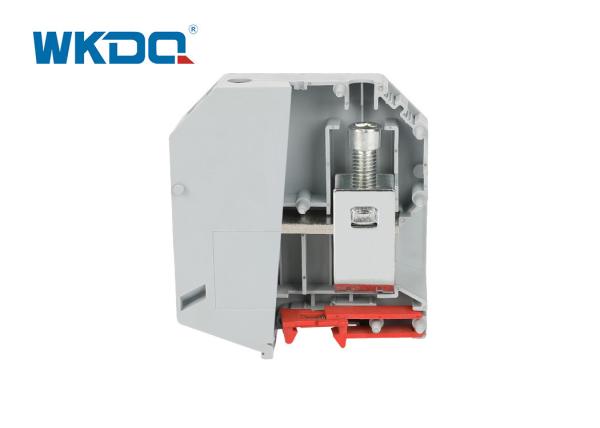

JUKH 150 Rail Mounted Terminal Block

JUKH 150 Electrical Screw Terminal Block 2-300 AWG Conductor Size Widely Application

1. DESCRIPTION

Screw connection DIN Rail terminal blocks from Wonkedq are available in different types, including screw clamp, screw clamp diode, screw clamp disconnect, screw clamp double level, screw clamp test, screw clamp fuse terminal blocks. With the screw clamp type, there is one terminal connection and the pressure house hold the wires in place.The screw clamp diode series is connected by a diode that sends the current to both terminals. We also have spring clamp series which has a quicker installation than the screw type.

The internationally found screw connection meets the most strict requirements and widely used for different application. In the most strict situation: the screw connection also makes itself successfully in connecting the large conductor cross sections.

The JUK universal screw terminal block series has the typical features which are decisive for practical applications.

Made from engineering flame retardants nylon PA66 with brass conductor.

With universal foot which can be installed on Din Rail NS 35.

Easy to operate.

Safe and reliable connection.

Enclosed insulating case.

Provide high current grounding terminals.

Made from industrial flame retardants nylon PA66.

The elastic structure is used to realize screw self-locking.

It can connect two conductors with ease, even large conductor cross sections are not a problem.

Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.

All types of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc. All types of materials are guaranteed in quality.

2.TECHNICAL PARAMETERS

Part No. JUKH 150
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm) 101/112/31
Connection method Screw connection
Material Nylon PA66
Rated Voltage/Current 1000V/309A
Cross section, solid/soft Cable 35-150 mm² / 50-150 mm²
Conductor Size 2-300 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 308.65g/pc, 10PCS/BOX, 60PCS/CTN
Certification CE/RoHS/CQC/ISO 9001

JUKH 150 Electrical Screw Terminal Block 2-300 AWG Conductor Size Widely ApplicationJUKH 150 Electrical Screw Terminal Block 2-300 AWG Conductor Size Widely ApplicationJUKH 150 Electrical Screw Terminal Block 2-300 AWG Conductor Size Widely ApplicationJUKH 150 Electrical Screw Terminal Block 2-300 AWG Conductor Size Widely Application
