Specifications
Brand Name :
WKDQ
Model Number :
FBS 10-4
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Model number :
FBS 10-4
Manufacturer :
WONKEDQ
Product logos :
WONKEDQ,customized brand is achievable
Match with :
JST series
Country of manufacturer :
China
Description

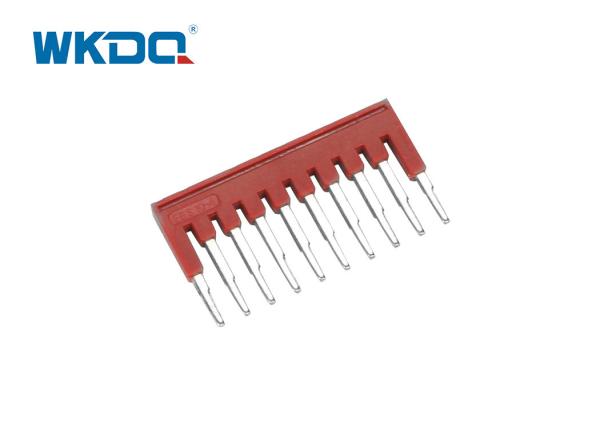

FBS Plug in Terminal Bridge

FBS 10-4 Spring Clamp Terminal Block , Compression Terminal Block Plug In Bridge

1. DESCRIPTION

Plug in bridge for ST series terminal blocks is available in different positions.

The spring-loaded terminals are joined to a power contact.

Corrosion-proof contact point.

Stable and low resistance.

Easy to operate.

Saving space,time and labor.

Corrosion-proof contact point.

Reliable gas-tight connection.

All types of materials are guaranteed in quality.

Made from nickel plated brass material with flaming retarding nylon PA66.

Two potentials can be routed in parallel through a terminal point in the double function shaft.

Simply disconnect individual contact tabs from the standard bridge, and bridging between non-adjacent terminal blocks is established.

The contact points can also be marked.

2.TECHNICAL PARAMETERS

Terminal Model No. Fixed bridge Model No.
JST 1.5 FBS 10-4
JST 2.5

FBS 2-5,

FBS 3-5,

FBS 4-5,

FBS 5-5,

FBS 10-5,
JST 2.5-TW
JST 2.5-QUATTRO
JSTTB 2.5
JST 2.5-3L
JST 4

FBS 2-6,

FBS 3-6,

FBS 4-6,

FBS 5-6,

FBS 10-6,
JST 4-TW
JST 4-QUATTRO
JSTTB 4
JST 6 FBS 2-8, FBS 3-8, FBS 4-8, FBS 5-8, FBS 10-8,
JST 10 FBS 2-10, FBS 3-10, FBS 4-10, FBS 5-10, FBS 10-10,
