282-681 6mm Spring Terminal Block Connector Cable Connection CE For Power And Control Wiring
282-681 6mm Spring Terminal Block Connector Cable Connection CE For Power And Control Wiring
282-681 6mm Spring Terminal Block Connector Cable Connection CE For Power And Control Wiring
282-681 6mm Spring Terminal Block Connector Cable Connection CE For Power And Control Wiring
282-681 6mm Spring Terminal Block Connector Cable Connection CE For Power And Control Wiring
282-681 6mm Spring Terminal Block Connector Cable Connection CE For Power And Control Wiring
282-681 6mm Spring Terminal Block Connector Cable Connection CE For Power And Control Wiring
282-681 6mm Spring Terminal Block Connector Cable Connection CE For Power And Control Wiring
282-681 6mm Spring Terminal Block Connector Cable Connection CE For Power And Control Wiring
282-681 6mm Spring Terminal Block Connector Cable Connection CE For Power And Control Wiring
Specifications
Brand Name :
WONKEDQ
Model Number :
282-681
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Method of connection :
Spring-cage connection
Number of conductor :
4
Number of level :
1
Voltage :
800V
Current :
41A
Packing specification :
21.35g/pc, 30PCS/BOX,800PCS/CTN
Description

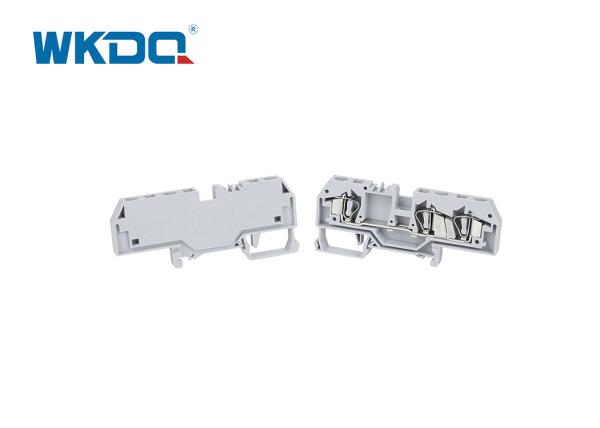

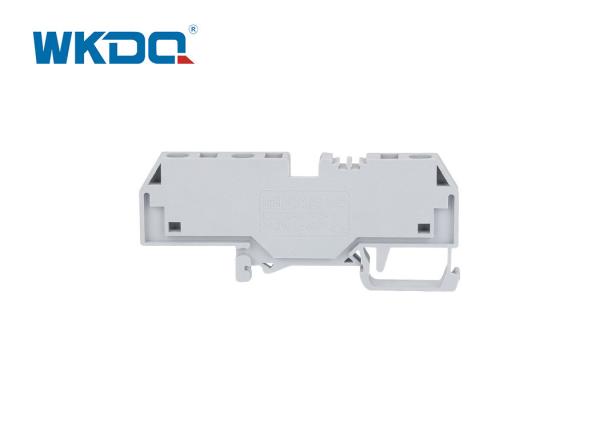

282-681 Din Mount Terminal Block

282-681 6mm Spring Terminal Block Connector Cable Connection CE For Power And Control Wiring

1. DESCRIPTION

The spring cage connection terminal blocks prove spring pressure connection reducing service costs and increasing system uptime and reliability.

Steady structure.

Automatic contact spring.

Long durable time.

Save effort and time

Vibration proof.

Simple and convenient operation.

Shock resistance & Corrosion resistance.

Made from engineering flame retardants nylon PA66 with brass screw metal.

Fast installation, vibration-proof and maintenance-free.

Long term contact quality-independent of operator skill.

With universal foot which can be installed on Standard 35mm Din Rail.

With plug in bridges to create in the terminal center.

All types of accessories available: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.

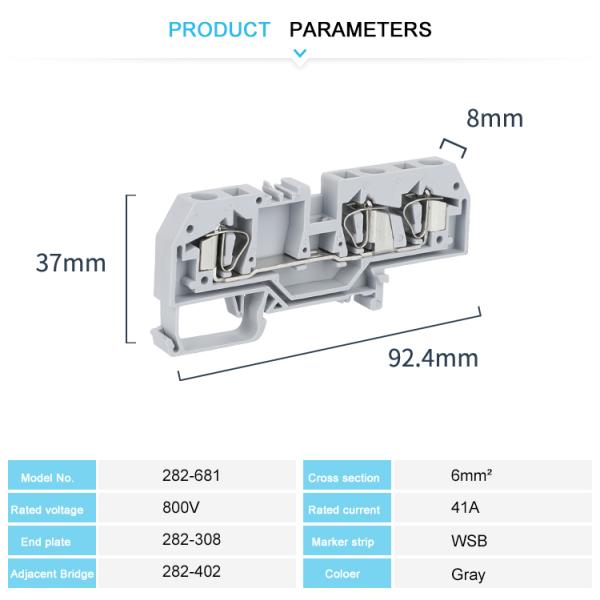

2.TECHNICAL PARAMETERS

Model Number 282-681
Color Grey, other color can be customized
Length/Height/Wide (mm) 92.4/37/8
Connection method Spring-cage connection
Material Nylon PA66, Tin plated conductors
Rated Voltage/Current 800V/41A
Cross section 0.2-6 mm²
Conductor Size 24-10 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 21.35g/pc, 30PCS/BOX, 800PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
