Specifications
Brand Name :
WONKEDQ
Model Number :
282-901
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Part No. :
282-901
Rated voltage :
800V
Rated current :
41A
Logo :
WONKEDQ, logo can be customized
Standard :
IEC 60947-7-1
Length/Height/Wide (mm) :
74/39.5/8
Description

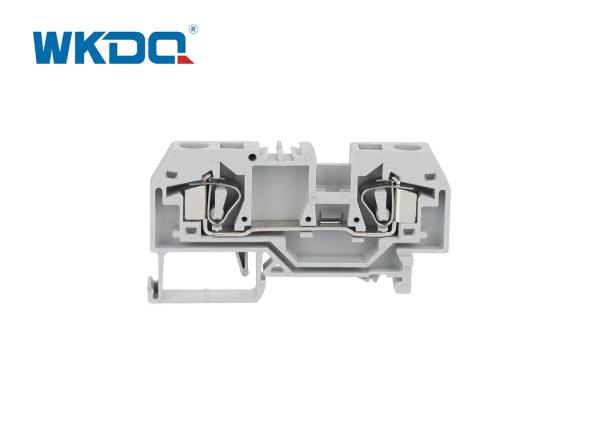

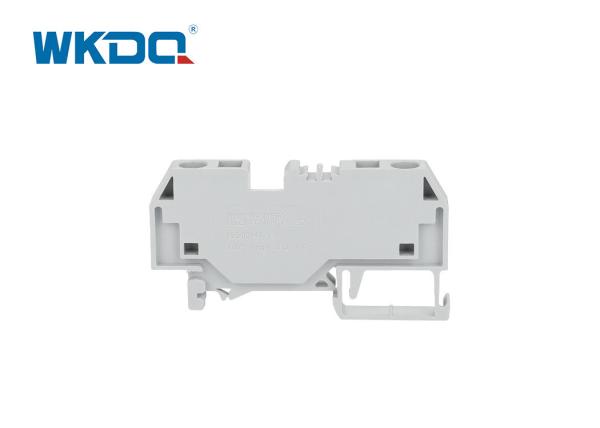

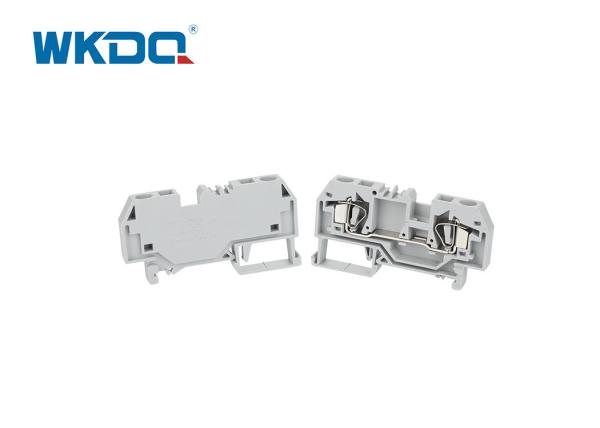

282-901 Din Rail Terminals Spring Clamp

282-901 Spring Clamp Terminal Block Center Marking Vibration 800V Rated Voltage

1. DESCRIPTION

The spring rail-mount terminal blocks are design with Convenient top wiring- the spring clamp is opened with commonly available screwdrivers, enabling the conductor to be easily inserted in the opening of the spring clamp.

Vibration proof.

Long durable time.

Save effort and time.

Automatic contact spring.

Suitable for various applications.

Shock resistance & Corrosion resistance.

Made from Inflaming Nylon PA 66, Brass conductor.

Fast installation, completely vibration-proof and maintenance-free.

Long term contact quality-independent of operator skill.

Mounting foot designed for snap-on”, snap-off” assembly allows for direct mounting on 35mm DIN rails.

Marking system allows for fast and easy circuit identification. Blank, custom, and standard marker strips are available.

2.TECHNICAL PARAMETERS

Model No. 282-901
Color Grey, other color can be customized
Length/Height/Wide (mm) 74/39.5/8
Connection method Clamp cage connection
Material Inflaming Nylon PA66
Rated Voltage/Current 800V/41A
Cross section 0.2-6 mm²
Conductor Size 24-10 AWG
Mounting Type NS 35
Standard IEC 60947-7-1
1000LOGO Customized logo can be made
Packing Detail 16.23g/pc, 50PCS/BOX,1000PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
3.RELATED PRODUCTS

  • Anti Flaming DIN Rail Terminal Block

  • Installation Rail Mount Terminal Blocks

  • Terminal Insertion Bridge
