Specifications
Brand Name :
WONKEDQ
Model Number :
280-681
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Logo :
WONKEDQ,other brands can be customized
Rated voltage :
800V
Rated current :
24A
Packing unit :
80PCS/BOX,3200PCS/CTN
Net weight :
7.78g/pc
Approvals by :
CE/RoHS/CQC/ISO 9001
Description
280-681 Spring Clamp Terminal Block

280-681 Spring Type Terminal Block 24A Rated Current Brass Screw Metal Easily Inserted

1. DESCRIPTION

Convenient top wiring, the spring clamp is opened with commonly available screwdrivers, enabling the conductor to be easily inserted in the opening of the spring clamp.

Vibration proof.

Time-saving design.

Automatic contact spring.

Suitable for various applications.

Shock resistance & Corrosion resistance.

Fast installation, completely vibration-proof and maintenance-free.

Made from engineering flame retardants nylon PA66 with brass screw metal.

This multi-conductor terminal blocks have two termination points on each side.

Also can create potential distribution by Bridging at the center of the terminals.

Standard foot can snap easily onto the DIN Raill.

All types of accessories available: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.

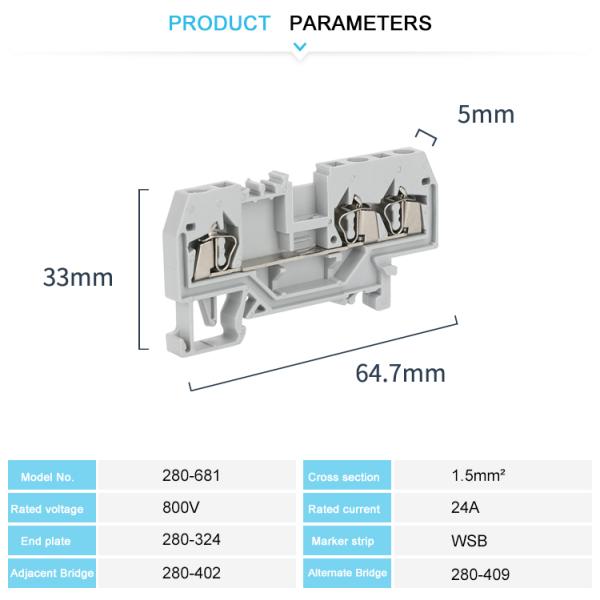

2.TECHNICAL PARAMETERS

Model Number 280-681
Color Grey, other color can be customized
Length/Height/Wide (mm) 64.7/33/5
Connection method Spring-cage connection
Material Nylon PA66
Rated Voltage/Current 800V/24A
Cross section 0.08-2.5 mm²
Conductor Size 28-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 7.78g/pc, 80PCS/BOX, 3200PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
