Specifications
Brand Name :
WONKEDQ
Model Number :
280-837
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Color of housing :
Yellow/Green, colors can be ordered
Method of connection :
Spring-cage connection
Length :
76
Height :
34.8
Wide :
5
Wire cross section :
0.08-2.5 mm²
Description

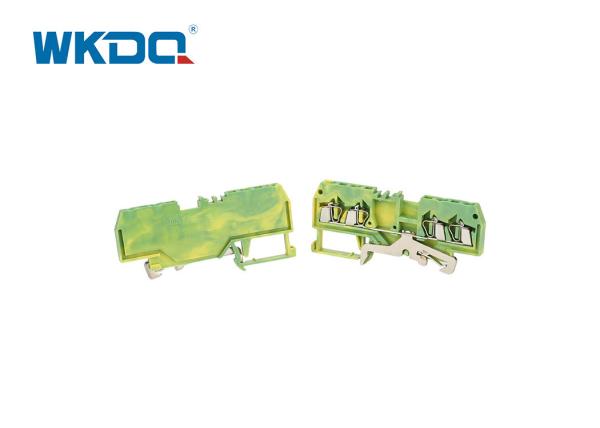

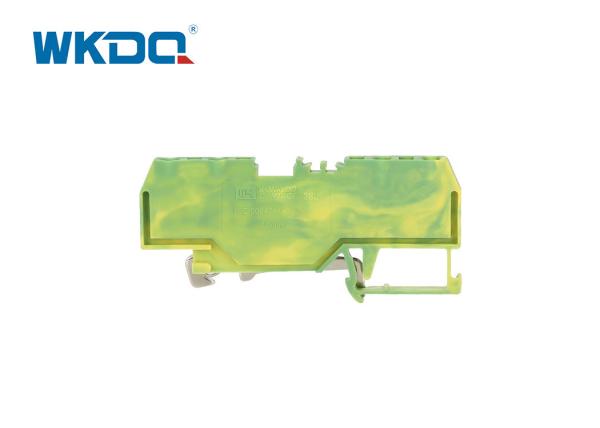

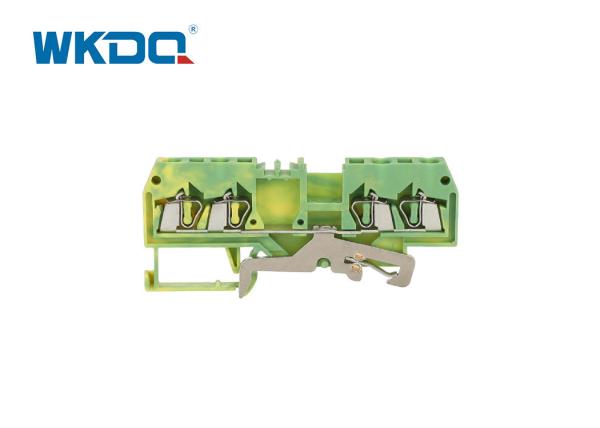

280-837 4 Conductor Ground Terminal Block

280-837 Clip Spring Cage Connection Terminal Block Green Color Flaming Retarding Nylon

1. DESCRIPTION

The Protective Terminal Blocks have a contact foot in the bottom level,establishing direct contact to the carrier rail, also can be easily snapped onto the DIN Rails.

Green and yellow shell.the internationally accepted color designation for ground circuits.

High safety.

Vibration proof.

Steady structure.

Automatic contact spring.

Safe and reliable connection.

Safe and stable performance.

Shock resistance & Corrosion resistance.

Made from safe and high quality material.

Made from flaming retarding Nylon PA 66 with Copper conductors.

Single layer spring terminal blocks are suitable for DIN Rail 35mm.

The front entry design can allow operate in a small space.

The marking strips can be customized in different contents.

OEM Service provided.

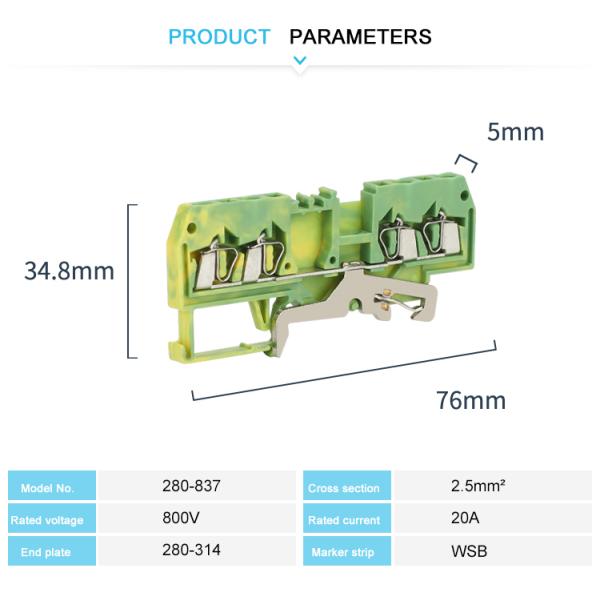

2.TECHNICAL PARAMETERS

Model Number 280-837
Color Yellow/Green, other color can be customized
Length/Height/Wide (mm) 76/34.8/5
Connection method Spring-cage connection
Material Nylon PA66
Rated Voltage/Current 800V/20A
Cross section 0.08-2.5 mm²
Conductor Size 28-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 12.96g/pc, 65PCS/BOX, 1625PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
