Specifications
Brand Name :
WONKEDQ
Model Number :
285-635
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Model number :
285-635
Material of conductor :
Tin plated copper conductor
Material of housing :
Anti-flaming Nylon PA66
Cross section :
6-35mm²
Rail size :
DIN Rail NS 35mm
Logo :
WONKEDQ,others can be ordered
Description
285-635 Intergrated Plate Terminal Block

285-635 Red Copper Two Conductor Spring Clamp Terminal Block Installation Side And Center Marking

1. DESCRIPTION

A terminal block is necessary in any electrical or electronic circuit, because this is for where the lines are terminated or distributed. They come in different configurations, mainly in screw and spring types. Used in both power and electronic circuits, they are available in different sizes, depending on the number of need to connect wires and their sizes.

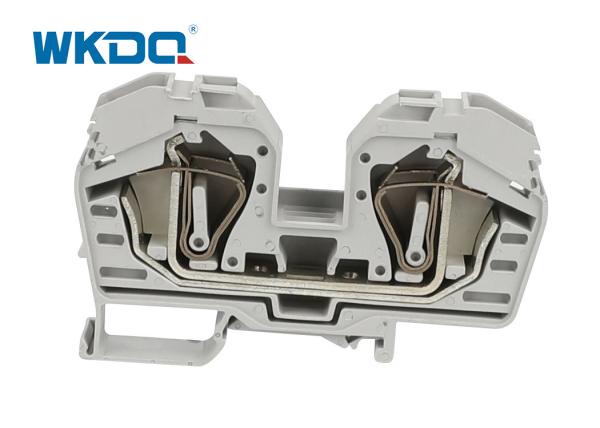

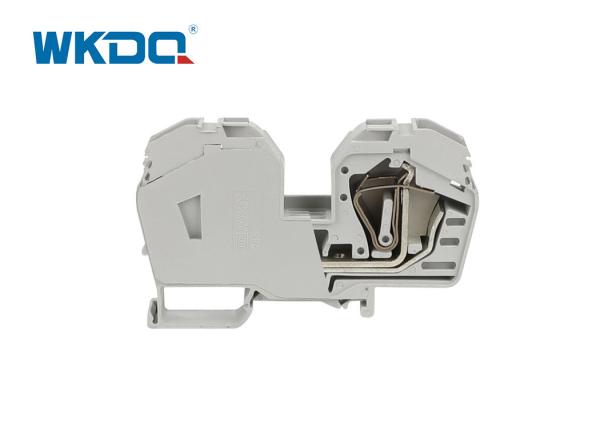

WonkeDQ Series feed through terminal blocks are tension clamp connection style and are DIN rail mounted. The tension clamp can easily be opened with a small screwdriver inserted next to the wire entry, then slip in the field wire and remove the screwdriver for a reliable and secure connection.

Vibration proof.

Automatic contact spring.

Long durable time.

Maintenance-free.

Simple and convenient operation.

Suitable for various applications.

Save effort and time.

Have a long-standing reputation for ensuring safe and maintenance-free system operation in a wide variety of industrial applications and modern building installations.

Made from flaming retarding Nylon PA 66, Tin plated copper.

2-conductor through terminal block with integrated end plate

Tension Clamp for Fast Wire Termination and Reliable Secure Connection

Full Line of Accessories: End Plates, Cross Connectors and Marking Tags

Stocked in Colors Gray, Blue and Red; Also Available in Yellow, Beige and Green

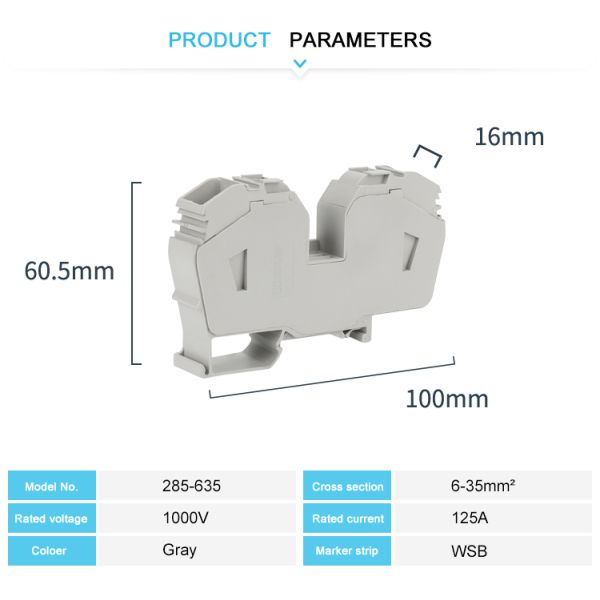

2.TECHNICAL PARAMETERS

Model No. 285-635
Color Grey, other color can be customized
Length/Height/Wide (mm) 100/60.5/16
Connection method Spring-cage connection
Material Nylon PA66
Rated Voltage/Current 1000V/125A
Cross section 6-35mm²
Conductor Size 8-2 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 36.31g/pc
Certification CE/RoHS/CQC/ISO 9001
