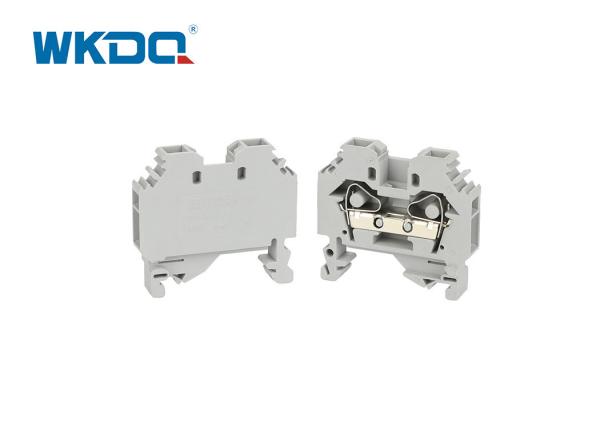

282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color
282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color
282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color
282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color
282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color
282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color
282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color
282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color
282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color
282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color
Specifications
Brand Name :
WKDQ
Model Number :
282-101
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Length :
46.5
Wide :
8
Height :
42
Amount of conductor :
2
Packing unit :
50PCS/BOX,1400PCS/CTN
Net weight :
11.08g/pc
Description
282-101 2 conductor through Terminal Block

282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry

1. DESCRIPTION

The spring feed through terminal blocks is based on spring clamp connection , an electrical connection is established by clamping the striped conductors. Especially used in the automotive and commercial market including railway industries.

Long durable time.

Vibration proof.

Shock resistance.

Steady structure.

Automatic contact spring.

Corrosion-proof contact point.

Space-saving and time-saving design.

Reduce the installation time and speed the wiring.

All types of accessories with high quality.

Made from PA 66 with corrosion-resistant copper metal.

Fast installation, completely vibration-proof and maintenance-free.

With universal foot for 35mm Din Rail.

Easy for mounting or dismounting.

All types of accessories available: End cover, End Stopper,Marker strip, Bridges, etc.

2.TECHNICAL PARAMETERS

Model Number 282-101
Color Grey, other color can be customized
Length/Height/Wide (mm) 46.5/42/8
Connection method Spring-cage connection
Material Nylon PA66
Rated Voltage/Current 800V/41A
Cross section 0.5-6 mm²
Conductor Size 24-10 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 11.08g/pc, 50PCS/BOX,1400PCS/CTN
Certification CE/RoHS/CQC/ISO 9001

282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color

282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color
