Specifications
Brand Name :
WONKEDQ
Model Number :
284-907
Certification :
T/T, Paypal, Western Union, etc
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Length :
74
Height :
39.5
Wide :
8
Packing detail :
50PCS/BOX,1000PCS/CTN
Weight :
22.18/pc
Standard :
IEC 60947-7-1
Description

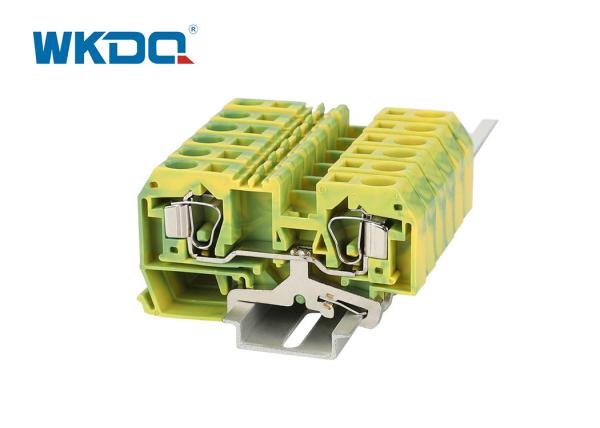

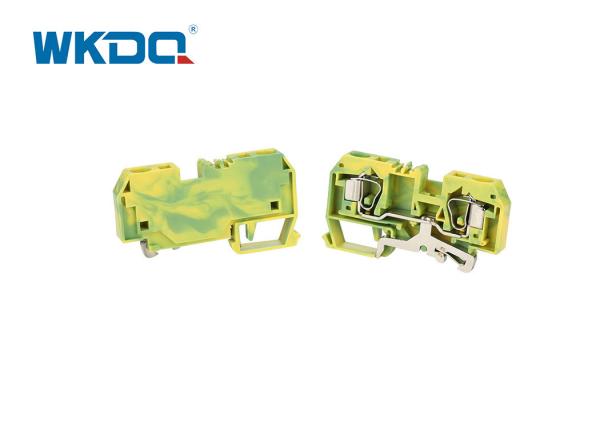

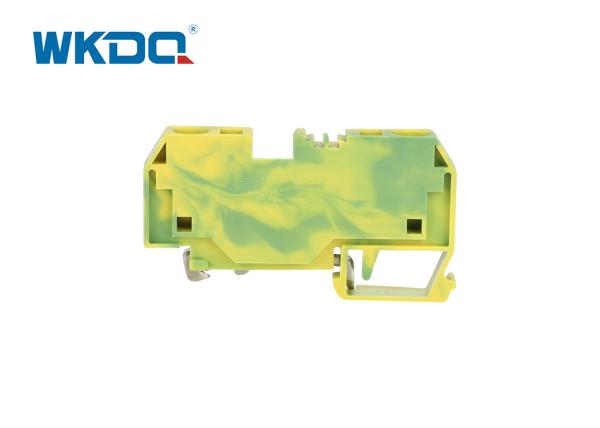

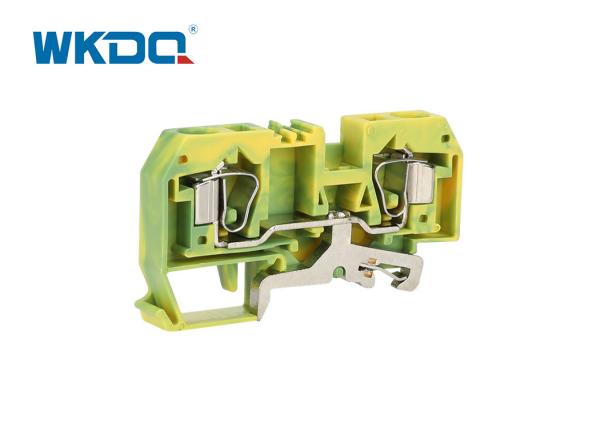

284-907 Din Mount Spring Terminal Blocks

284-907 Protective Spring Clamp Terminal Block Tin Plated Brass Body Front Entry

1. DESCRIPTION

The spring cage terminal blocks are designed to avoid the vibration. The Ground terminal blocks can be installed on the DIN Rail tightly without any tool.Green and yellow shell. The internationally accepted color designation for ground circuits.

Steady structure.

Fast and safe installation.

Long durable time.

Simple and convenient operation.

Shock resistance & Corrosion resistance.

Suitable for various applications.

Reduce the installation time and speed the wiring.

Made from Inflaming Nylon PA 66, Tin plated brass.

Connecting capacity from 1.5 to 10 mm.

Maintenance free vibration proof connection.

Front entry design-save time.

Universal mounting feet.

2.TECHNICAL PARAMETERS

Model Number 284-907
Color Yellow/Green, other color can be customized
Length/Height/Wide (mm) 77/42/10
Connection method Spring-cage connection
Material Nylon PA66
Rated Voltage/Current 800V/57A
Cross section 0.2-10mm²
Conductor Size 24-8 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WonkeDQ, Customized LOGO is accept
Packing Detail 32.25g/pc, 25PCS/BOX, 700PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
