Specifications
Brand Name :
WONKEDQ
Model Number :
281-657
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Length :
73
Height :
36.5
Wide :
6
Conductor cross section AWG min :
12
Cross section :
0.08-4 mm²
Description

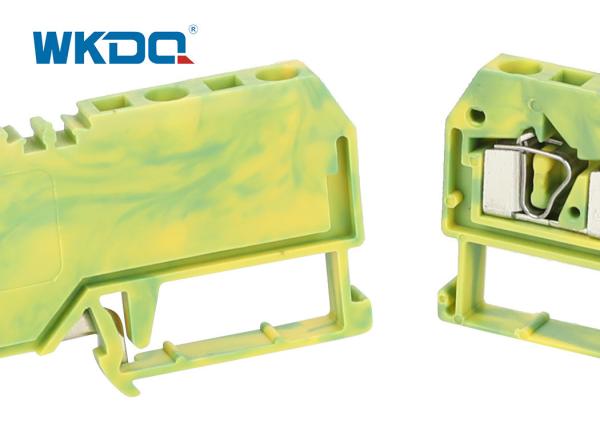

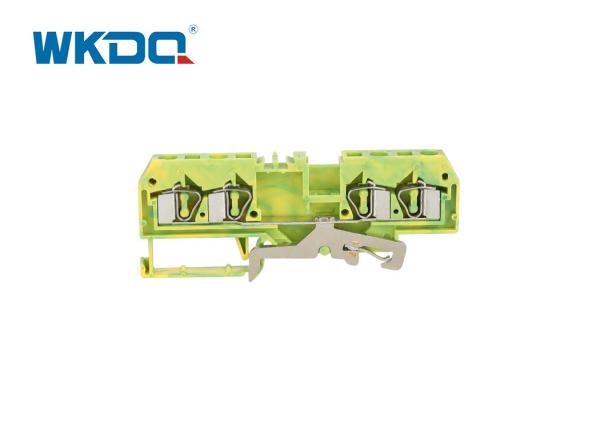

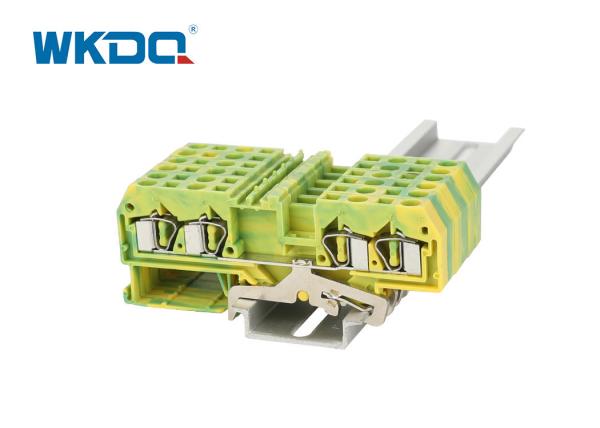

281-657 Ground Spring Terminal Block

281-657 Spring Clamp Terminal Block Snap On Installation Large Labeling Area

1. DESCRIPTION

The connect conductors of spring cage terminal blocks are vibration resistant, gas-tight, stable for long term using. The grounding terminal blocks have the same design with the feed through terminal.

Steady structure.

Long durable time.

Shock resistance.

Vibration proof.

Save effort and time.

Convenient and safe operation.

All types of materials are guaranteed in quality.

Green and yellow shell.the internationally accepted color designation for ground circuits.

Made from anti flaming Nylon PA 66,Copper conductors

No restriction on cross sections, conductors with ferrules and solid cable are all accept.

With the standard fee for DIN Rail 35mm.

A range of accessories: Marking, bridges, end covers, end clip, etc.

2.TECHNICAL PARAMETERS

Model Number 281-657
Color Yellow/Green, other color can be customized
Length/Height/Wide (mm) 86.5/36.5/6
Connection method Spring-cage connection
Material Nylon PA66
Rated Voltage/Current 800V/26A
Cross section 0.08-4 mm²
Conductor Size 28-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WonkeDQ, Customized LOGO is accept
Packing Detail 16.9g/pc, 50PCS/BOX,1400PCS/CTN
Certification CE/RoHS/CQC/ISO 9001

3.RELATED PRODUCTS

  • DIN Rail High Current Terminal Block

  • Knife Disconnect Terminal Block

  • Terminal Fixed Bridge

  • DIN Rail Double Layer Terminal

  • DIN Rail Wiring Terminal Block

  • Terminal Block End Cover
