Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket
Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket
Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket
Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket
Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket
Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket
Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket
Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket
Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket
Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket
Specifications
Brand Name :
WONKEDQ，WKDQ
Model Number :
WK11
Certification :
CE/RoHS/TUV/ISO 9001
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
Western Union, L/C, T/T, MoneyGram,Paypal
Supply Ability :
1000000 Pieces/Month
Delivery Time :
2-7 work days
Packaging Details :
box
Interface Type :
Threaded Coupling
Contact surface material :
Brass with Gold Plating
Shell :
PC, Nylon66, Fire Resistance: V-0
Specification :
Cable outer diameter range: 6-10mm
Temperature Range :
-40°C ~ +85°C
Termination :
Solder
Customized :
Opposite Direction Can Be Customized
Mating Cycle :
500
Description

WK17 Waterproof Circular Multipole Docking Connector

Round form sealed connector, which is designed for use in harsh conditions to provide a safe and reliable connection.

In the harsh environment can provide a safe and reliable connection; in dust and water conditions can heavily use.

Insulated flame retardant nylon casing, anti-oxidation and no rust, good sealing.

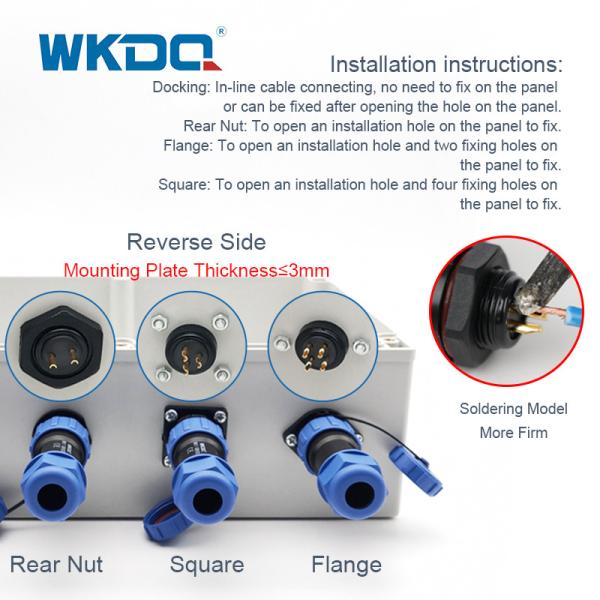

Waterproof IP68, plastic shell, threaded coupling, panel mount, quick disconnect, solder, angled cable plug & panel mount socket.

Coupling Threaded Coupling
Shell material PC, Nylon66, fire resistance: V-0
Insert material PPS, max temperature 260 ℃
Contact material Brass with gold plating
Termination Solder
Cable outer diameter range 6-10mm
IP rating IP68
Mating cycle 500
Temperature range -40℃ ~ + 85℃
Insulation resistance 2000 M Ω

Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket

Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket

Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug SocketCircular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug SocketCircular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug SocketCircular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug SocketCircular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug SocketCircular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug SocketCircular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug SocketCircular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug SocketCircular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug SocketCircular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug SocketCircular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug SocketCircular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket

Circular Multipole Wire Waterproof Connector Thread Solder Wk17 Docking Pin Plug Socket

FAQ

Q1 : Are you manufacturer ?
We are factory specializing in Terminal Blocks, Fans Filters Since 1999.
Q2: Can you make customized products or packing?
Of course, our R&D Depart. have rich experience in OEM, ODM service. Package can be customized as demanded.
Q3:What about your MOQ?
We keep large stocks for standard product with Fast Delivery, no MOQ required.
Q4: Do you have any test certification?
Products approved by CE, RoHs, etc. Our factory passed by SGS and CQC ISO9001 Qualification.
Q5: How about the after-sale service? What's the warranty terms?
If you have any problems after sales, we'll bring out solution within 24 hours. Quality warranty is 1 year, for problems happened over 1 year, we can also assist to solve.
