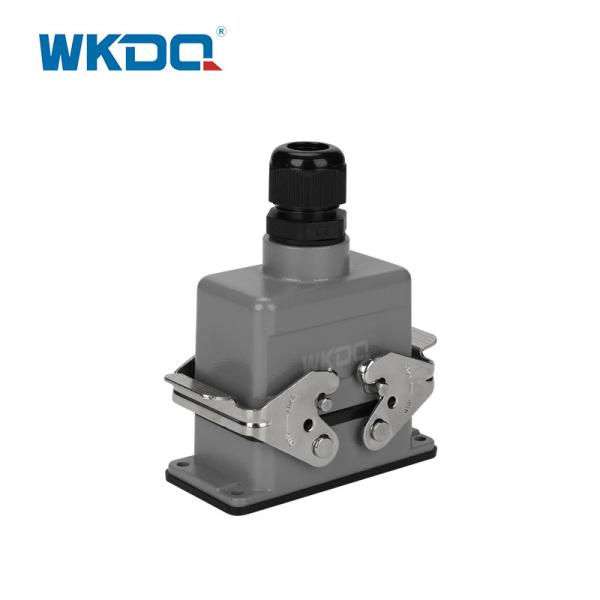

Anti Corrosion IP65 Waterproof Electrical Connectors WHE06D
Anti Corrosion IP65 Waterproof Electrical Connectors WHE06D
Anti Corrosion IP65 Waterproof Electrical Connectors WHE06D
Anti Corrosion IP65 Waterproof Electrical Connectors WHE06D
Specifications
Brand Name :
WKDQ
Model Number :
WHE06D
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
Zhejiang , China
MOQ :
1PC
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Model No. :
WHE06D
Housing material :
STEEL+PLASTIC
Place of origin :
Zhejiang , China
Description

Heavy Duty connectors designed for harsh environments

Heavy Duty Connectors are rectangular industrial connectors designed to transmit power, data and signal in the toughest of conditions. In environments with vibrations, risk of dust, temperature challenges and mechanical impact, our connectors provide a reliable solution with rock fall safe aluminum enclosures with protection degree IP65 up. Our connectors range from 6 Pin to 48 Pin are available.

Monoblock, combined and modular inserts with up to 10 pins in standard connector and up to 48 pins in high density .

Space saving – more than 30 standardized modules, enabling combining various technologies for power, signal and data transmission in a single connector (RJ45, D-Sub, USB, Quint, Fiber optic)

Easy assembly with available options for blind mating in automated applications and applications with limited direct access and visibilty.

Low halogen material inserts reducing impact of potential damages in equipment during fire

Lightweight and compact thermoplastic IP65 and HQ connectors for power, signal and power/signal mixed connections, easy to use and safe with a single locking lever closure

●IP 65 Waterproof

●Anti-rust and anti corrosion

●Nickel Plating

●Cable glands with normal or multiple sealing

●The contacts are made by high quality brass, with silver or gold plated.

No. PART NO. Entry Side Number of contact A
(mm)		 B
(mm)		 C (mm) D (mm) E (mm) F (mm) G (mm)
Heavy-duty connector
Voltage/Current: 500V/16A
Surface: Sliver-plated
Contact resistance: ≤1m ΩCross section: 1.0-2.5mm² (AWG 18-14)
Tightening torque: 0.5Nm
Stripping lenngth: 7mm		 Anti Corrosion IP65 Waterproof Electrical Connectors WHE06D
1 WHE06C Side entry 6 80.0 43.0 52.2 35.0 32.0 70.0 4.3
2 WHE06D Top entry 6 80.0 43.0 52.2 35.0 32.0 70.0 4.3
3 WHE10C Side entry 10 93.0 43.0 65.2 35.0 32.0 83.0 4.3
4 WHE10D Top entry 10 93.0 43.0 65.2 35.0 32.0 83.0 4.3
5 WHE16C Side entry 16 113.0 43.0 85.5 35.0 32.0 103.0 4.3
6 WHE16D Top entry 16 113.0 43.0 85.5 35.0 32.0 103.0 4.3
7 WHE24C Side entry 24 140.0 43.0 112.2 35.0 32.0 130.0 4.3
8 WHE24D Top entry 24 140.0 43.0 112.2 35.0 32.0 130.0 4.3
9 WHE32C Side entry 32 113.0 80.5 86.0 73.0 60.0 103.0 4.5
10 WHE32D Top entry 32 113.0 80.5 86.0 73.0 60.0 103.0 4.5
11 WHE48C Side entry 48 140.0 80.5 113.0 73.0 60.0 130.0 4.5
12 WH48D Top entry 48 140.0 80.5 113.0 73.0 60.0 130.0 4.5

Anti Corrosion IP65 Waterproof Electrical Connectors WHE06D

Anti Corrosion IP65 Waterproof Electrical Connectors WHE06D

Anti Corrosion IP65 Waterproof Electrical Connectors WHE06D

Anti Corrosion IP65 Waterproof Electrical Connectors WHE06D

Anti Corrosion IP65 Waterproof Electrical Connectors WHE06D

Anti Corrosion IP65 Waterproof Electrical Connectors WHE06D
