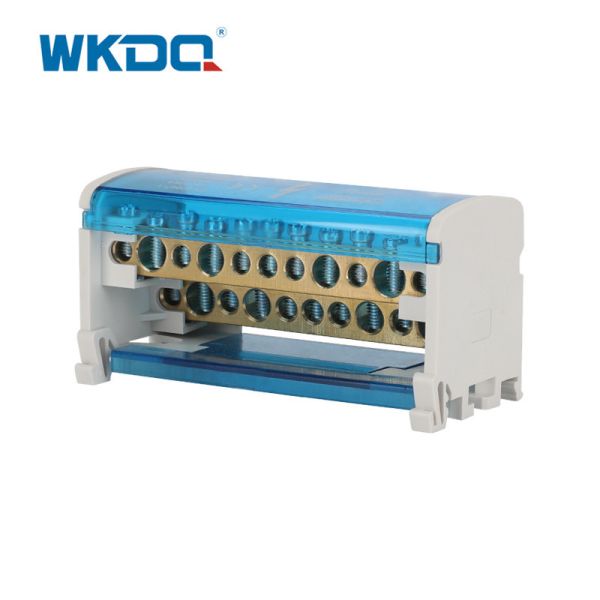

UK 211 DIN Rail Power Distribution Terminal , Electrical Power Distribution Block
UK 211 DIN Rail Power Distribution Terminal , Electrical Power Distribution Block
UK 211 DIN Rail Power Distribution Terminal , Electrical Power Distribution Block
UK 211 DIN Rail Power Distribution Terminal , Electrical Power Distribution Block
UK 211 DIN Rail Power Distribution Terminal , Electrical Power Distribution Block
UK 211 DIN Rail Power Distribution Terminal , Electrical Power Distribution Block
UK 211 DIN Rail Power Distribution Terminal , Electrical Power Distribution Block
UK 211 DIN Rail Power Distribution Terminal , Electrical Power Distribution Block
Specifications
Brand Name :
WONKEDQ，WKDQ
Model Number :
WKH 211
Certification :
CE, RoHs, CQC,etc
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Origin :
China
Logo :
Customized logo is available
Color :
Grey / Clear Blue
Connecting :
Screw Terminal Blocks
Type :
DIN Rail Terminal Blocks.
Poles :
Multi output
Description

UK 211 DIN Rail Power Distribution Terminal

WKH 211 Installation 35mm Din Rail Terminal Block Power Distribution

The primary function of a distribution block is to supply power more efficiently to a series of devices. The secondary function is to isolate short circuit incidents to prevent complete shutdown from occurring. Distribution blocks can handle a range of frequencies and currents. Using distribution blocks requires only one large wire on the input side to link each connected device back to the power source. This eliminates the need for separate wiring of each device.

  • According to the different mounting environment, it can be mounted by standard U-type DIN rail or panel screw mounted.
  • Brass Conductor.
  • Simple and quick operating.
  • Professional power design.
  • Convenient single pole or multi-poles distribution.
  • Waterproof IP 20 with removable transparent cover.
  • Reasonable Design save the installation space.
  • Separate incoming and outgoing,distinguish internal cable clearly.
  • There are fence between the terminals to prevent contact and short circuit.
  • Single or multiple pole configurations in the most compact footprint. Allows users to build smaller or higher density panels.
  • Increased productivity thanks to reduced wiring, inventories, hardware and assembly costs.
  • Space saving: compact.
  • Tinned copper block: high conductivity.
  • Visual inspection of wire: confirmation of connection.
  • Hinged or removable cover: easy wiring.

Technical Parameters

Model No. WKH 211
Color Blue and Gray
Length/Height/Wide (mm) 100/50/45
Connection method Screw connection
Material Flame resistant Nylon PA66, brass conductor
Rated Voltage/Current 500V/125A
Quantity of Hole 2X11
Dimension for Brass Conductor 6.5*12mm
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Certification CE/RoHS/CQC/ISO 9001
