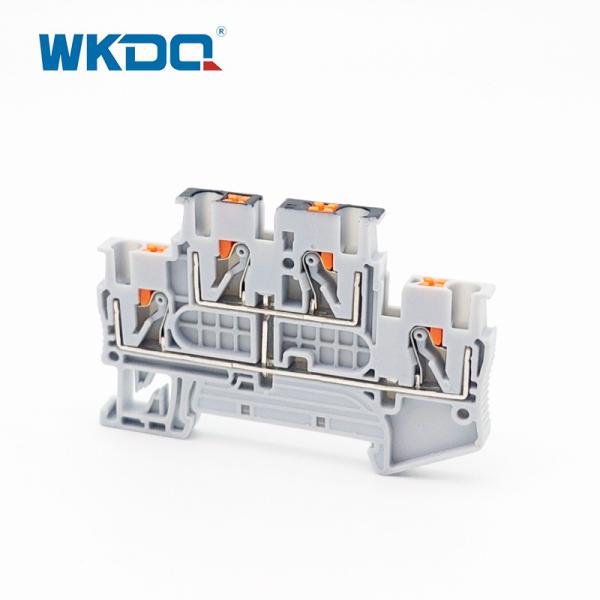

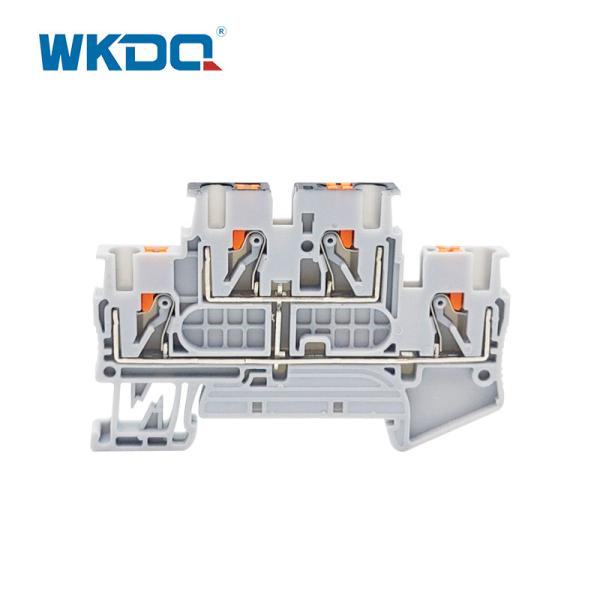

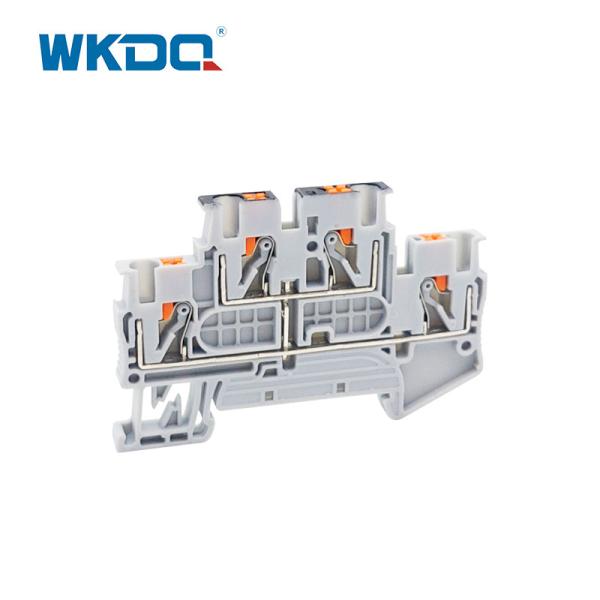

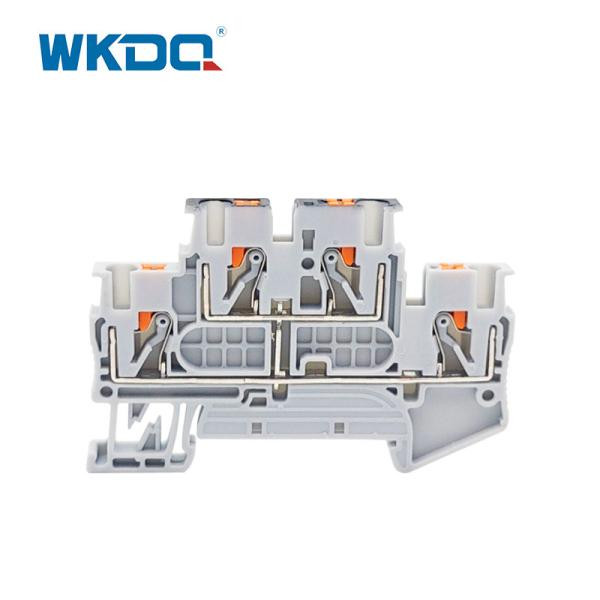

High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
High Quality Grey JPTTB 2.5-PV Push in Universal Terminal Block Ce Certified
Specifications
Brand Name :
WONKEDQ，WKDQ
Model Number :
JPTTB 2.5-PV
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7days
Packaging Details :
Box
Model No. :
JPTTB 2.5-PV
Color :
Grey,Blue, other color can be customized
Connection method :
Push-in connection
Country of origin :
China
Standard :
IEC 60947-7-1
Material :
Flame resistant Nylon PA66 V0
Description

JPTTB 2.5-PV

High Quality JPTTB 2.5-PV Push in wire Terminal Block Ce Certified

1. DESCRIPTION:

DIN Rail Mounted Feed Through Terminals in PA 66 Housing offers the complete range suitable for all control and power application. The proven spring clamp design offers high contact force and is easy to use. The special foot design provides the slot for easy mounting and removal of a single terminal from the stack, using a screwdriver.The conductor can be easily released – without special tools. With space savings in mind, the terminal blocks are small, adjustable and provide maximum flexibility and easy installation. 

l Includes two-level or three-level terminal blocks for high density wiring applications

l To achieve electrical interconnection

l Flexibility: snap onto symmetrical and asymmetrical rails

l available in addition to our generic grey to help you quickly identify any specific functions.

Technical Parameters

Model No. JPTTB 2.5-PV
Color Grey,Blue, other color can be customized
Length/Height/Wide (mm) 68/47.5/5.2
Connection method Push-in connection
Material Flame resistant Nylon PA66 V0
Rated Voltage/Current 500V/22A
Cross section, solid/soft Cable 0.14-4mm²/0.14-2.5mm²
Conductor Size 26-12AWG
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 10.23g/pc, 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
