Specifications
Brand Name :
WONKEDQ
Model Number :
JST4-HESILED
Certification :
CE, RoHs, CQC,etc
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Type No. :
JST4-HESILED
Connection type :
Spring Clamp Connection
Housing material :
Flame retard Nylon PA66
Brand names :
WONKEDQ,others are available
Color :
Grey, Black,
Rated voltage/current :
300V，10A
Description

ST4-HESILED Fuse Led Terminal Block Spring Clamp Wiring

1. DESCRIPTION

Wonke Spring cage fuse terminal block with 24VDC or 220VAC Led. Safe way to insert and extract the fuse. Connecting wire more quickly and easily than screw type fuse termianl block.

Space-saving design.

Stable and low contact resistances.

Easy mounting and dismounting from the terminal rail.

Perfectly suitable for electrical machine control systems.

Made from Inflaming retarding PA 66 with Copper metal. .

Hinged -arm fuse blocks for better over current protection.

The terminal blocks mount directly on DIN rail.

A wide range of accessories: End covers, End Stoppers, Partition plates, marker trip, fixed bridge, Separating plates, etc.

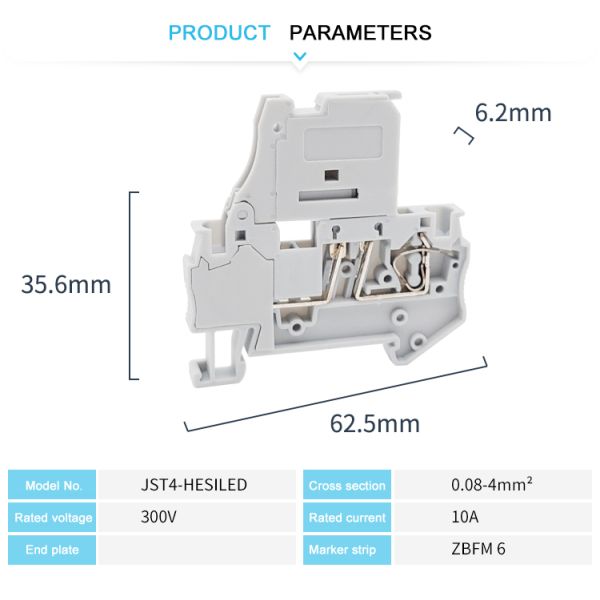

2.TECHNICALPARAMETERS

Model No. JST4-HESILED Fuse terminal block with led
Color Black, Gray.
Length/Height/Wide (mm) 62.5 / 35.6 / 6.2 mm
Connection method Spring cage connection
Material Nylon PA66
Rated Voltage/Current 300V / 10A
Cross section, solid/soft Cable 0.08-4 mm² / 0.08-4 mm²
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized LOGO can be made.
Packing Detail 17.35g/pc, 50PCS/BOX,1000PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
