Specifications
Brand Name :
WKDQ
Model Number :
JMBK3/E-Z
Certification :
CE, RoHs, CQC,etc
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Mounting Type :
DIN Rail NS 15
Material :
Flame resistant Nylon PA66, Nickel plated brass conductor
Part NO. :
JMBK3/E-Z
conductor dimension :
0.2-2.5 mm²
Way of connection :
Screw connection
Length/Height/Wide (mm) :
L30.2/H26.6/W5.2
Description

2.5 mm² Screw Terminal Block for Din Rail 15 mm width

NS15 Din Rail Terminal Blocks Screw Type Brass Conductor JMBK3/E-Z

1. DESCRIPTION

JMBK3/E-Z screw connection terminal blocks mounted on 15mm width din rail which is vibration resistant, maintenance free. It can provide a common area to neatly connect multiple wire connections. Our design terminal blocks organize your wire connections with a high quality and reliable screw terminal block.

Material is industrial PA 6.6 with flaming retarding and Brass.

Strong contact force and excellent connection.

Easy mounting.Reduce the installation costs and speed the wiring.

Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.

Assembly for Solar Combiner or Power Distribution.

A variety of bridges with very high quality are available to choose from, making it easy to perform a variety of power distribution tasks.Therefor, it is durable enough.

All the terminal blocks can be installed on DIN Rail NS 15mm.

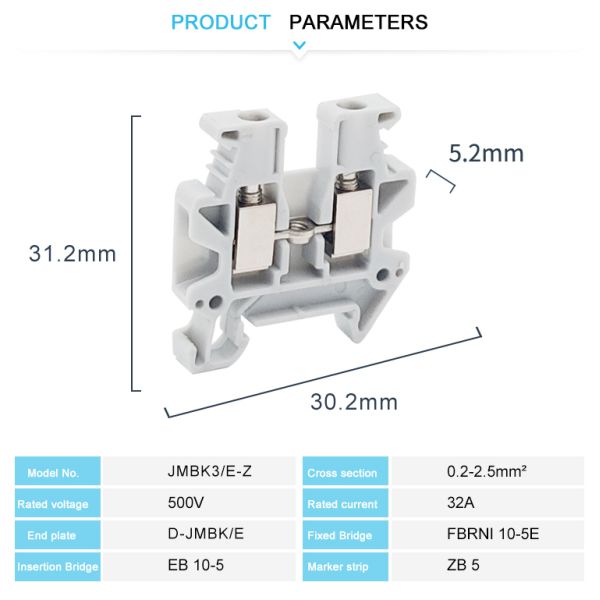

2.TECHNICAL PARAMETERS

Part No. JMBK3/E-Z
Color Grey, other color can be customized
Length/Height/Wide (mm) L30.2/H26.6/W5.2
Connection method Screw connection
Material Nylon66/ PA66
Rated Voltage/Current 500V/32A
Cross section, solid/soft Cable 0.2-2.5 mm²
Conductor Dimension 24-10 AWG
Mounting Type DIN Rail 15mm
Standard IEC 60947-7-1
LOGO OEM provided
Packing Detail 4.45g/pc, 100PCS/box
Certification CE/RoHS/CQC/ISO 9001
