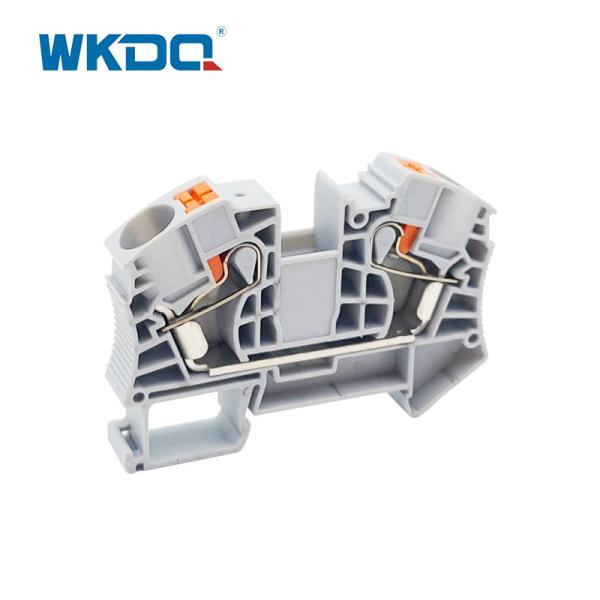

JPT 16 Din Rail Push In Terminal Block Connector 16mm2
JPT 16 Din Rail Push In Terminal Block Connector 16mm2
JPT 16 Din Rail Push In Terminal Block Connector 16mm2
JPT 16 Din Rail Push In Terminal Block Connector 16mm2
JPT 16 Din Rail Push In Terminal Block Connector 16mm2
JPT 16 Din Rail Push In Terminal Block Connector 16mm2
JPT 16 Din Rail Push In Terminal Block Connector 16mm2
JPT 16 Din Rail Push In Terminal Block Connector 16mm2
JPT 16 Din Rail Push In Terminal Block Connector 16mm2
JPT 16 Din Rail Push In Terminal Block Connector 16mm2
JPT 16 Din Rail Push In Terminal Block Connector 16mm2
JPT 16 Din Rail Push In Terminal Block Connector 16mm2
Specifications
Brand Name :
WKDQ
Model Number :
JPT1 6
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Brand names :
WKDQ,,other brand is available
Color of housing :
Grey, Blue, other color can be customized
Material of housing :
Non-flammable Nylon PA66,
Material of conductor :
Tin plated brass conductor
Cross section,solid cable :
0.5-25mm²
Cross section,soft cable :
0.5-16mm²
Packing unit :
20PCS/BOX
Weight :
25g/pc
Description

JPT 16 Din Rail Push In Terminal Block Connector 16mm2

1. DESCRIPTION

Push-in connection terminal blocks reduce the wiring time,and can support simply wiring in places where is only a little space available. You don't need any tool, just insert the cable is ok. Therefore,allow you to benefit from faster installation times and much higher productivity.

Simple and convenient operation.

Build-in push button.

Shock resistance & Corrosion resistance.

The insertion force can be saved by 50%.

Suitable for various applications.

Made from anti-flaming Nylon PA 66, Copper material

Connecting, build bridges and labeling large or small conductor cross sections easy for feed through terminal blocks.

Wiring can be handled in a limited space thanks to the compact design and front entry connection.

With universal foot which can be installed on 35mm Standard Din Rail.

Build electric potential distribution by using plug-in bridges in the terminal center.

Available in all accessories: End covers, End Stoppers,Marker strips, Marker carrier, Plug-in bridge, etc.

2.TECHNICAL PARAMETERS

Model Number JPT 16
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm)
L75.4/H52.6/W12.2
Connection method Push in connecting
Material Nylon PA66
Rated Voltage/Current 1000V/57A
Cross section, solid/soft Cable 0.5-25mm² / 0.5-16mm²
Conductor Size 20-5 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 25g/pc, 20PCS/BOX
Certification CE/RoHS/CQC/ISO 9001

JPT 16 Din Rail Push In Terminal Block Connector 16mm2

JPT 16 Din Rail Push In Terminal Block Connector 16mm2

JPT 16 Din Rail Push In Terminal Block Connector 16mm2JPT 16 Din Rail Push In Terminal Block Connector 16mm2JPT 16 Din Rail Push In Terminal Block Connector 16mm2
