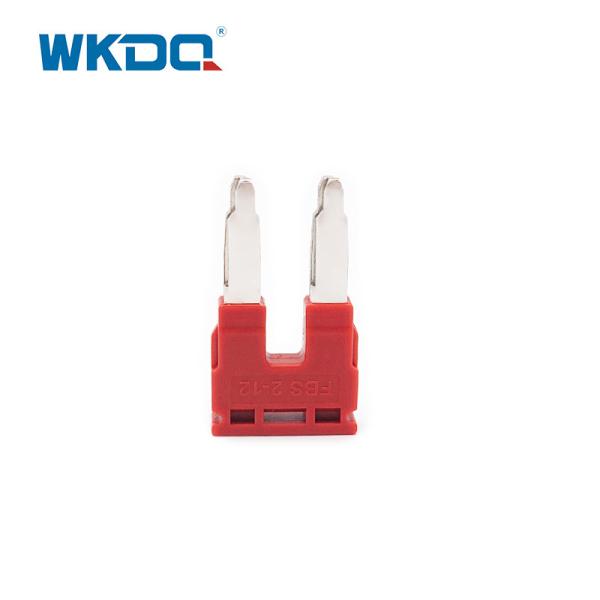

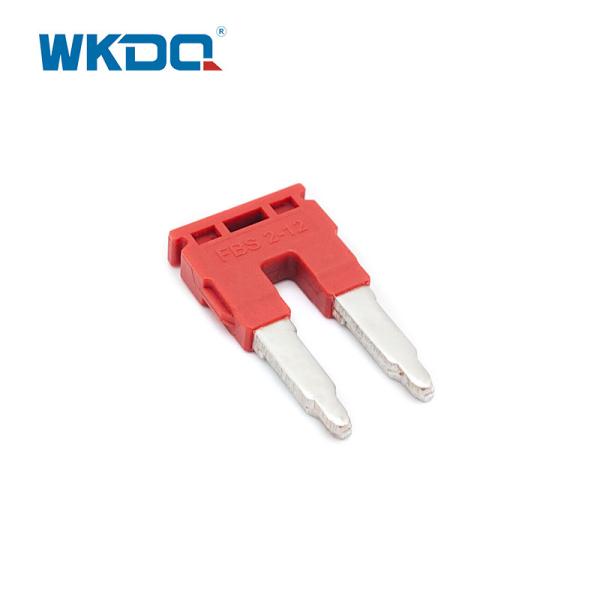

FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring
FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring
FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring
FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring
FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring
FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring
FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring
FBS 2-12 Jumper Push In Bridge Terminal Block JPT 16 For Spring
Specifications
Brand Name :
WKDQ
Model Number :
FBS 2-12
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Model number :
FBS 2-12
Manufacturer :
Wonke Electric
Product logos :
WOKDQ
Match with :
JST/JPT 16 Terminal block
Country of manufacturer :
China
Description

FBS 2-12 Jumper /Plug In Bridge for Spring /Push in Terminal Block JST/JPT 16

1. DESCRIPTION

FBS 2-12 Plug in bridge for JST 16 and JPT 16 terminal blocks.

The spring-loaded terminals are joined to a power contact.

Stable and low resistance.

Easy to operate.

Saving space,time and labor.

Corrosion-proof contact point.

Reliable gas-tight connection.

All types of materials are guaranteed in quality.

Made from nickel plated brass material with flaming retarding nylon PA66.

Two potentials can be routed in parallel through a terminal point in the double function shaft.

Simply disconnect individual contact tabs from the standard bridge, and bridging between non-adjacent terminal blocks is established.

The contact points can also be marked.

2.TECHNICAL PARAMETERS

Fixed bridge Model No. Matched Terminal Model No.
FBS10-3.5 JPT 1.5/S
JPT 1.5/S-TW
JPT 1.5/S-QU
JPTTB 1.5/S
FBS 10-4 JST 1.5
FBS 2-5, JST/JPT 2.5
JST/JPT 2.5-TW
JST/JPT 2.5-QU
JSTTB/JPTTB 2.5
JST/JPT 2.5-3L
JPT2.5-PE/L/N
FBS 3-5,
FBS 4-5,
FBS 5-5,
FBS 10-5,
FBS 2-6, JST/JPT 4
JST/JPT 4-TW
JST/JPT 4-QU
JSTTB/JPTTB 4
JBPT1.5
FBS 3-6,
FBS 4-6,
FBS 5-6,
FBS 10-6
FBS 2-8 JST / JPT 6
FBS 3-8
FBS 4-8
FBS 5-8
FBS 10-8
FBS 2-10 JST 10/ JPT 10
FBS 2-12 JST 16/ JPT 16
FBS 2-16 JUT 35
3.RELATED PRODUCTS

  • Feed Through Terminal Block

  • High Current Terminal Connector

  • DIN Rail Fuse Terminal Block

  • Screw Ground Terminal Block

  • UK Terminal End Clamp

  • DIN Rail Spring Terminals
