Specifications
Brand Name :
WONKEDQ，WKDQ
Model Number :
PTTB 1.5/S-PV
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
50 PCS
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
box
Model No. :
PTTB 1.5/S-PV
Color :
Grey,Blue, other color can be customized
Connection method :
Push-in connection
Country of origin :
China
Standard :
IEC 60947-7-1
Material :
Flame resistant Nylon PA66 V0
Description

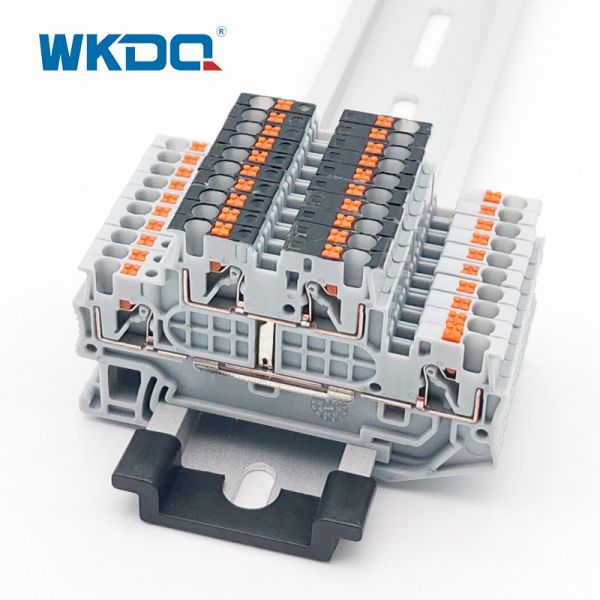

JPTTB 1.5/S-PV Double Level Terminal Block With Equipotential Bonder 1.5 mm

1. DESCRIPTION:

Double Level compact design saving space. Light weight, saving shipping costs .Connecting wire push in directly without tools, , easily and quickly,Insert forces reduced by 50%. V0 Flame resistant PA66 material and copper conductor.

it is suitable for various applications.

1.Non-screw and tool- Free design and the push in modular terminal block and the direct push-in connection enable easy

2.Convenient insertion, thanks to 50% lower insertion force.

3. Safe wiring and operation, thanks to the color-coded push button

4.The push button permits easy conductor release using any type of tool, without direct contact with live parts.

Technical Parameters

Model No. JPTTB 1.5/S-PV
Color Grey,Blue, other color can be customized
Length/Height/Wide (mm) 66*41*3.5
Connection method Push-in connection
Material Flame resistant Nylon PA66 V0
Rated Voltage/Current 500V/16A
Cross section, solid/soft Cable 0.14-1.5mm²
Conductor Size 26-16AWG
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WKDQ, LOGO can be customized
Packing Detail 6.4g/pc, 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
Place of origin ZheJIang, China
