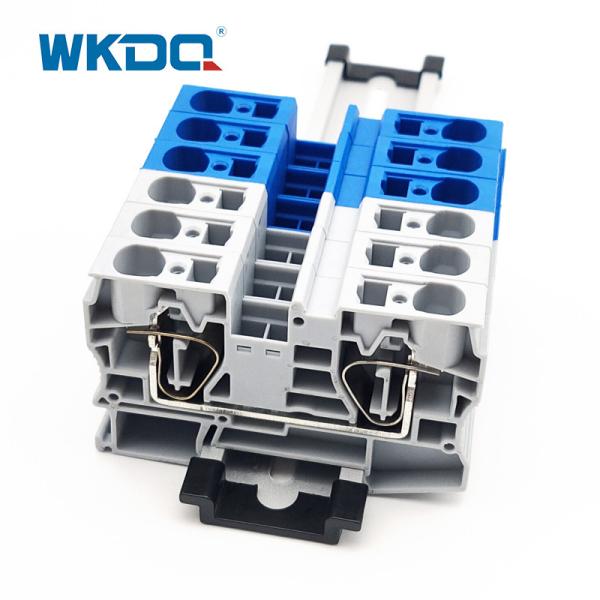

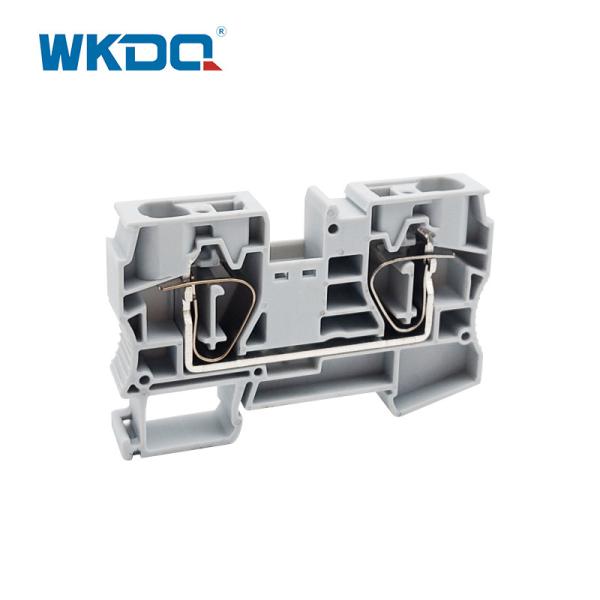

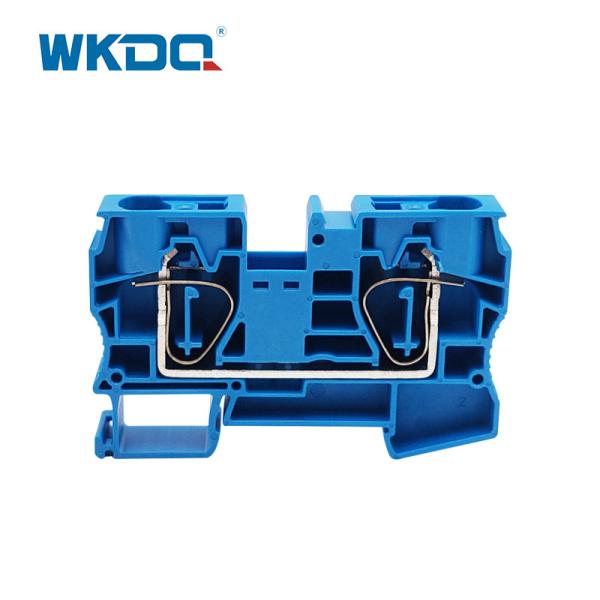

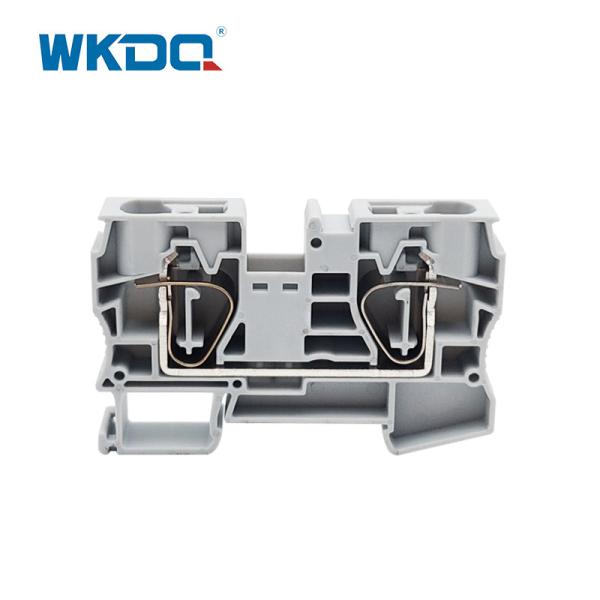

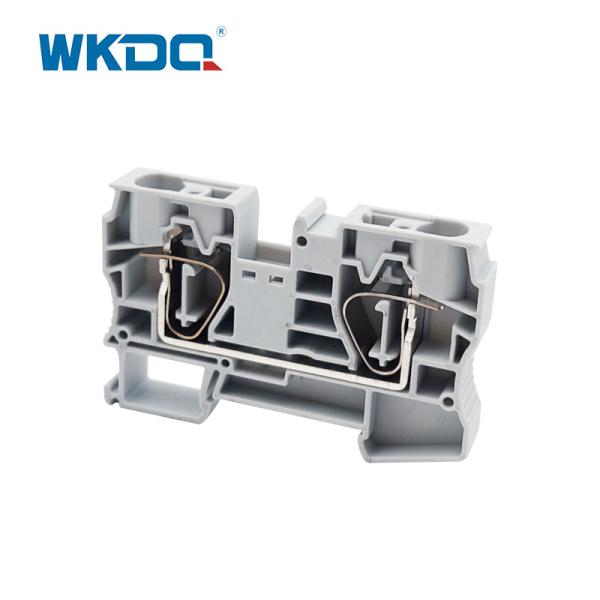

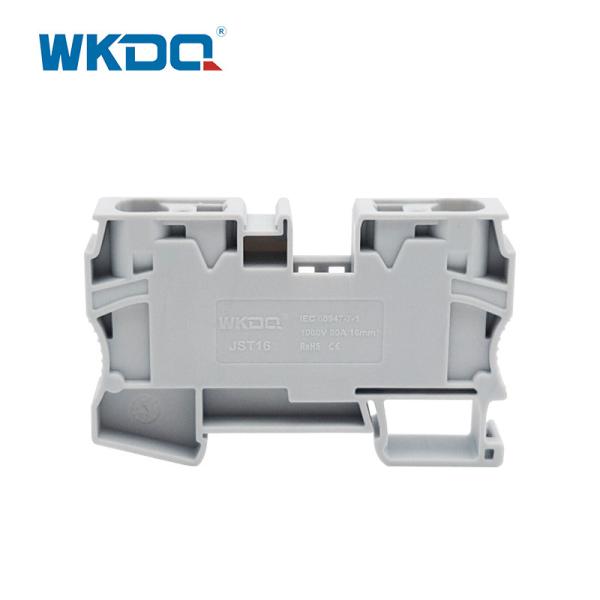

JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
JST 16 Spring Clamp Terminal Block Din Rail TB 25 Mm²
Specifications
Brand Name :
WKDQ
Model Number :
JST 16
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
CE/RoHS/CQC/ISO 9001
Delivery Time :
2-7 days
Packaging Details :
Box
Model No. :
JST 16
Conductor material :
Brass conductor covered by Tin
Cross section,solid cable :
0.2-25 mm²
Cross section,soft cable :
0.2-16 mm²
Packing unit :
40PCS/BOX,800PCS/CTN
Approval by :
CE/RoHS/CQC/ISO 9001
Description

JST 16 Terminal Block Din Rail TB Spring Clamp Terminal Block

1. DESCRIPTION

The spring-cage connection terminal block reduce effort and conductor preparation time with spring mode. With the compact design and front entry way, up to 15% space saving the cabinets. The connect conductors that are vibration resistant, gas-tight and have long-term stability with the spring-loaded conductor contacting. Depending upon terminal block layout, wires can be clamped by spring force in position using screwdriver.

High safety.

Easy to operate.

Multiple identification bits.

Corrosion-proof contact point.

Stable and low contact resistances.

Reliable gas-tight connection.

All types of materials are guaranteed in quality.

Made from durable Nylon PA 66, Stainless steel springs and nickel plated bar.

Avoid mounting and wiring errors thanks to the WonkeDQ design with flat and visible marking area.

With universal foot which can be installed on Din Rail NS 35.

Save installation time with our snap on screwless ground terminal blocks,end stops, plugs and jumpers.

2.TECHNICAL PARAMETERS

Model Number JST 16
Color Grey, Blue, other color can be customized
Length/Height/Wide (mm)
L80.2/H51/W12.2 mm
Connection method Spring-cage connection
Material Nylon PA66
Rated Voltage/Current 1000V 90A
Cross section, solid/soft Cable
0.2-25mm²/0.2-16mm²
Conductor Size 16-6 AWG
Mounting Type NS 35/7.5
International Standard IEC 60947-7-1
Brand Customized logo are supported
Packing method 26g/pc, 40PCS/BOX, 800PCS/CTN
Certificates CE/RoHS/CQC/ISO 9001
