Heavy Duty Connector / Aviation Connectors Side Entry 2.5mm²
Heavy Duty Connector / Aviation Connectors Side Entry 2.5mm²
Heavy Duty Connector / Aviation Connectors Side Entry 2.5mm²
Heavy Duty Connector / Aviation Connectors Side Entry 2.5mm²
Heavy Duty Connector / Aviation Connectors Side Entry 2.5mm²
Heavy Duty Connector / Aviation Connectors Side Entry 2.5mm²
Heavy Duty Connector / Aviation Connectors Side Entry 2.5mm²
Heavy Duty Connector / Aviation Connectors Side Entry 2.5mm²
Heavy Duty Connector / Aviation Connectors Side Entry 2.5mm²
Heavy Duty Connector / Aviation Connectors Side Entry 2.5mm²
Specifications
Brand Name :
WKDQ
Model Number :
WHA
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
Zhejiang , China
MOQ :
1PC
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Model No. :
WHA
Housing material :
STEEL+PLASTIC
Place of origin :
Zhejiang , China
Description

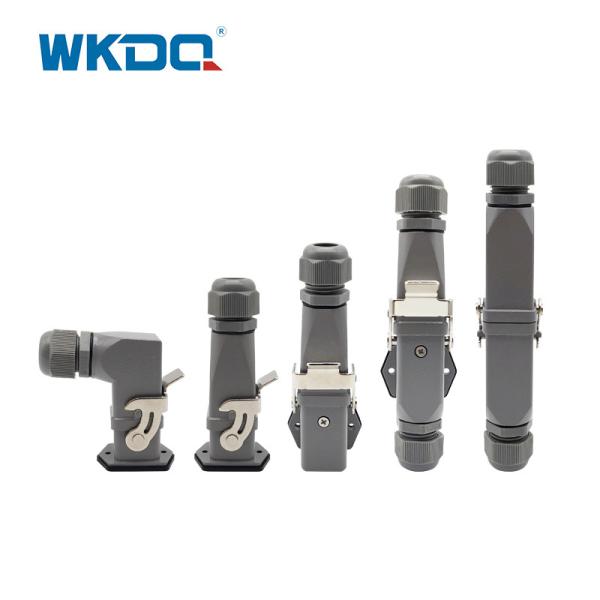

WHA Side Entry Heavy Duty Connector /Aviation Connectors

With exceptional performance in harsh environment, With metal housing protect the Famel and male connect from wind, sand, dust or water.


Voltage/Current: 500V/16A
Surface: Sliver-plated
Contact resistance: ≤1m Ω
Cross section: 1.0-2.5mm² (AWG 18-14) For 4/5 contacts
0.14-4.0mm² (AWG 26-12) For 6/8 contacts

No.PART NO.Order No.Entry SideNumber of contactDescriptionWater-proof connector
1WHA04D100506005Top entry43+1groundPG11
2WHA05D100506006Top entry54+1groundPG11
3WHA06D100506007Top entry65+1groundPG11
4WHA07D100506008Top entry87+1groundPG11
5WHA04C100506001Side entry43+1groundPG11
6WHA05C100506002Side entry54+1groundPG11
7WHA06C100506003Side entry65+1groundPG11
8WHA07C100506004Side entry87+1groundPG11
9WHA04W100506009Horizontal43+1groundPG11
10WHA05W100506010Horizontal54+1groundPG11
11WHA06W100506011Horizontal65+1groundPG11
12WHA07W100506012Horizontal87+1groundPG11
13WHA04WD100506013Horizontal Butt43+1groundPG11
14WHA05WD100506014Horizontal Butt54+1groundPG11
15WHA06WD100506015Horizontal Butt65+1groundPG11
16WHA07WD100506016Horizontal Butt87+1groundPG11
17WHA04DJ100506013Docking43+1groundPG11
18WHA05DJ100506014Docking54+1groundPG11
19WHA06DJ100506015Docking65+1groundPG11
20WHA07DJ100506016Docking87+1groundPG11
