Specifications
Brand Name :
WKDQ
Model Number :
JPTTB 4-PV
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
box
Model No. :
JPTTB 4-PV
Color :
Grey,Blue, other color can be customized
Connection method :
Push-in connection
Country of origin :
China, Zhejinag
Standard :
IEC 60947-7-1
Material :
V0-Flame resistant Nylon or PA66
Description

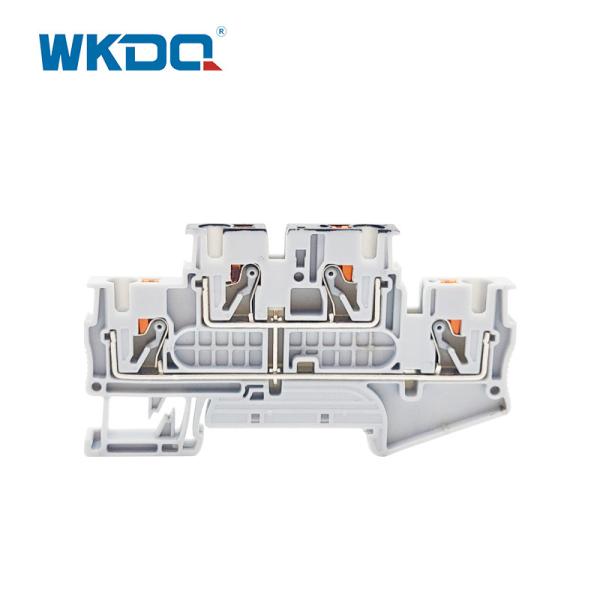

JPTTB 4-PV Din Rail Feed Through 2 Level Terminal Block with equipotential bonder

1. DESCRIPTION:

With Push in connection technology has been tested and approved by CE, Rohs, CQC.

Tool-Free, Time and Double Level space saving design of the push in erminal block and the direct push-in connection enable easy.

Convenient insertion, thanks to 50% lower insertion force.

Safe wiring and operation, thanks to the color-coded push button.

The push button permits easy conductor release using any type of tool, without direct contact with live parts.

Technical Parameters

Model No. JPTTB 4-PV
Color Grey,Blue, other color can be customized
Length/Height/Wide (mm) 84.3/ 46 /6.2
Connection method Push-in connection
Material Flame resistant Nylon PA66 V0
Rated Voltage/Current 500V/30A
Cross section, solid/soft Cable 0.2-6 mm²/0.2-4 mm²
Conductor Size 24-11AWG
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WKDQ LOGO can be customized
Packing Detail 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
