35mm Screw Type Din Rail 2 Level Terminal Block With Equipotential Bonder
35mm Screw Type Din Rail 2 Level Terminal Block With Equipotential Bonder
35mm Screw Type Din Rail 2 Level Terminal Block With Equipotential Bonder
35mm Screw Type Din Rail 2 Level Terminal Block With Equipotential Bonder
35mm Screw Type Din Rail 2 Level Terminal Block With Equipotential Bonder
35mm Screw Type Din Rail 2 Level Terminal Block With Equipotential Bonder
35mm Screw Type Din Rail 2 Level Terminal Block With Equipotential Bonder
35mm Screw Type Din Rail 2 Level Terminal Block With Equipotential Bonder
35mm Screw Type Din Rail 2 Level Terminal Block With Equipotential Bonder
35mm Screw Type Din Rail 2 Level Terminal Block With Equipotential Bonder
35mm Screw Type Din Rail 2 Level Terminal Block With Equipotential Bonder
35mm Screw Type Din Rail 2 Level Terminal Block With Equipotential Bonder
Specifications
Brand Name :
WONKEDQ
Model Number :
JMBKKB 2.5-PV
Certification :
CE, RoHs, CQC,etc
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Type No. :
JMBKKB 2.5-PV
Conductor Data :
24-12 AWG
Product Material :
Anti-Flaming Nylon PA66, Nickel plated brass conductor
Product Color :
Grey, Blue, Red other color can be customized
Logotype :
WonkeDQ, LOGO can be customized
Connection Mode :
Screw Connection
Description

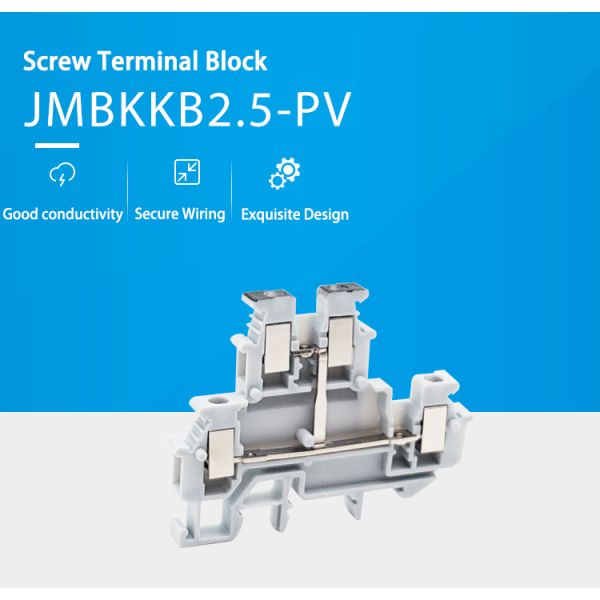

JMBKKB 2.5-PV Screw Connecting 2 Level Terminal Block With equipotential bonder

1. DESCRIPTION

Double levels terminal blocks, fixed bridge can be used on both levels. Space saving thanks to compact design;

Space-saving and cost-saving design.

Stable and low contact resistances.

All types of materials are guaranteed in quality.

Made from In V0 flaming resisitant PA 66 with brass conductor and pressure house.

Can marking identification tags possible at both levels.

Suitable for broad range of cross-section and types of wires.

With universal foot which can be installed on Din Rail NS 35.

All types of accessories: End cover, End Bracket, Partition plate, Marking holder, fixed bridge, insertion bridge, Separating plate, etc.

2.TECHNICAL PARAMETERS

Model No. JMBKKB 2.5-PV 2 Levels Terminal Blocks
Color Grey, Blue, Red, other color can be customized

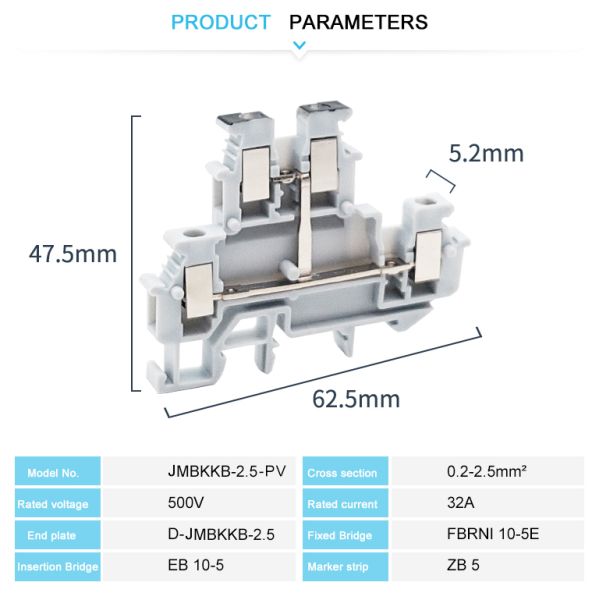

Length/Height/Wide (mm) 62.5/47.5/5.2
Connection method Connecting by screw tighten
Material Nylon66/ PA66
Rated Voltage/Current 500V/32A
Cross section, solid/soft Cable 0.2-4 mm² / 0.2-2.5 mm²
Conductor Size 24-12 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO WKDQ, LOGO can be customized
Packing Detail 10.9 g/pc, 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
