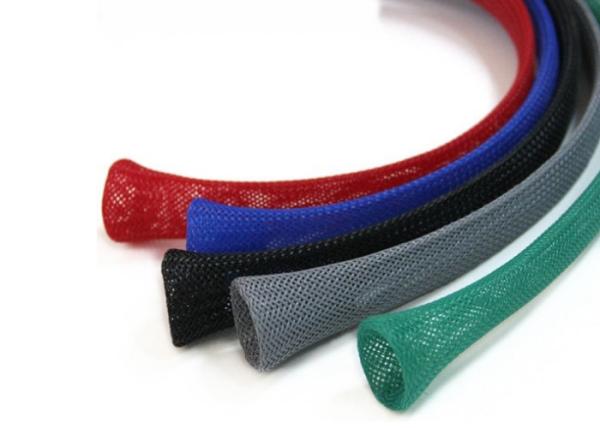

Pet Multicolor Electrical Braided Sleeving For Expandable Speaker Cable Harness

PET Expandable Tube is braided from polyethylene terepthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.

Application of braided sleeving

It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.

Product feacture:

1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.

Technical data:

1. Material: Polyester
2. Operating range: - 50C - +150C
3. Melt Point: 250C+-5C
4. Flammability: VW-1
5. Standard colour: Black and grey. Other colors upon request.
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife

Notes:

1. Nominal size indicates the flat width.

2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3. This sleeving has expandable character, the following sizes are covered by the nearest:

16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4. Special packing, sizes, and colors can be supplied upon request.

5. All numerical data are average or typical values, not including customized sizes.

Dimensions:

Notes:

1. Nominal size indicates the flat width.

2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4. Special packing, sizes, and colors can be supplied upon request.

5. All numerical data are average or typical values, not including customized sizes.
