Customized Color Heat Resistant Wire Sleeve Flame Retardant For Cable Entertainment
Customized Color Heat Resistant Wire Sleeve Flame Retardant For Cable Entertainment
Customized Color Heat Resistant Wire Sleeve Flame Retardant For Cable Entertainment
Customized Color Heat Resistant Wire Sleeve Flame Retardant For Cable Entertainment
Specifications
Brand Name :
Huiyunhai
Model Number :
HYH- C
Certification :
UL, RoHS, REACH, SGS, ISO
Place of Origin :
Shenzhen of China
MOQ :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3 million meters per month
Packaging Details :
standard export carton
Product name :
Pet Expandable Clean Cut Braided Sleeving
Width :
custom
Color :
optional
Feature :
Flame retardant
Melt Point :
250°C±5°C
Usage :
Cable Entertainment
Price :
Negotiable
Description

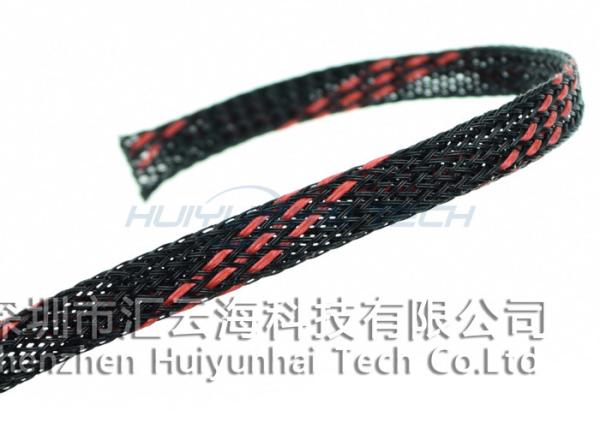

1/ 2'' Cold Non- Fray Pet Expandable Clean Cut Braided Sleeving For Cable Protection

Expandable clean cut sleeving is braided by environment-friendly polyester monofil. (PET,PA6,PA66,PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.

Technical data of braided sleeves

Material: Polyester
Working temperature: -50℃~+150℃
Melting point: 240±10℃
Flammability: VW-1
Color: Black and grey
Cutting tool: Scissors
Approval:UL, RoHS

Clean cut sleeving can be cut with a common scissors without obvious fray. It has some more advantages than standard polyester sleeving , softer and easier to be used on the outdoor field where the power or a hot knife could not be available. It also provides the same excellent protection of anti-abrasion as standard polyester sleeving.


Application:

Outdoor field if the hot knife is not available, for example when installing telecom equipment installation in mountain areas.

Part 1--Advantage:

1. Can be cut by scissor and not fray
2.. Light Weight & Flexible
3. Abrasion Resistant
4. Flame retardant
5. perfect for field

Part 2--Introduce

1. Flame-retardant and halogen-free.
2. Can be cut with a common scissors without obvisous fray.
3. Softer and easier to be use on the outdoor field .
4. It offers durable abrasion resistance in a wide range of industrial applications.
5. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
6. Totally expanded the sleeving can reach at least one point five times than the initial dimension.


Detailed Description

Model Number:Clean Cut Expandable Sleeving
Material:Polyester (PET) & Polyamide ( PA ) & Polypropylene (PP)
Working Temperature:-50~150C
Melting point:250°C±5
Flame resistant grade:UL VW-1
Usage:Expandable sleeving is widely used in bounding and protecting of electrical cables, automobile and aviation sectors.
Color:Black, Grey, Red, Yelllow, Green, White, Clear, Blue, Purple, Pink etc
Yarn Number:One, two, three, four


Dimensions of braided sleeves

Nominal size (W)Part No.Expandable RangPacking (L)
InchmmMin.(I) mmMax.(O)mmStandard spool(m)
1/8"3CC-00315500
1/4"6CC-00638500
5/16"8CC-008510350
3/8"10CC-010712350
1/2"12CC-012814300
5/8"16CC-0161018250
3/4"19CC-0191423200
1"25CC-0251828200
