Specifications
Brand Name :
HYH Tech
Model Number :
HYH-107
Certification :
UL, RoHS, SGS, REACH, ISO, IATF16949
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T 100% advanced payment
Supply Ability :
5000000 meters per month
Delivery Time :
7 working days
Packaging Details :

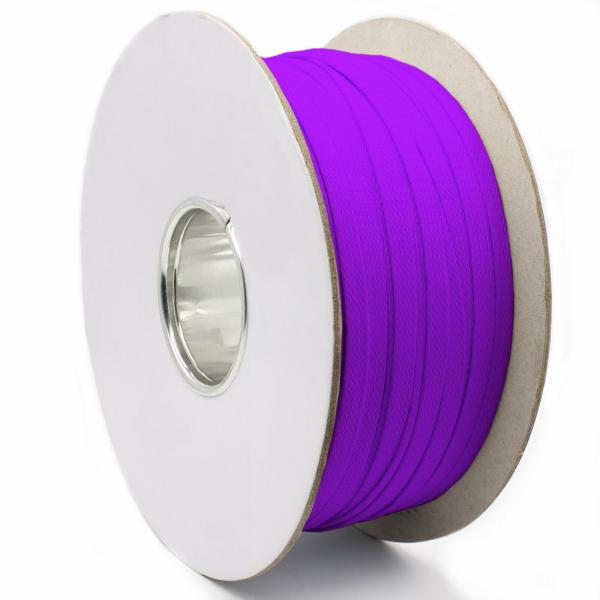

100m/spool, with standard master carton
Material :
Recyclable PET
Size :
1mm-150mm
Color :
Purple
Features :
flexible and abrasion resistance
Braiding pattern :
customized
LOGO :
customized
Packing :
100m/spool, with master carton
Cutting tool :
hot knife cutting
Description

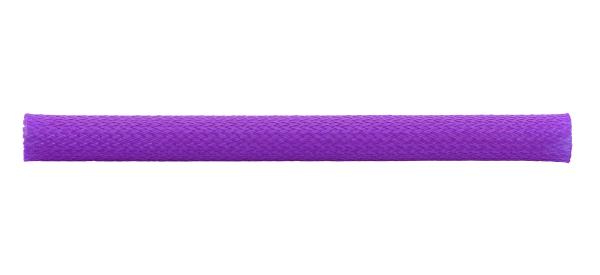

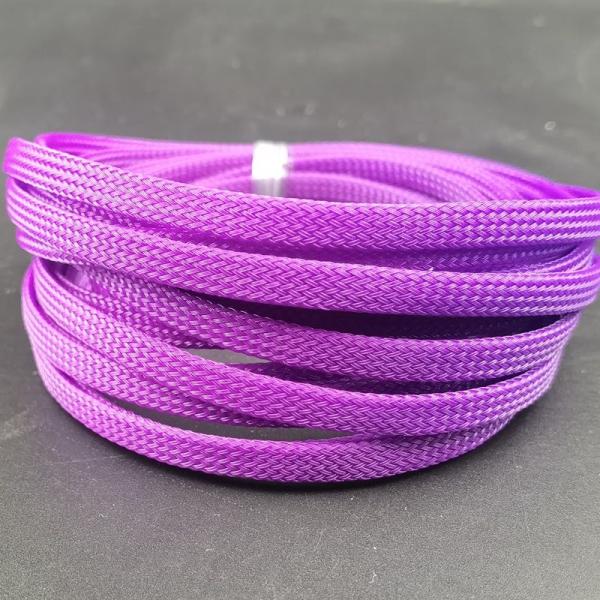

Purple Color Abrasion Resistance Cable Sleeve PET Expandable Braided Sleeving Flexible Wire Loom

  • Technical data:

Material: Polyester

Operating range: -50°C - +150°C

Melt point: 240±10°C

Flammability: UL VW-1

Standard colors: Purple

Certificate: IATF16949, UL, RoHS, REACH, Halogen Free

Cutting tool: hot knife

Product Parameter:

Product Sizes
Size Part Number Expansion Max Expansion Min Bulk Spool Shop Spool Lbs / 100'
1/16" HYH-BS-2 3/32" 3/64" 1,000' 250' 0.22
1/8" HYH-BS-3 1/4" 3/32" 1,000' 225' 0.2
1/4" HYH-BS-6 7/16" 1/8" 1,000' 200' 0.3
5/16" HYH-BS-8 15/32" 5/32" 500' 150' 0.5
3/8" HYH-BS-10 1/2" 3/16" 500' 125' 0.57
7/16" HYH-BS-11 5/8" 7/32" 500 125 0.68
1/2" HYH-BS-12 3/4" 1/4" 500' 100' 0.77
5/8" HYH-BS-16 1" 3/8" 500' 100' 0.95
3/4" HYH-BS-24 1 1/4" 1/2" 250' 75' 1.2
1" HYH-BS-19 1 5/8" 5/8" 250' 65' 1.34
1 1/4" HYH-BS-32 1 3/4" 3/4" 250' 50' 1.6
1 1/2" HYH-BS-38 2 1/8" 1" 200' 40' 1.96
1 3/4" HYH-BS-45 2 3/4" 1 1/4" 200' 30' 2.45
2" HYH-BS-50 3 1/2" 1 1/2" 200' 50' 2.6
2 1/2" HYH-BS-63 3 5/8" 1 3/4" 200' 50' 3.8
3" HYH-BS-76 4 3/4" 2 1/2" 100' 50' 3.8
1,Other specifications can also be customized.

2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm.
The larger the size, the larger the margin of error.

3,Please inquire for details according to each specification.

HYH Cable sleeving has many colors and patterns for selection. it is made of Polyester monofilament (PET), with flexible, expandable, flame resitance and abrasion resistance features, it is used in cable protection and management, automotive cables, electronics cables and wire harness, marine and industrial wire harnessing applications. With colorful and many designs of patterns, the cable sleeve can decorate the cables and classify the cables easily. With the expandability, HYH cable sleeve can be used for quick and easy installation over large connectors and long runs.PET can be found in applications ranging from small office/home office to high tech wire and cable harnesses.The wide range of available colors and sizes allows easy and systematic color coding in complex wiring and cabling schemes. Same quality as Flexo PET from techflex.

Main Properties:

1, With certificate of UL: E252099
2. Flame-retardant and halogen-free.
3. It offers durable abrasion resistance in a wide range of industrial applications.
4. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.

5, The quality is as good as Techflex Flexo PET, Flexo F6...

PET Expandable Abrasion Resistant Wire Sleeve For Braided Flexible Loom

PET Expandable Abrasion Resistant Wire Sleeve For Braided Flexible Loom

PET Expandable Abrasion Resistant Wire Sleeve For Braided Flexible Loom

PET Expandable Abrasion Resistant Wire Sleeve For Braided Flexible Loom

FAQ:

Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.

Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?
A:
We can provide free samples, the customers just need to pay the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.

Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
