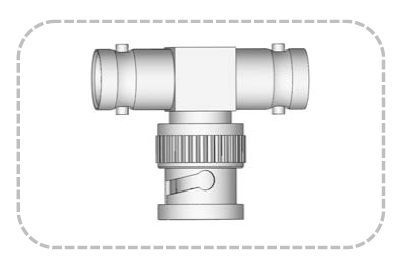

Nickel / Gold Plated BNC T Connector Double Female To Male Type Adaptor
Nickel / Gold Plated BNC T Connector Double Female To Male Type Adaptor
Specifications
Brand Name :
SINOWELL
Model Number :
VK20069
Certification :
RoHs; CE
Place of Origin :
Jiangsu,China(Mainland)
MOQ :
5000pcs
Price :
$0.28/pc--$0.5/pc
Payment Terms :
D/P; T/T; Western Union
Supply Ability :
10000pcs per day
Delivery Time :
Depend on your quantity
Packaging Details :
polybag,According customer’s request
Type: :
BNC
Gender: :
female to male
Connector Material: :
Brass
plated: :
nickel or gold
Insulator: :
ABS
Description

Nickel / Gold Plated BNC T Connector Double Female To Male Type Adaptor

Specifications:

BNC Connector

1. reasonable price

2. manufacturer factory

3. We are able to supply various types of connector according to clients’ requirement

4. Samples can be supplied for testing (for free)

5. Tried order is available

6. in stock

Description:

T-type RF coaxial adapter connector with bnc male to double female

ELECTRICAL DATA
Impedance 50Ω
Frequency range (for connector interface) DC~4GHz
Dielectric withstanding Voltage (at sea level) 1500V rms, 50Hz (depending on cable)
Working voltage (at sea level) 500V rms, 50Hz (depending on cable)
Insulation resistance ≥ 5000 mΩ
Contact resistance centre contact≤1.5mΩ
outer contact: ≤ 1 mΩ
RF-leakage (between 2÷3 GHz) ≥55 dB
MECHANICAL DATA
Coupling nut torque 7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs
Coupling nut retention force ≥450N / 101.2 lbs
Contact captivation ≥27N / 6.1 lbs
Durability (matings) ≥500
ENVIRONMENTAL DATA
Temperature range -65°C to +165°C
MATERIAL DATA
Bodies Brass--Ni plating
Pin contacts Brass--Au / Ag plating
Socket contacts Copper--beryllium Au / Ag plating
Crimp ferrules Copper alloy--Ni plating
Insulator PTFE
Gaskets Silicone rubber

Nickel / Gold Plated BNC T Connector Double Female To Male Type Adaptor

Nickel / Gold Plated BNC T Connector Double Female To Male Type Adaptor

Competitive Advantage:

  1. Best quality and service for any orders.
  2. Every step of your order will be informed to you in time.
  3. Please feel free to tell us what's the problem you met anytime you need.

Applications:

RF

Shipping Details:

1. By air

Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to choose your suitable express company. It normally takes 3-7 days to arrive at your destination. Surcharge will be charged if your destination is remote area.

2. By sea

Shipments will be operated under FOB conditions.
